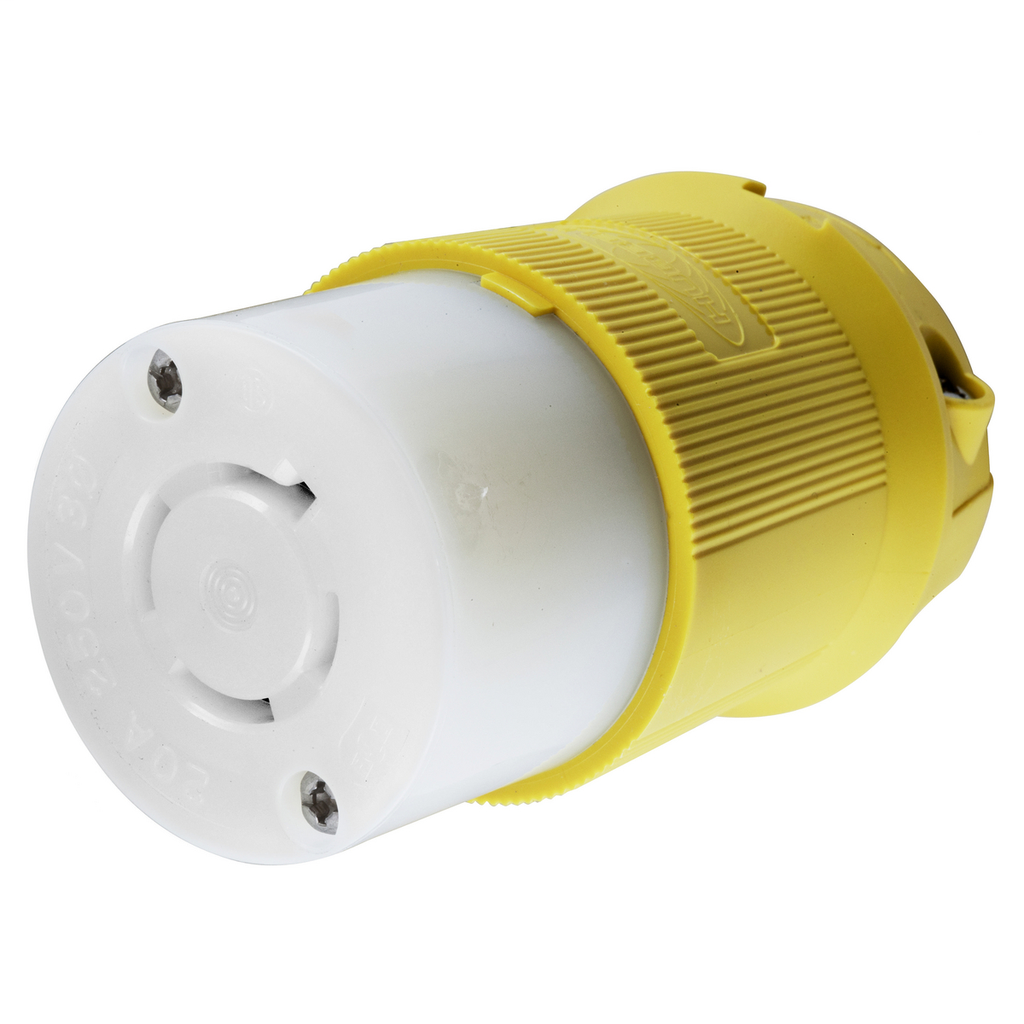

Hubbell Wiring Devices HBL24CM23 20 Amp 250 Volt 3-Pole 4-Wire NEMA L15-20R Yellow Locking Connector Body
$82.96/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL24CM23
North Coast Part # 210524

Features

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Yellow
  • Cord Range: 0.350"-1.150" (9-29)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 3
  • Insulation: Insulated Body
  • Item Type: 20A Corrosion Resistant Insulgrip® Connector
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Connector Body
  • UPC: 783585038506

Dimensions

  • Dimensions: 2.33 in x 2.33 in x 3.86 in
  • Display Size: Standard
  • Height: 3.86 in
  • Length: 2.33 in
  • Weight: 0.40 lb
  • Width: 2.33 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back Wired Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Three Phase
  • Voltage Rating: 250 VAC
  • Voltage Rating Description: 250 VAC

Conductor Related

  • Cable Range: 0.350 - 1.150 in
  • Number Of Wires: 4-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Listed to UL 498 | Fed.Spec. W-C-596 | Certified to CSA C22.2 No.42
  • Nema Rating: L15-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358503850
GTiN 00783585038506
Length 2.33 in
Width 2.33 in
Size 2.33 in x 2.33 in x 3.86 in
Color Yellow
Voltage 250 Volt
Type Insulated, Standard, 3-Pole
Material Composite
Number of Conductors 4-Wire Grounding
Conductor Size 12 - 10 AWG
Applications Heavy Duty Industrial
Height 3.86 in
Weight 0.40 lb
Connection Type Pressure Screw Terminal
Temperature Rating 75 C Maximum Continuous, -40 C Minimum Continuous without impact, -25 C with Impact
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Pressure Screw Terminal
Current 20 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Twist-Lock, Insulgrip
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Environmental Conditions Indoor Dry Unless Protected By Additional Means
