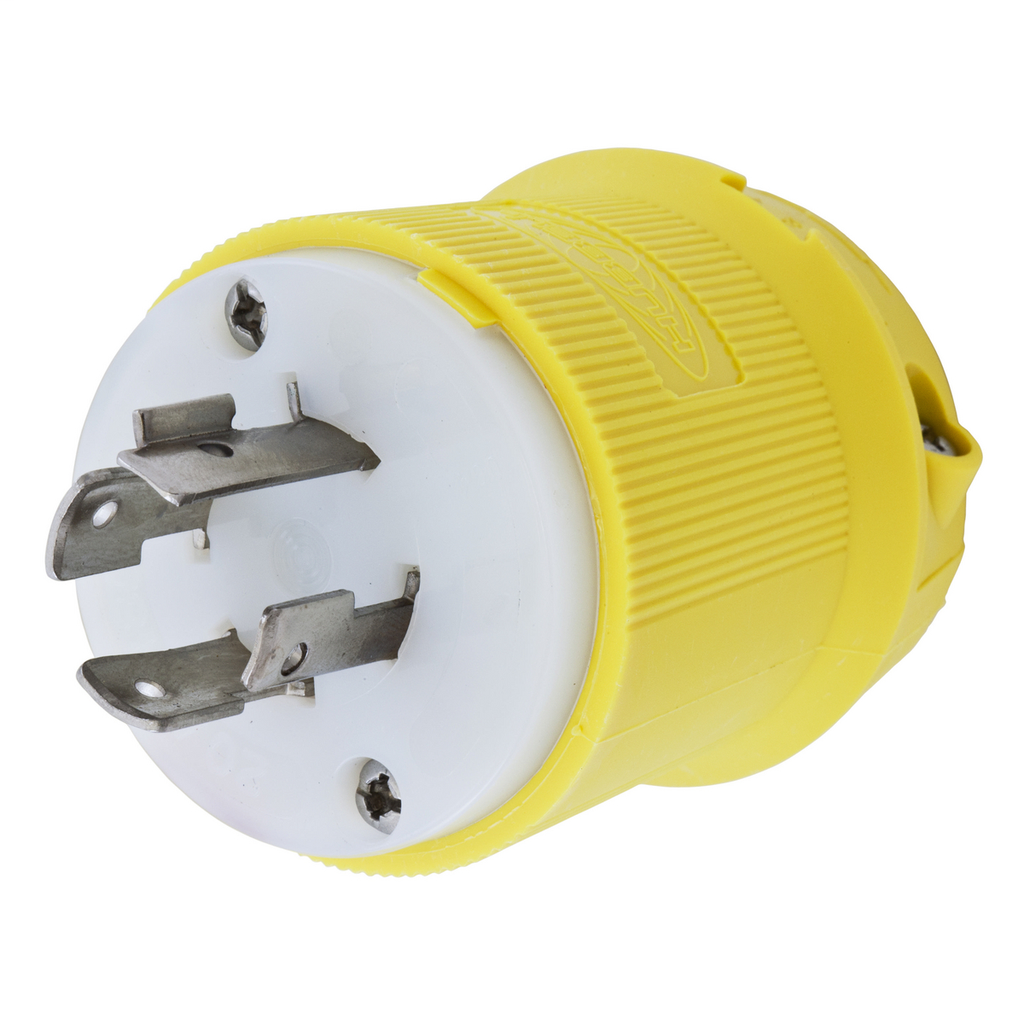

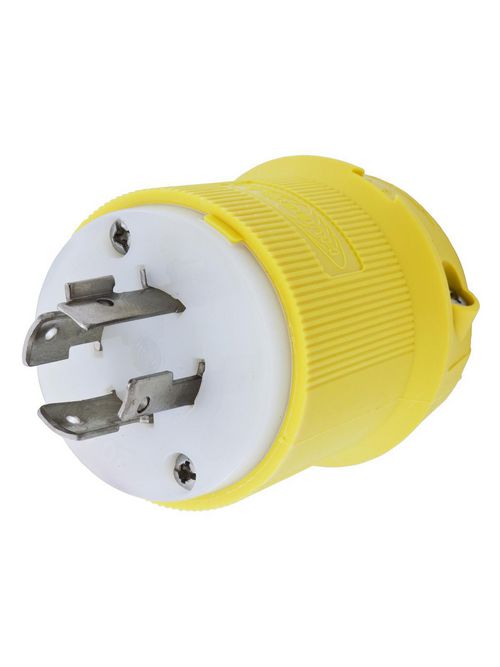

Hubbell Wiring Devices HBL24CM31 20 Amp 480 Volt 3-Pole 4-Wire NEMA L16-20P Yellow Locking Plug

$68.72/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Application: Extra Heavy Duty Industrial
Color: Yellow
Cord Range: 0.350"-1.150" (9-29)
Environmental Conditions: Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum: 5
Item Type: 20A Corrosion Resistant Insulgrip® Plug
Material: Nylon
Material - Mounting Hardware: Cord Mounted
Number Of Poles: 3-Pole
OEM Brand Name: Hubbell Wiring Device-Kellems
Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Type: Plugs
UPC: 783585038513

Industry Standard(s): Listed to UL 498 | Fed.Spec. W-C-596 | Certified to CSA C22.2 No.42
Nema Rating: L16-20P

UPC	78358503851
GTiN	00783585038513
Length	2.33 in
Width	2.33 in
Size	Standard Sized Product
Color	Yellow
Voltage	480 Volt
Type	Standard Sized, Marine Grade
Material	Nylon
Cord Type	Portable
Applications	Power Connection
Height	2.75 in
Weight	0.30 lb
Wire Size	14-10 AWG
Wattage	9,600 Watt
Family Brand Name	Hubbell Wiring Device Kellems
Carton Qty	10
TC Connection	Terminal Screws
Current	20 A
Number of Poles	3 Pole
Number of Wires	4
Sub Brand	Twist-Lock
Conductor Size	14-10 AWG
Mounting Type	Cord
Standard	Fed.Spec. W-C-596,CSA C22.2 No.42,UL 498
Environmental Conditions	Corrosion Resistant
