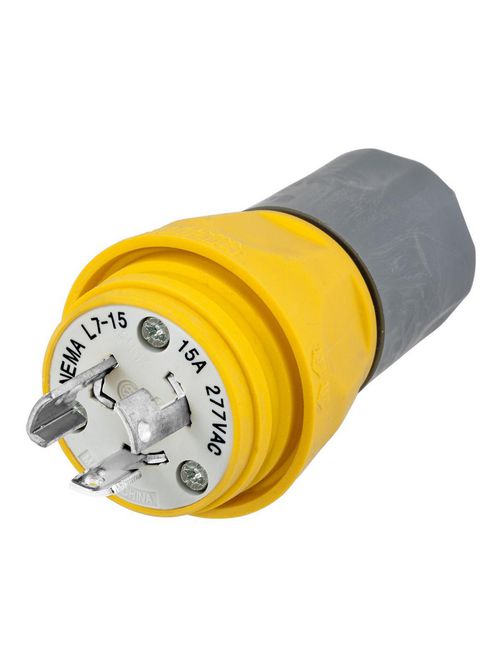

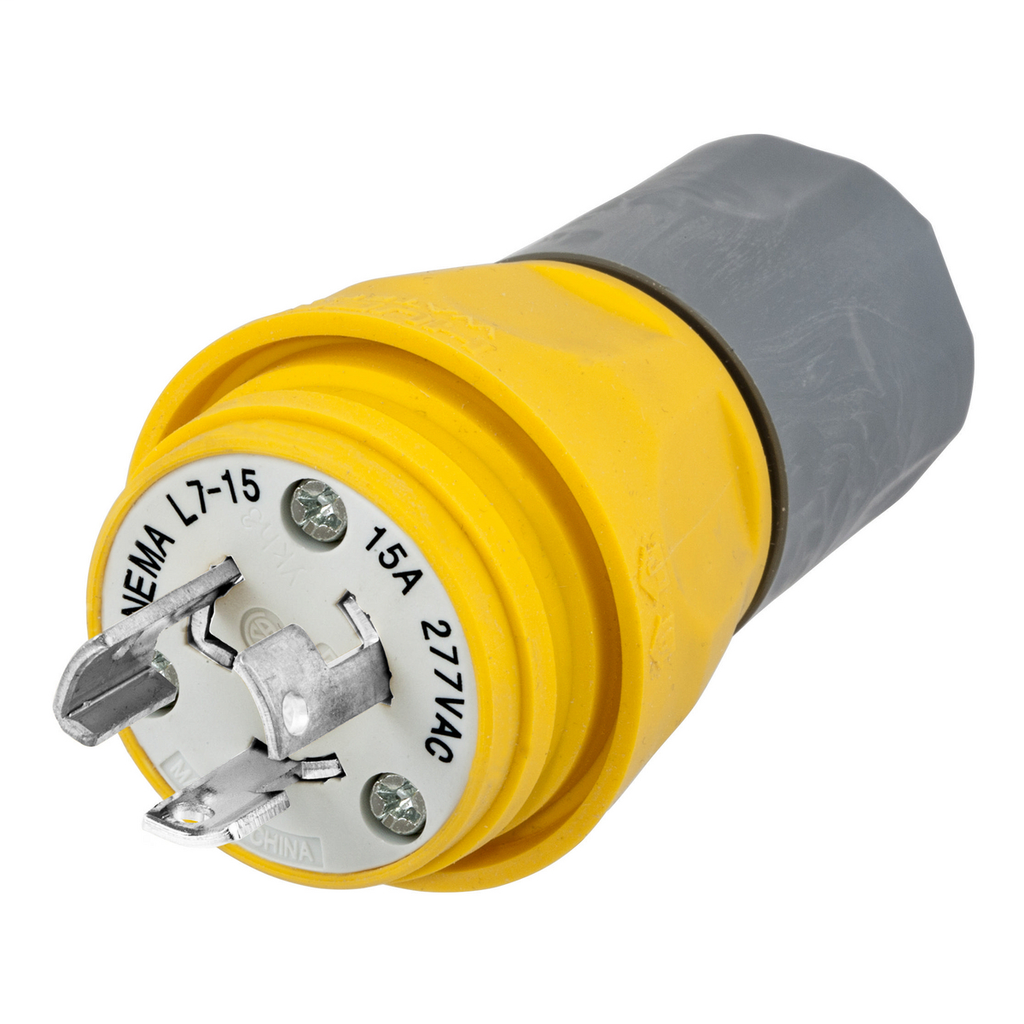

HWDK HBL24W34 PLUG, W/TIGHT, L7-15P
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$55.98/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL24W34
North Coast Part # 1352965

Features

  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 15 A
  • Dimensions: 1.85 in x 1.85 in x 3.21 in
  • Each - Height: 1.900 in
  • Each - Length: 9.000 in
  • Each - Width: 6.000 in
  • Height: 3.21 in
  • Industry Standard(s): Meets NEMA WD-1, WD-6 And ANSI Standards
  • Length: 1.85 in
  • Performance: Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous;Mechanical - Cord Accommodation - 0.375"-0.625" (9.5-15.9)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 15 A
  • Color: Yellow
  • NEMA Rating: L7-15P
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Size: 1.85 in x 1.85 in x 3.21 in
  • Standard: Meets NEMA WD-1, WD-6 And ANSI Standards
  • Type: Plugs
  • Voltage Rating: 277 VAC
  • Wire Size: 16/3 SJ to 10/3 SJ, 18/3 S to 12/3 S
  • Voltage Rating Description: 277 VAC
  • Width: 1.85 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358513123
Item Long Description Watertight Devices, Twist-Lock Plug, 15A, 277V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-15P, Yellow
GTiN 00783585131238
Length 1.85 in
Width 1.85 in
Size 1.85 in x 1.85 in x 3.21 in
Color Yellow
Voltage 277 Volt
Type Plugs
Material Elastomeric/Composite
Cord Type All Portable
Applications Industrial/Commercial
Height 3.21 in
Wire Size 16/3 SJ-10/3 SJ, 18/3 S-12/3 S
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminals
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Standard ANSI Standards,Meets NEMA WD-1,WD-6
Environmental Conditions Watertight
