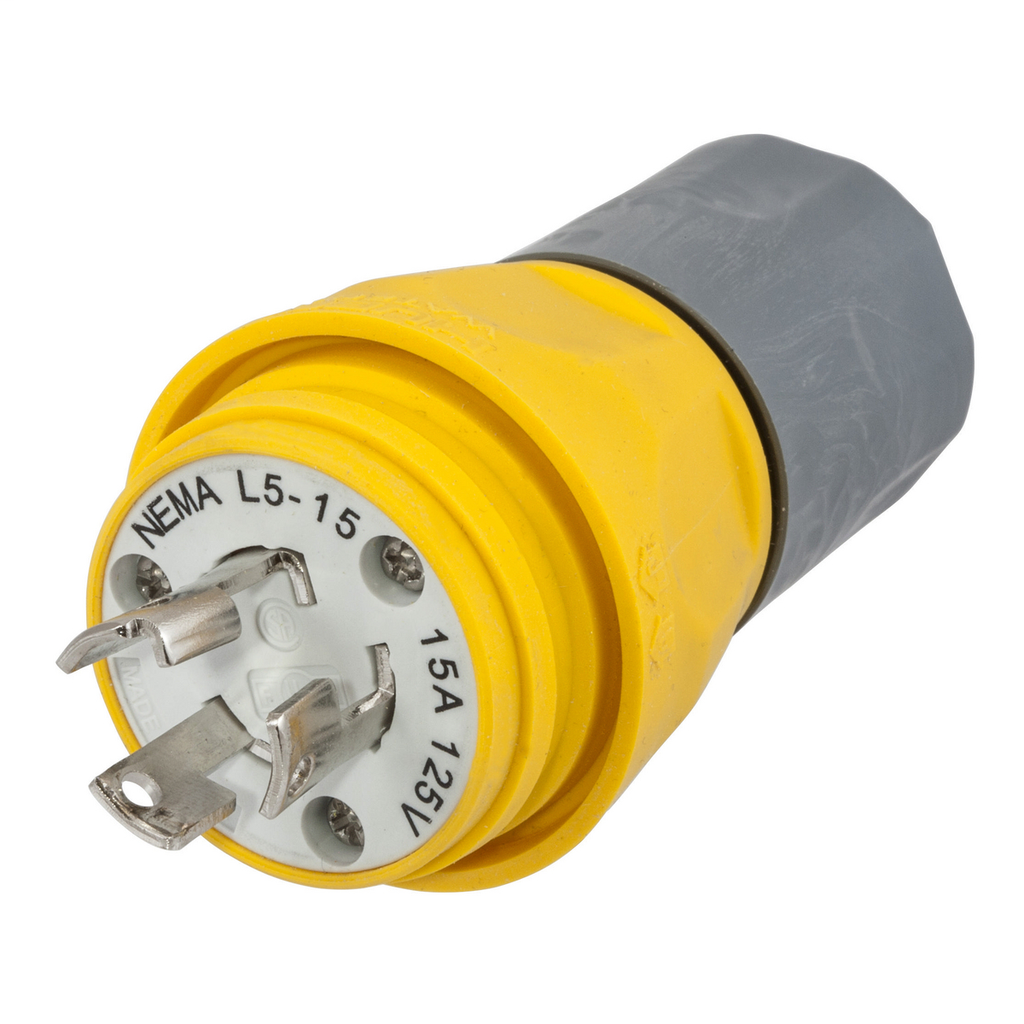

HCI HBL24W47A PLUG, W/TIGHT, L5-15P
$34.49/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL24W47A
North Coast Part # 1158373

Features

  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points

Specifications

General

  • Color: Yellow
  • Item Type: 15A Watertight Twist-Lock® Plug
  • Number Of Poles: 2-Pole
  • Performance: Electrical - Current Interrupting - Rated for current interruption per UL498 | Electrical - Dielectric Voltage - 2500V AC | Electrical - Max Working Voltage - As marked | Electrical - Temperature Rise - 30°C max per UL498 at rated current | Environmental - UV resistance - All exposed materials are UV stabilized | Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P | Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous | Mechanical - Cord Accommodation - 0.375"-0.625" (9.5-15.9)
  • Type: Plugs
  • UPC: 783585131245

Dimensions

  • Dimensions: 1.85 in x 1.85 in x 3.21 in
  • Height: 3.21 in
  • Length: 1.85 in
  • Width: 1.85 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Current / Amperage Rating: 15 A
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: 16/3 SJ to 10/3 SJ, 18/3 S to 12/3 S

Certifications and Compliance

  • Industry Standard(s): Meets NEMA WD-1, WD-6 And ANSI Standards
  • Nema Rating: L5-15P

Logistics

  • Carton Quantity: 25

Overview

UPC 78358513124
GTiN 00783585131245
Length 1.85 in
Width 1.85 in
Size Standard Sized
Color Yellow
Voltage 125 Volt
Type Standard, Non-Shrouded, Watertight
Material Thermoplastic Elastomer
Conductor Size 16/3 SJ - 10/3 SJ, 18/3 S - 12/3 S, 14-12 AWG
Cord Type Portable, SJ, S
Applications For Industrial/Commercial
Mounting Type Surface, Cord
Height 3.21 in
Wire Size 14-12 AWG
Temperature Rating -40 to 60 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 25
Grounding Yes
TC Connection Screw Terminals
Dielectric Strength 2500 VAC
Current 15 A
Blade Dimensions 3.21 in H
Cord Size 3/8 - 5/8 in
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock, Watertight
Standard ANSI Standards,Meets NEMA WD-1,WD-6
