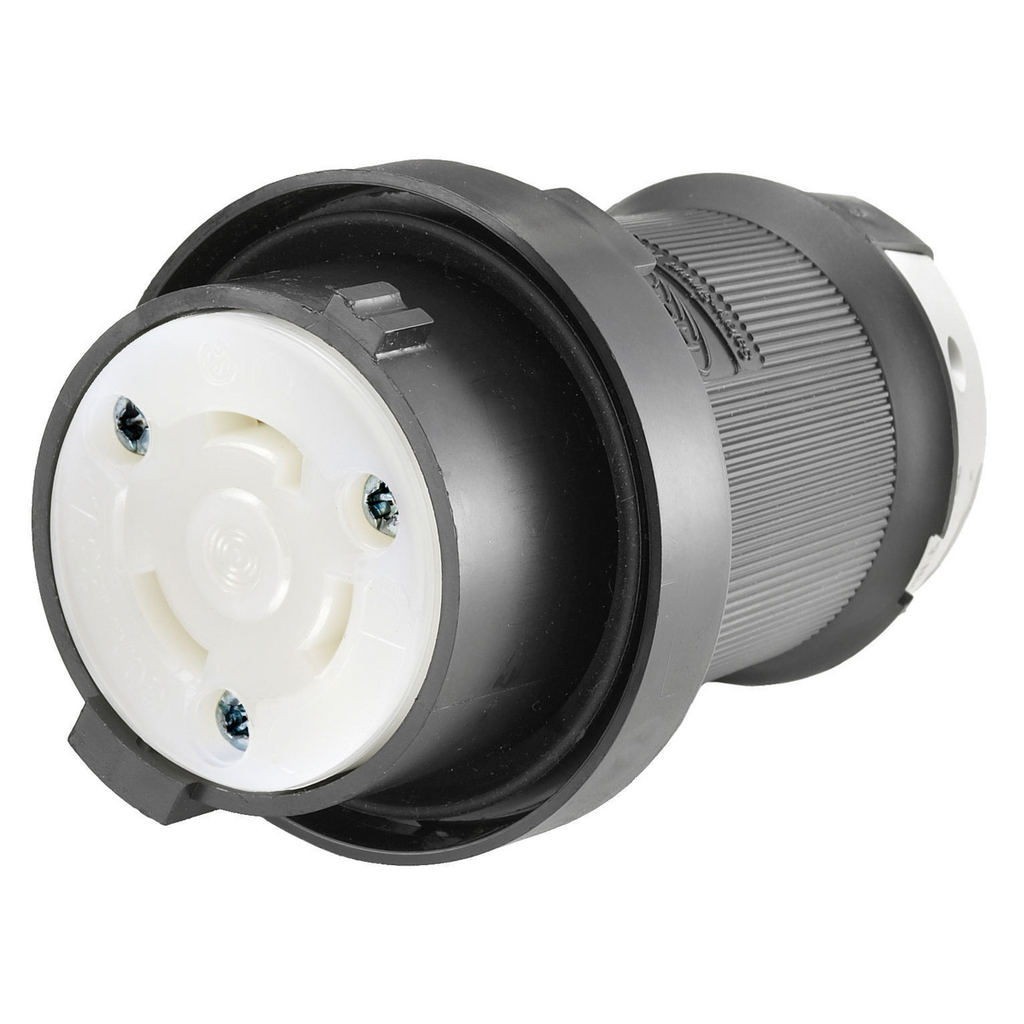

HCI HBL2613SR REVERSE SERVICE CONN
$154.81/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2613SR
North Coast Part # 1829507

Features

  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Superior cord grip design protects terminations from excess strain
  • UL Type 4X Environmental seal protects connection while in use.

Specifications

General

  • Horsepower - Maximum: 2
  • Item Type: 30A Watertight Safety-Shroud® Reverse Service Connector
  • Number Of Poles: 2-Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Connector Body
  • UPC: 783585458090

Dimensions

  • Dimensions: 2.94 in x 2.94 in x 5.5 in
  • Height: 5.5 in
  • Length: 2.94 in
  • Width: 2.94 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 VAC

Conductor Related

  • Cable Range: 0.350 - 1.150 in
  • Number Of Wires: 3-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L5-30R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358545809
GTiN 00783585458090
Length 2.94 in
Width 2.94 in
Size 2.94 in x 2.94 in x 5.5 in
Color Black/White
Voltage 125 Volt
Type Connector Body
Applications Power Connection
Height 5.5 in
Wire Size 12-8 AWG
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminals
Current 30 A
Number of Poles 2 Pole
Number of Wires 3-Wire Grounding
Sub Brand Twist-Lock Devices
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Environmental Conditions Indoor Only Unless Protected by Additional Means
