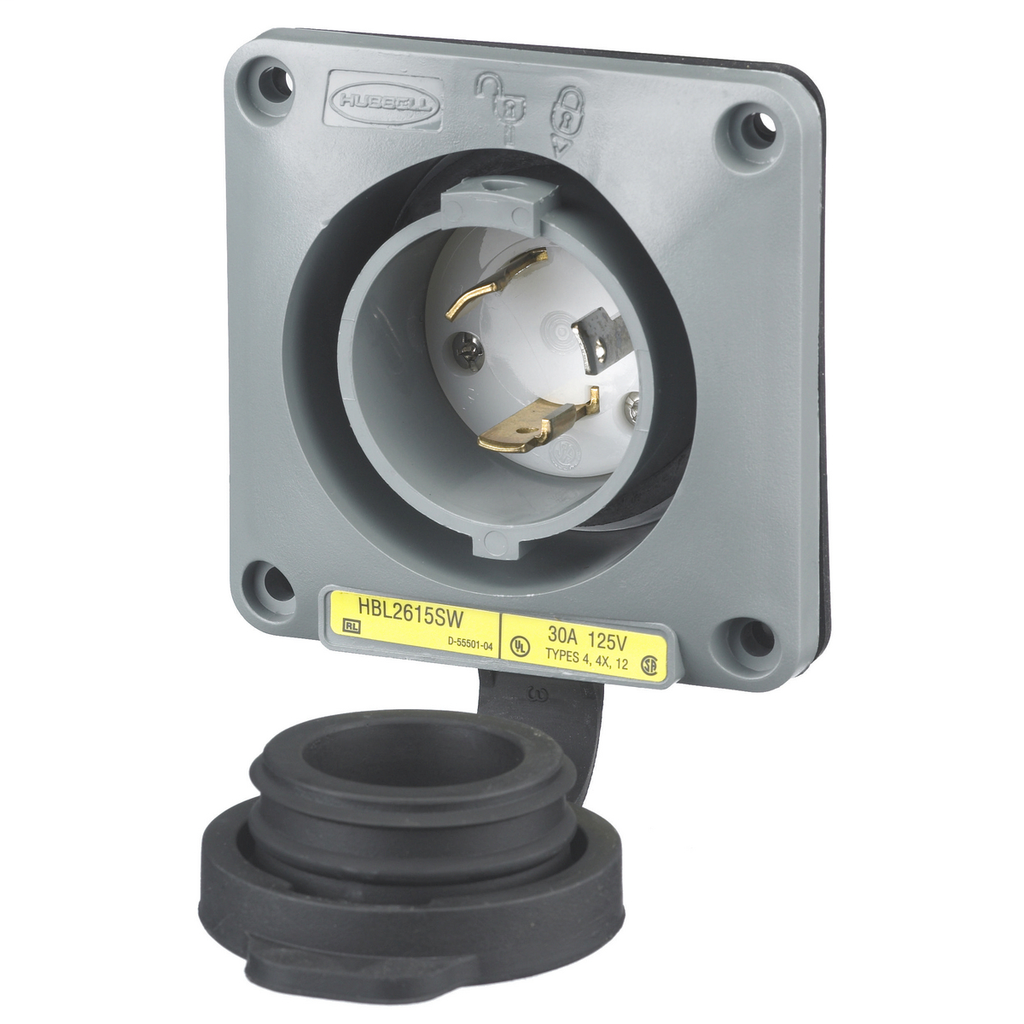

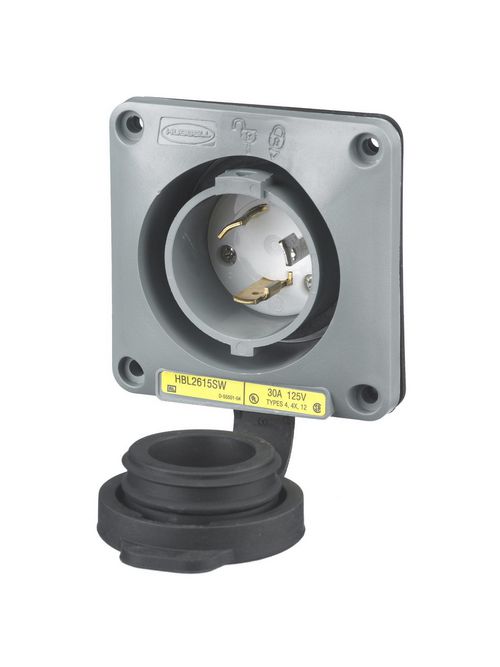

HWDK HBL2615SW LKG WT S/SHRD FLG-IN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$189.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2615SW
North Coast Part # 210315

Features

  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
  • Closure cap is included for environmental seal when device is not in use
  • Catalog number and color-coded voltage rating are easily visible even when in use
  • Shrouded Watertight Construction

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Dimensions: 3.75 in x 3.75 in x 2.27 in
  • Each - Height: 3.900 in
  • Each - Length: 3.900 in
  • Each - Width: 3.100 in
  • Height: 2.27 in
  • Industry Standard(s): UL Listed, CSA Certified To Type 4, 4X And Type 12
  • Length: 3.75 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Application: Extra Heavy Duty Industrial
  • Color: Gray
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • NEMA Rating: L5-30P
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.75 in x 3.75 in x 2.27 in
  • Special Features: Shrouded Watertight Construction
  • Standard: UL Listed, CSA Certified To Type 4, 4X And Type 12
  • Type: Flanged Inlet
  • Voltage Rating: 125 VAC
  • Wattage: 3750 W
  • Wire Size: #16 AWG to #8 AWG
  • Voltage Rating Description: 125 VAC
  • Width: 3.75 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358523164
Item Long Description Locking Devices, Twist-Lock, Industrial, Flanged Inlet, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, Gray.
GTiN 00783585231648
Length 3.75 in
Width 3.75 in
Size 3.75 in x 3.75 in x 2.27 in
Color Gray
Voltage 125 Volt
Type Shrouded, Single, Industrial Grade
Material Thermoplastic
Applications Extra Heavy Duty Industrial
Height 2.27 in
Weight 0.60 lb
Wire Size 16 AWG-8 AWG
Wattage 3750 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminals
Current 30 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Conductor Size 12-8 AWG
Mounting Type Screw, Surface
Standard 4X,CSA,Type 12,Type 4,UL
Environmental Conditions Watertight
Dielectric Strength Withstands 2,000V minimum
