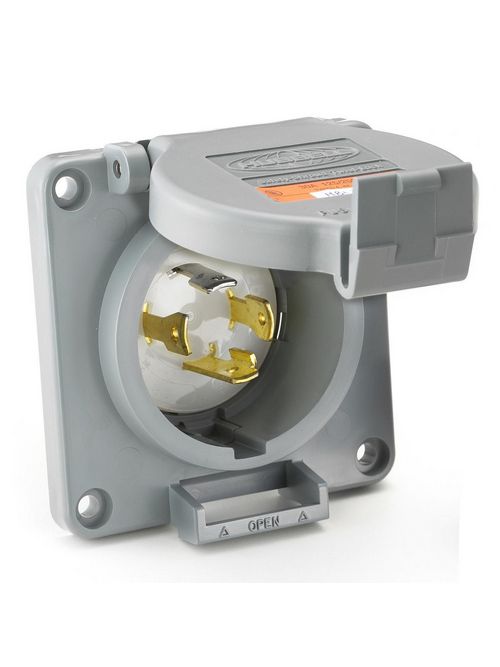

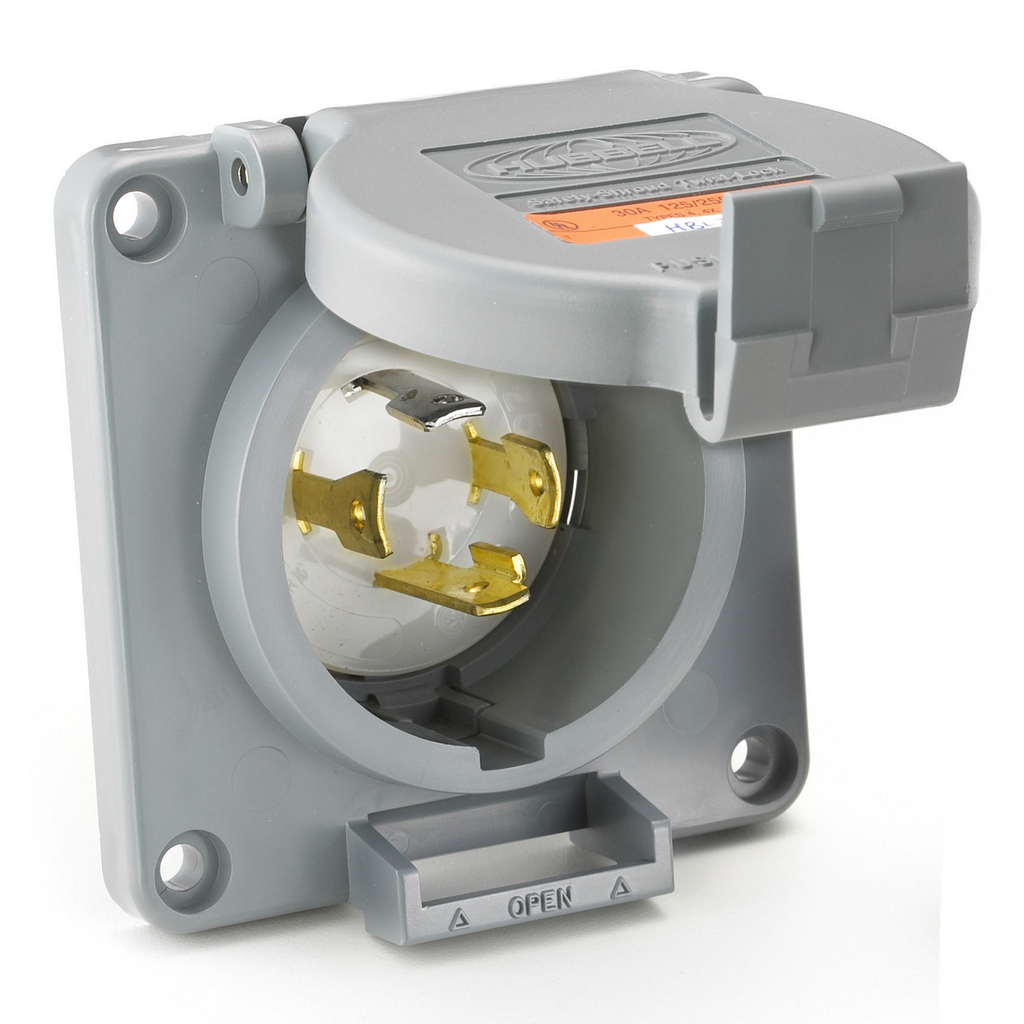

HWDK HBL2615SWR REVERSE SERVICE INL

Features

• UL type 4X environmental seal while in use and when closed
• High impact, thermoplastic housing for heavy-duty industrial environments
• Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
• Catalog number and color coded voltage rating are visible even when in use
• Shrouded Watertight Reverse Service

Specifications

• Country of Origin: US
• Current / Amperage Rating: 30 A
• Dimensions: 3.75 in x 3.75 in x 2.69 in
• Each - Height: 4.200 in
• Each - Length: 3.900 in
• Each - Width: 3.300 in
• Height: 2.69 in
• Industry Standard(s): UL Listed, CSA Certified To Type 4, 4X And Type 12
• Length: 3.75 in
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Show Add To ProjectList: Yes
• Amperage Rating: 30 A
• Application: Extra Heavy Duty Industrial
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Watertight
• NEMA Rating: L5-30P
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Phase: Single Phase
• Size: 3.75 in x 3.75 in x 2.69 in
• Special Features: Shrouded Watertight Reverse Service
• Standard: UL Listed, CSA Certified To Type 4, 4X And Type 12
• Type: Flanged Inlet
• Voltage Rating: 125 VAC
• Wire Size: #16 AWG to #8 AWG
• Voltage Rating Description: 125 VAC
• Width: 3.75 in

Certifications

• EU RoHS Indicator: Contact Manufacturer
