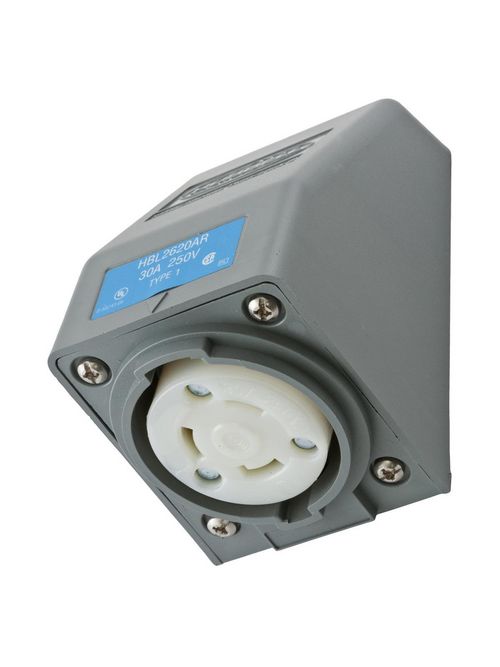

Hubbell Wiring Devices HBL2620AR 30 Amp 250 Volt 2-Pole 3-Wire NEMA L6-30R Gray Locking Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$69.58/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2620AR
North Coast Part # 212663

Features

  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
  • Angled Housing

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Dimensions: 4.77 in x 2.85 in x 3.14 in
  • Each - Height: 3.418 in
  • Each - Length: 5.168 in
  • Each - Width: 3.168 in
  • Height: 3.14 in
  • Horsepower - Maximum: 2
  • Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
  • Length: 4.77 in
  • Performance: Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Application: Heavy Duty Industrial Shrouded
  • Color: Gray, White
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: L6-30R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire Grounding
  • Phase: Single Phase
  • Size: 4.77 in x 2.85 in x 3.14 in
  • Special Features: Angled Housing
  • Standard: Certified to CSA C22.2 No.42; Fed.Spec. W-C-596; Listed to UL 498
  • Voltage Rating: 250 VAC
  • Wattage: 7500 W
  • Wire Size: #16 AWG to #8 AWG
  • Width: 2.85 in

Certifications

  • EU RoHS Indicator: Yes
  • Listings: UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42

Overview

UPC 78358523432
Item Long Description Locking Devices, Twist-Lock, Safety-Shroud Receptacle, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, RPT angle housing, One Gang, Gray
GTiN 00783585234328
Length 4.77 in
Width 2.85 in
Size 4.77 in x 2.85 in x 3.14 in
Color Gray
Voltage 250 Volt
Type Shrouded, Heavy Duty
Material Thermoplastic/Composite
Conductor Size 12 - 8 AWG
Applications Heavy Duty Industrial
Mounting Type Screw
Height 3.14 in
Grade Industrial
Weight 0.65 lb
Wire Size 16 AWG-8 AWG
Wattage 7500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Grounding
TC Connection Screw Terminal
Current 30 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
