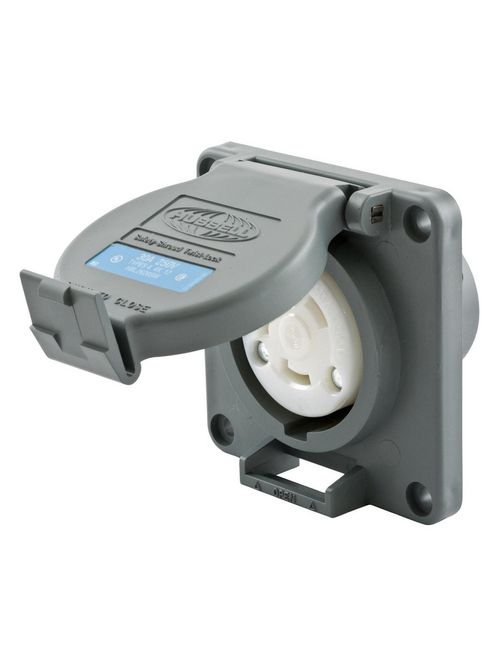

Hubbell Wiring Devices HBL2620SW 30 Amp 250 Volt 2-Pole 3-Wire NEMA L6-30R Gray Watertight Locking Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$128.49/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2620SW
North Coast Part # 214277

Features

  • High impact, thermoplastic housing for heavy-duty industrial environments
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Shrouded Watertight Construction

Performance

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
  • Environmental - Moisture Resistance - IP20 Suitability
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Industry Standard(s)

  • UL Listed, CSA Certified To Type 4, 4X And Type 12

Specifications

  • Amperage Rating: 30 A
  • Application: Heavy Duty Industrial Shrouded Watertight
  • Carton Quantity: 5 EA
  • Connectivity: Back Wired Screw Terminals
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Display Size: Standard Sized Product
  • Environmental Conditions: Watertight
  • Height: 2.69 in
  • Horsepower - Maximum: 2
  • Item Type: 30A Watertight Safety-Shroud® Receptacle
  • Length: 3.75 in
  • Material: Valox™
  • Material - Mounting Hardware: Screw Mounting
  • Minimum Order Quantity: 1 EA
  • Number Of Poles: 2-Pole
  • Number Of Wires: 3-Wire
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Phase: Single Phase
  • SAP Material Group 5: A10
  • Type: Device
  • Voltage Rating: 250 V
  • Voltage Rating Description: 250 VAC
  • Wattage: 7500 W
  • Weight: 0.55 lb
  • Width: 3.75 in
  • Wire Size: #16 AWG to #8 AWG
  • EU RoHS Indicator: Yes
  • Each - Length: 4.000 in
  • Each - Height: 4.100 in
  • Each - Width: 3.200 in
  • Size: 3.75 in x 3.75 in x 2.69 in
  • Special Features: Shrouded Watertight Construction
  • Standard: UL Listed, CSA Certified To Type 4, 4X And Type 12

Overview

UPC 78358523166
GTiN 00783585231662
Length 3.75 in
Width 3.200 in
Size Standard
Color Gray and White
Voltage 250 Volt
Type Heavy Duty, Shrouded
Material Thermoplastic
Conductor Size 12-8 AWG
Applications Heavy Duty Industrial Shrouded Watertight
Mounting Type Screw, Surface
Height 2.69 in
Grade Industrial
Weight 0.55 lb
Wire Size 16 AWG-8 AWG
Wattage 7500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection Screw Terminal
Current 30 A
Environmental Conditions Watertight
Number of Poles 2 Pole
Number of Wires 3-Wire Grounding
Sub Brand Twist-Lock
Dielectric Strength Withstands 2,000V minimum
