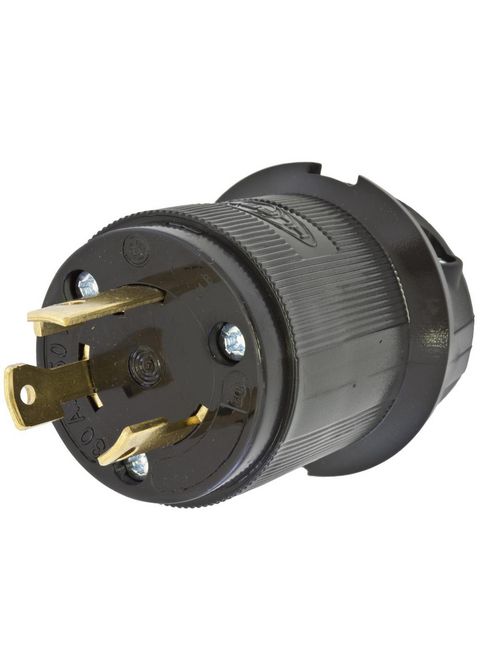

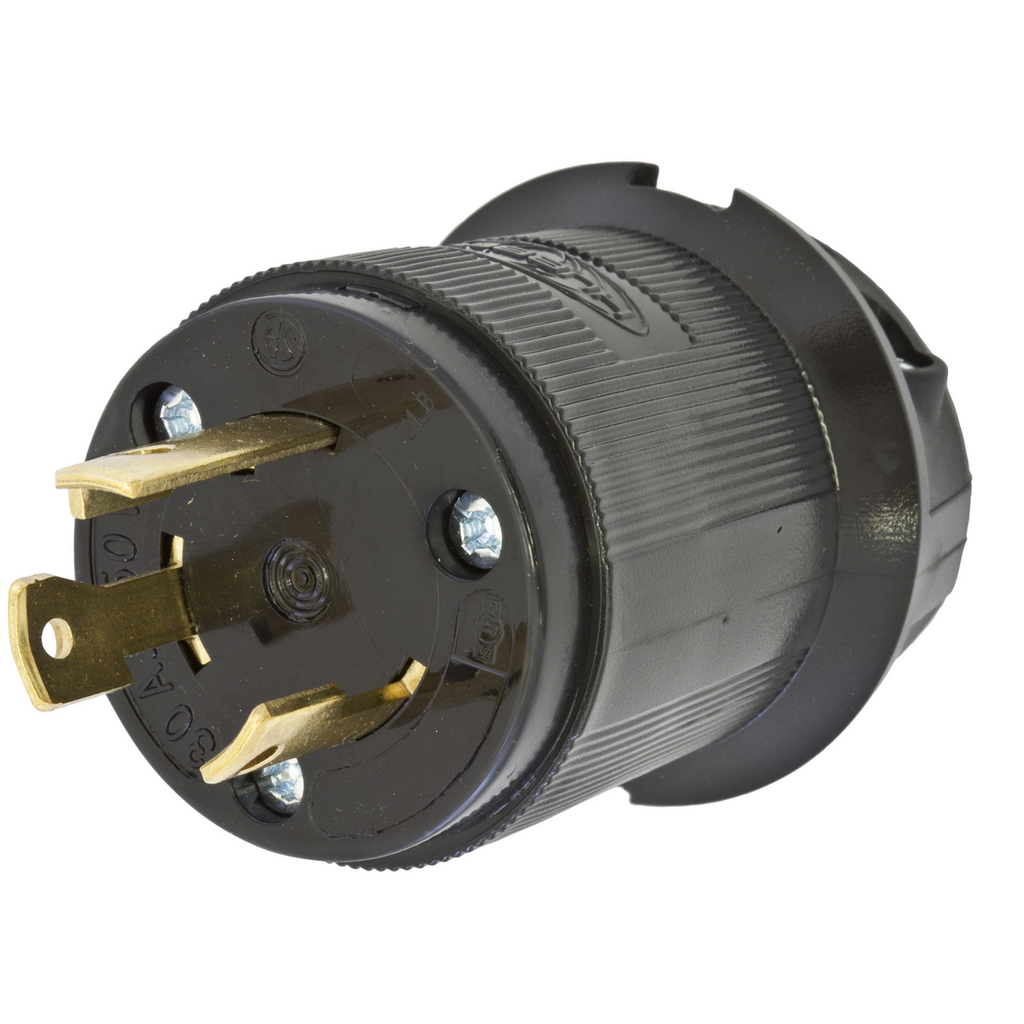

HWDK HBL2621EBK LKG PLUG, 30A 250V,
$44.25/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2621EBK
North Coast Part # 604981

Features

  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants

Specifications

General

  • Application: Industrial/Commercial
  • Color: Black
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: 30A Insulgrip® Plug
  • Listings: UL 498 | Fed.Spec. W-C-596 | CSA C22.2 No.42
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical-Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 | Mechanical - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum -40°C (w/o impact)
  • UPC: 783585131153

Dimensions

  • Display Size: Standard Sized

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Phase: Single Phase
  • Voltage Rating: 250V kV
  • Voltage Rating Description: 250V kV
  • Wattage: 7500

Conductor Related

  • Cord Type: All Listed Portables
  • Number Of Wires: 3-Wire Grounding
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Nema Rating: L6-30P

Logistics

  • Carton Quantity: 30

Overview

UPC 78358513115
GTiN 00783585131153
Length 3.978 in
Width 2.418 in
Color Black
Voltage 250 Volt
Material Composite
Height 8.995 in
Wattage 7,500
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 30
Current 30 A
Number of Poles 2 Pole
Number of Wires 3
Cord Type All Listed Portables
Applications Industrial/Commercial
Wire Size 16 AWG-8 AWG
Environmental Conditions Indoor Dry Unless Protected By Additional Means
