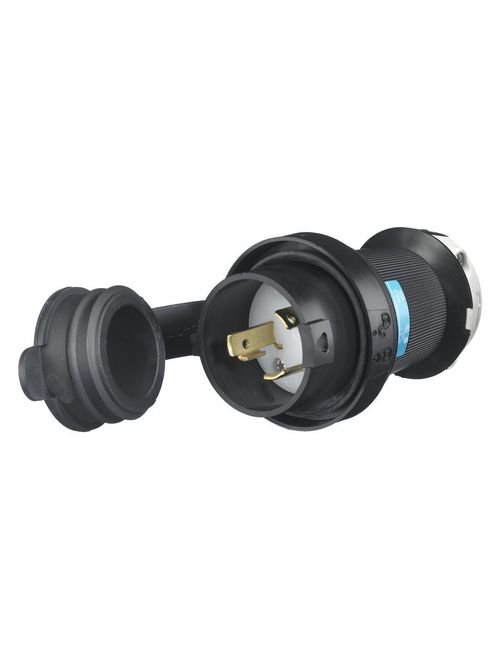

Hubbell Wiring Devices HBL2621SW 30 Amp 250 Volt 2-Pole 3-Wire NEMA L6-30P Black and White Watertight Locking Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$139.93/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2621SW
North Coast Part # 214875

Features

  • Impact resistant shroud protects blades against bending and breaking.
  • Reduces exposure to arcing when connecting or disconnecting under load.
  • Superior cord grip design protects terminations from excess strain.
  • Shrouded Watertight Construction

Performance

  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
  • Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum

Industry Standard(s)

  • UL Listed, CSA Certified To Type 4, 4X And Type 12

Specifications

  • Amperage Rating: 30 A
  • Application: Extra Heavy Duty Industrial
  • Cable Range: 0.325 - 0.930 in
  • Carton Quantity: 10 EA
  • Color: Black, White
  • Connectivity: Pressure Terminal Screws
  • Cord Diameter: 0.325-0.930 in
  • Cord Range: 0.325"-0.930" (9-24)
  • Cord Type: All Listed Portables
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Display Size: Standard Sized
  • Environmental Conditions: Watertight
  • Height: 4.40 in
  • Horsepower - Maximum: 2
  • Item Type: 30A Watertight Safety-Shroud® Plug
  • Length: 2.77 in
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Minimum Order Quantity: 1 EA
  • Nema Rating: L6-30P
  • Number Of Poles: 2-Pole
  • Number Of Wires: 3-Wire
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Phase: Single Phase
  • SAP Material Group 5: A10
  • Type: Plugs
  • Voltage Rating: 250 V
  • Voltage Rating Description: 250 V
  • Wattage: 7500 W
  • Weight: 0.60 lb
  • Width: 2.77 in
  • Wire Size: #16 AWG to #8 AWG
  • EU RoHS Indicator: Contact Manufacturer
  • Each - Length: 5.288 in
  • Each - Height: 3.668 in
  • Each - Width: 3.668 in
  • Size: 2.77 in x 2.77 in x 4.40 in
  • Special Features: Shrouded Watertight Construction
  • Standard: UL Listed, CSA Certified To Type 4, 4X And Type 12

Overview

UPC 78358523168
GTiN 00783585231686
Length 2.77 in
Width 2.77 in
Size 2.77 in x 2.77 in x 4.40 in
Color Black,White
Voltage 250 Volt
Type Standard, Shrouded
Material PBT
Conductor Size 16-8 AWG
Cord Type Portable
Applications For Extra Heavy Duty Industrial Applications
Mounting Type Surface, Cord
Height 3.668 in
Weight 0.60 lb
Wire Size 16 AWG-8 AWG
Wattage 7500 Watt
Temperature Rating -40 to 75 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Yes
TC Connection Terminal Screws
Dielectric Strength 2000 V
Current 30 A
Blade Dimensions 4.4 in H
Cord Size 0.325 - 0.93 in
Environmental Conditions Watertight, UL 94 Requirements, V0 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock, Watertight Safety-Shroud
