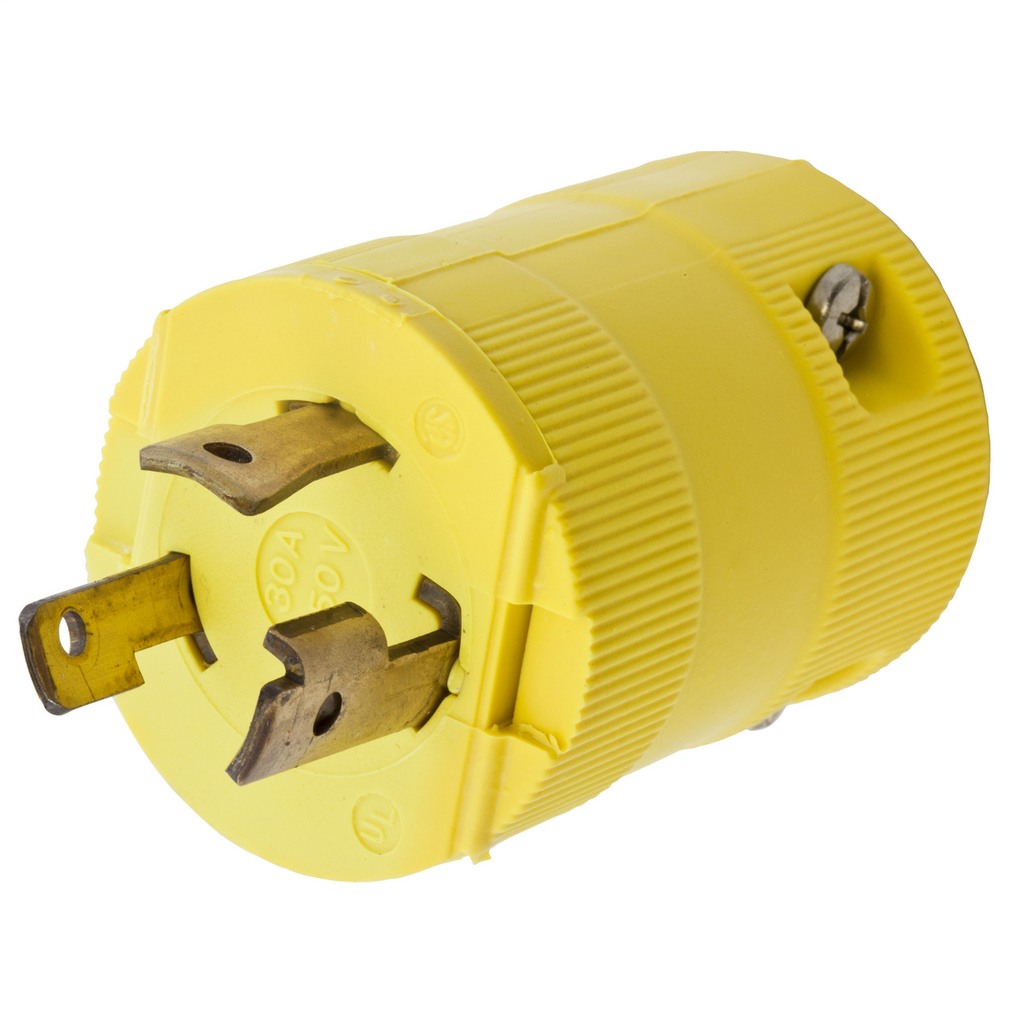

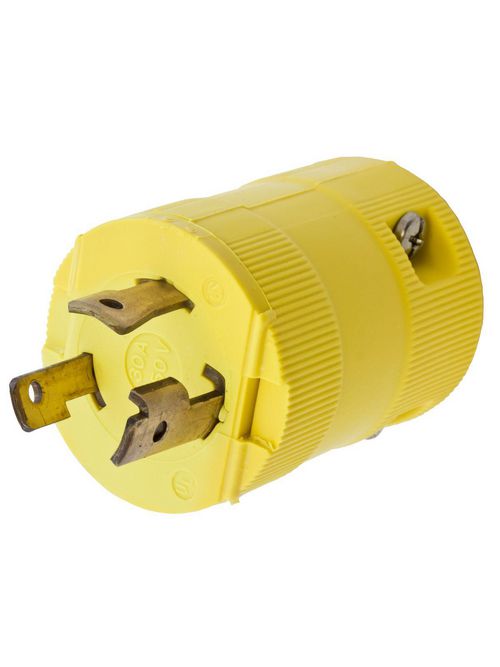

Hubbell Wiring Devices HBL2621VY 30 Amp 250 Volt 2-Pole 3-Wire NEMA L6-30P Yellow Locking Plug
Product image thumbnail 0
Product image thumbnail 1
$23.39/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2621VY
North Coast Part # 215146

Features

  • Powerful cord grip prevents conductor slippage and strain on wiring terminals
  • Totally insulated impact and crush resistant nylon body
  • Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened

Specifications

General

  • Application: Extra Heavy Duty Industrial
  • Color: Yellow
  • Cord Range: 0.590"-0.930" (15.0-23.6)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 2
  • Item Type: 30A Valise® Plug
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #14 AWG - #8 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • UPC: 783585236025

Dimensions

  • Dimensions: 2.5 in x 1.78 in x 1.78 in
  • Display Size: Standard Sized
  • Height: 1.78 in
  • Length: 2.5 in
  • Weight: 0.20 lb
  • Width: 1.78 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 250 VAC
  • Voltage Rating Description: 250 VAC
  • Wattage: 7500 W

Conductor Related

  • Cord Type: All Listed Portables
  • Number Of Wires: 3-Wire Grounding
  • Wire Size: #14 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L6-30P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358523602
GTiN 00783585236025
Length 2.5 in
Width 1.78 in
Size 2.5 in x 1.78 in x 1.78 in
Color Yellow
Voltage 250 Volt
Type Standard Sized
Material Nylon
Conductor Size 14-8 AWG
Cord Type Portable
Applications Extra Heavy Duty Industrial
Mounting Type Cord
Height 1.78 in
Weight 0.20 lb
Wire Size 14-8 AWG
Wattage 7500 Watt
Temperature Rating -40 to 75 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Yes
TC Connection Terminal Screws
Dielectric Strength 2000 V
Current 30 A
Blade Dimensions 2-1/2 in L x 1.78 in W x 1.78 in H
Cord Size 0.59 - 0.93 in
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock, Valise
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
