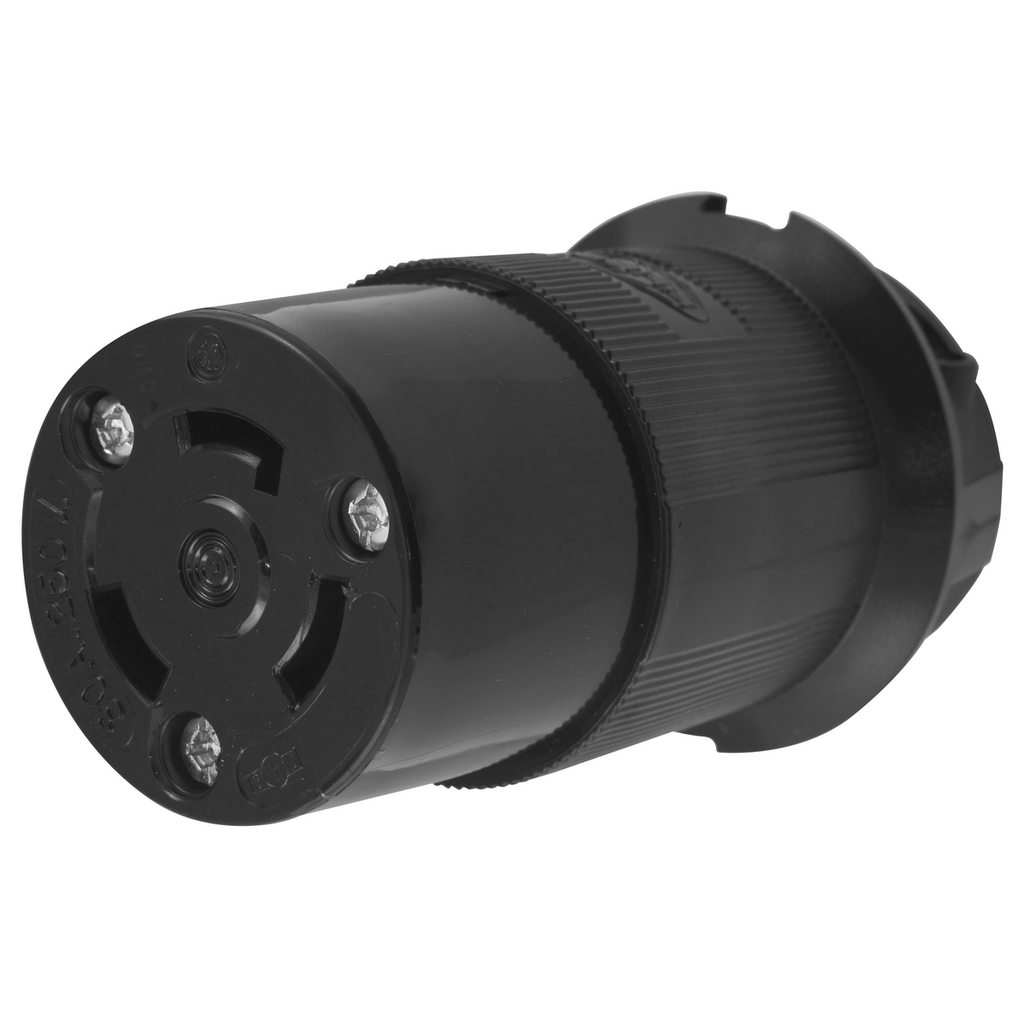

HWDK HBL2623EBK LKG CONN, 30A 250V,
Product image thumbnail 0
Product image thumbnail 1
$89.89/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2623EBK
North Coast Part # 604982

Features

  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Standard Product

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Each - Height: 8.995 in
  • Each - Length: 3.978 in
  • Each - Width: 2.418 in
  • Performance: Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Application: Heavy Duty Industrial
  • Color: Black
  • Conductor Range: #12 AWG to #8 AWG
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • NEMA Rating: L6-30R
  • Number of Conductors: 3-Wire Grounding
  • Number of Poles: 2-Pole
  • Special Features: Standard Product
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Voltage Rating: 250V kV

Certifications

  • EU RoHS Indicator: Yes
  • Listings: UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42

Overview

UPC 78358513116
Item Long Description Locking Devices, Twist-Lock, Insulgrip Connector, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, Cord clamps with removable inserts, Black Nylon
GTiN 00783585131160
Length 3.978 in
Width 2.418 in
Size Standard
Color Black
Voltage 250 Volt
Type Insulgrip
Material Composite
Number of Conductors 3-Wire Grounding
Applications Heavy Duty Industrial
Height 8.995 in
Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact, -25? with impact.
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminals
Current 30 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Environmental Conditions Indoor Dry Unless Protected By Additional Means
