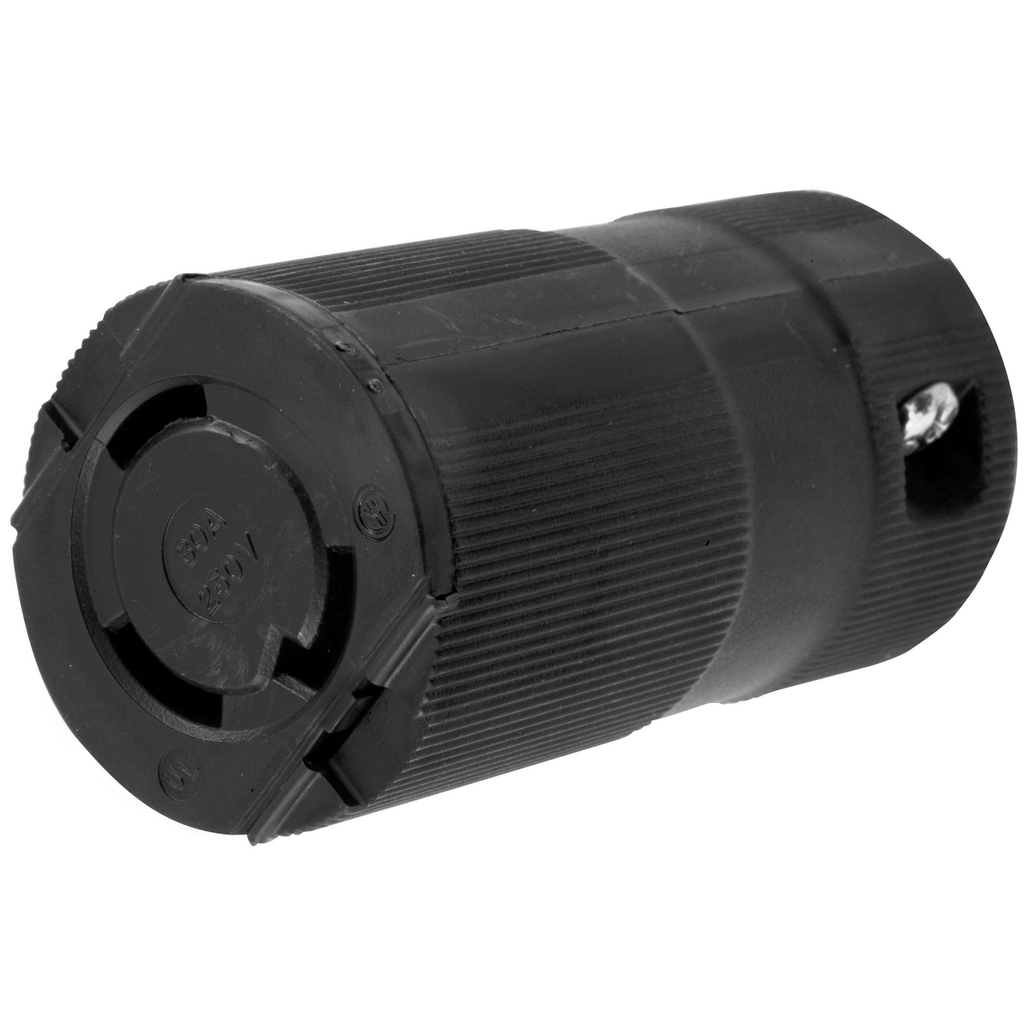

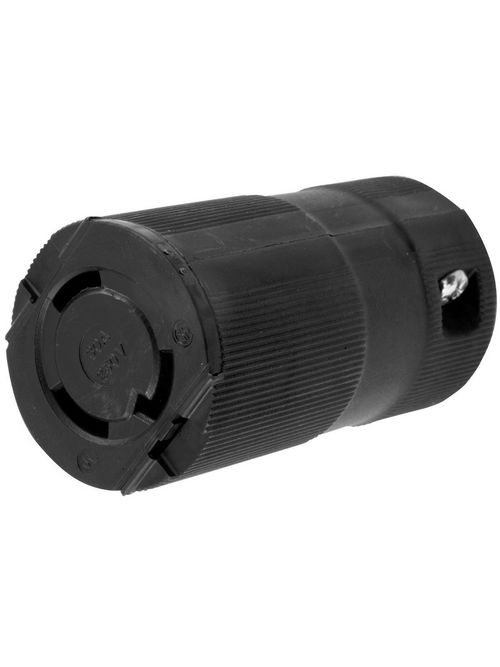

Hubbell Wiring Devices HBL2623VBK Valise 30 Amp 250 Volt L6-30R Black Locking Device Connector
$47.18/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2623VBK
North Coast Part # 604976

Features

  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Totally insulated impact and crush resistant nylon body

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Black
  • Cord Range: 0.590"-0.930" (15.0-23.6)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 30A Valise® Connector
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #14 AWG- #8 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • UPC: 783585043180

Dimensions

  • Dimensions: 3.5 in x 1.78 in x 1.78 in
  • Display Size: Standard
  • Height: 1.78 in
  • Length: 3.5 in
  • Weight: 0.25 lb
  • Width: 1.78 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 250 VAC
  • Voltage Rating Description: 250 VAC

Conductor Related

  • Number Of Wires: 3-Wire Grounding
  • Wire Size: #14 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L6-30R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358504318
GTiN 00783585043180
Length 3.5 in
Width 1.78 in
Size Standard
Color Black
Voltage 250 Volt
Type Standard
Material Nylon
Number of Conductors 3-Wire Grounding
Applications Heavy Duty Industrial
Height 1.78 in
Weight 0.25 lb
Temperature Rating -25 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Pressure Screw Terminal
Current 30 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock, Valise
Conductor Size 12-8 AWG
Mounting Type Cord
Standard CSA C22.2 No.42,UL 498,Fed.Spec. W-C-596
Grounding Grounding
