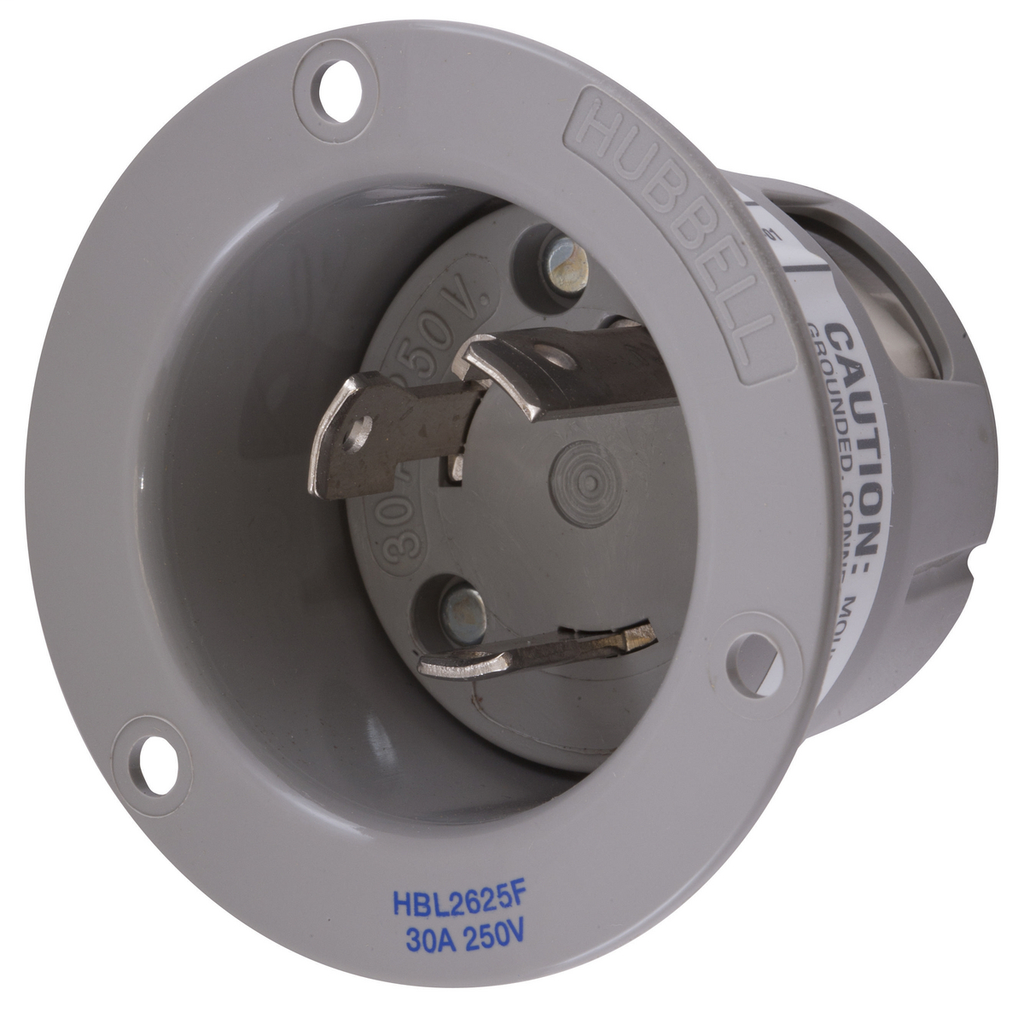

HWDK HBL2625F CAT#HBL2625, MOD, HI
$80.50/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2625F
North Coast Part # 549325

Features

  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included

Specifications

General

  • Application: Extra Heavy Duty Industrial
  • Color: Gray
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 30A Insulgrip® Flanged Inlet
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • UPC: 783585038919

Dimensions

  • Dimensions: 2.88 in x 2.88 in x 2.16 in
  • Display Size: Standard Sized Product
  • Height: 2.16 in
  • Length: 2.88 in
  • Weight: 0.20 lb
  • Width: 2.88 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Back Wired Screw Terminals
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 250 VAC
  • Voltage Rating Description: 250 VAC
  • Wattage: 7500 W

Conductor Related

  • Number Of Wires: 3-Wire Grounding
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L6-30P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358503891
GTiN 00783585038919
Length 2.88 in
Width 2.88 in
Size Standard Sized Product
Color Gray
Voltage 250 Volt
Type High Temp Version, Standard Sized
Material Thermoplastic, Nylon
Applications Extra Heavy Duty Industrial Grade
Height 2.16 in
Weight 0.20 lb
Wire Size 12-8 AWG
Wattage 7,500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminals
Current 30 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Conductor Size 12-8 AWG
Mounting Type Screw
Standard CSA C22.2 No.42,UL 498,Fed.Spec. W-C-596
