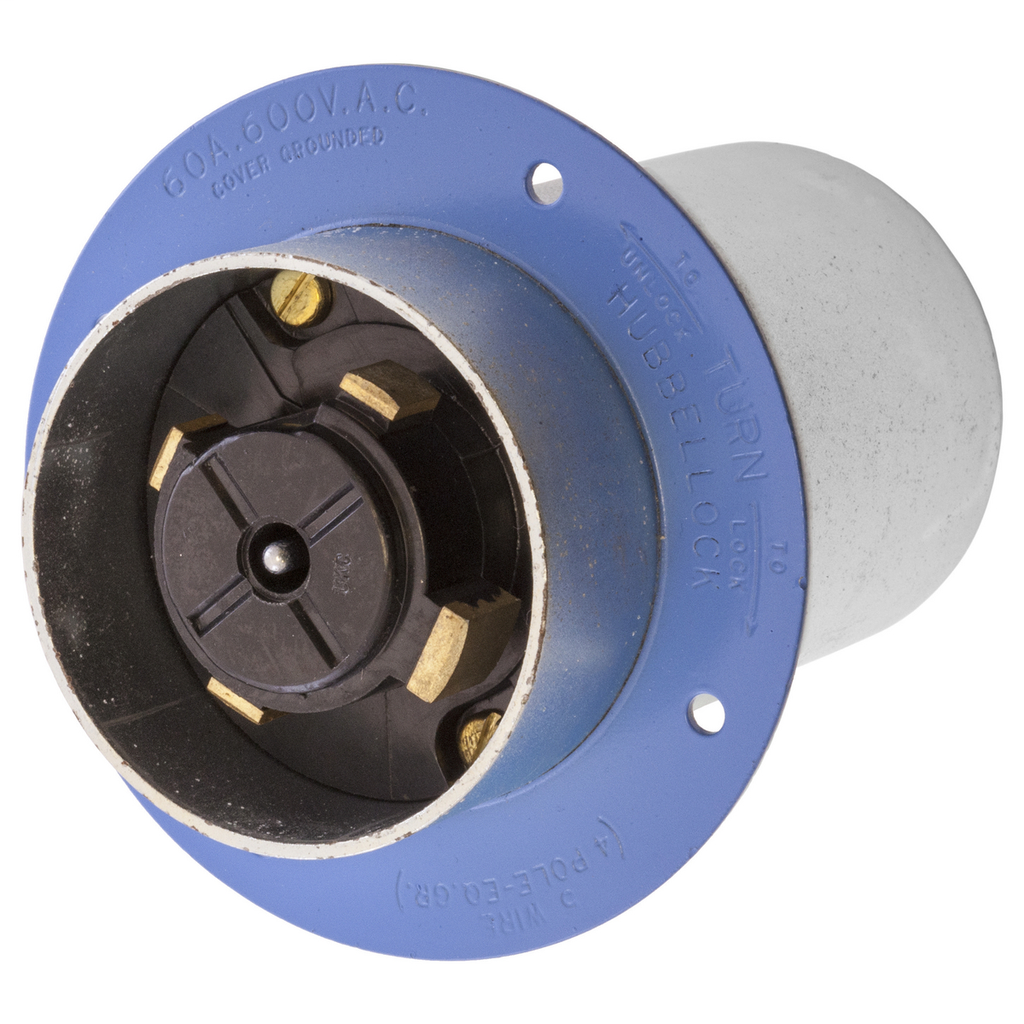

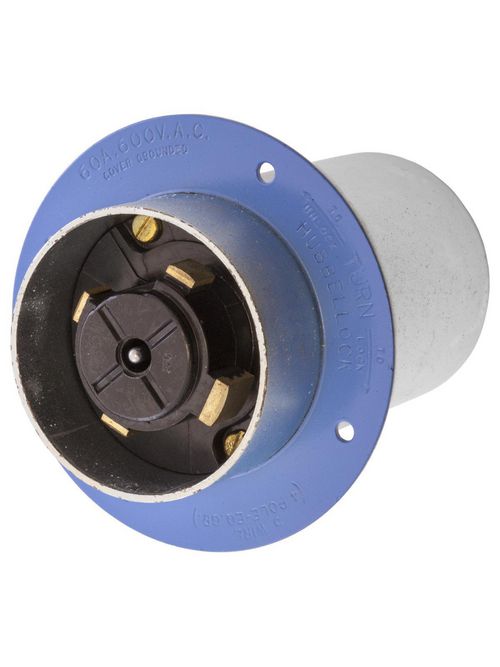

HCI HBL26522 H/LOCK FLGD INLET, 4P5
$673.62/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL26522
North Coast Part # 336092

Features

  • Molded-in male contacts are resistant to damage and provide a consistently positive connection
  • Color coded metallic housing enhances safety and abuse resistance
  • Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability

Specifications

General

  • Application: Extra Heavy Duty Industrial
  • Color: Blue
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 60A Grounding Hubbellock® Flanged Inlet
  • Material: Steel, Zinc Plated
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - 2,000V minimum | Environmental - Flammability - UL 94 V0 | Environmental - Moisture Resistance - IP30 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accomodation - #8 AWG - #4 AWG solid or stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Flanged Inlet
  • UPC: 783585017624

Dimensions

  • Dimensions: 3.95 in x 4.12 in x 4.12 in
  • Display Size: Standard Sized Product
  • Height: 4.12 in
  • Length: 3.95 in
  • Weight: 1.75 lb
  • Width: 4.12 in

Electrical Ratings

  • Amperage Rating: 60 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 60 A
  • Current Rating: 60 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 600 VAC
  • Voltage Rating Description: 600 VAC
  • Wattage: 36000 W

Conductor Related

  • Number Of Wires: 5-Wire
  • Wire Size: #8 AWG to #4 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA Standard | Listed to UL Standard

Logistics

  • Carton Quantity: 5

Overview

UPC 78358501762
GTiN 00783585017624
Length 3.95 in
Width 4.12 in
Size 3.95 in x 4.12 in x 4.12 in
Color Blue
Voltage 600 Volt
Type Standard
Material Thermoplastic
Applications Extra Heavy Duty Industrial
Height 4.12 in
Weight 1.75 lb
Wire Size 8 AWG-4 AWG
Wattage 36,000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection Pressure Screw Terminals
Current 60 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Hubbell-Lock
Conductor Size 6-4 AWG
Mounting Type Screw
Standard CSA Standard,UL Standard
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
