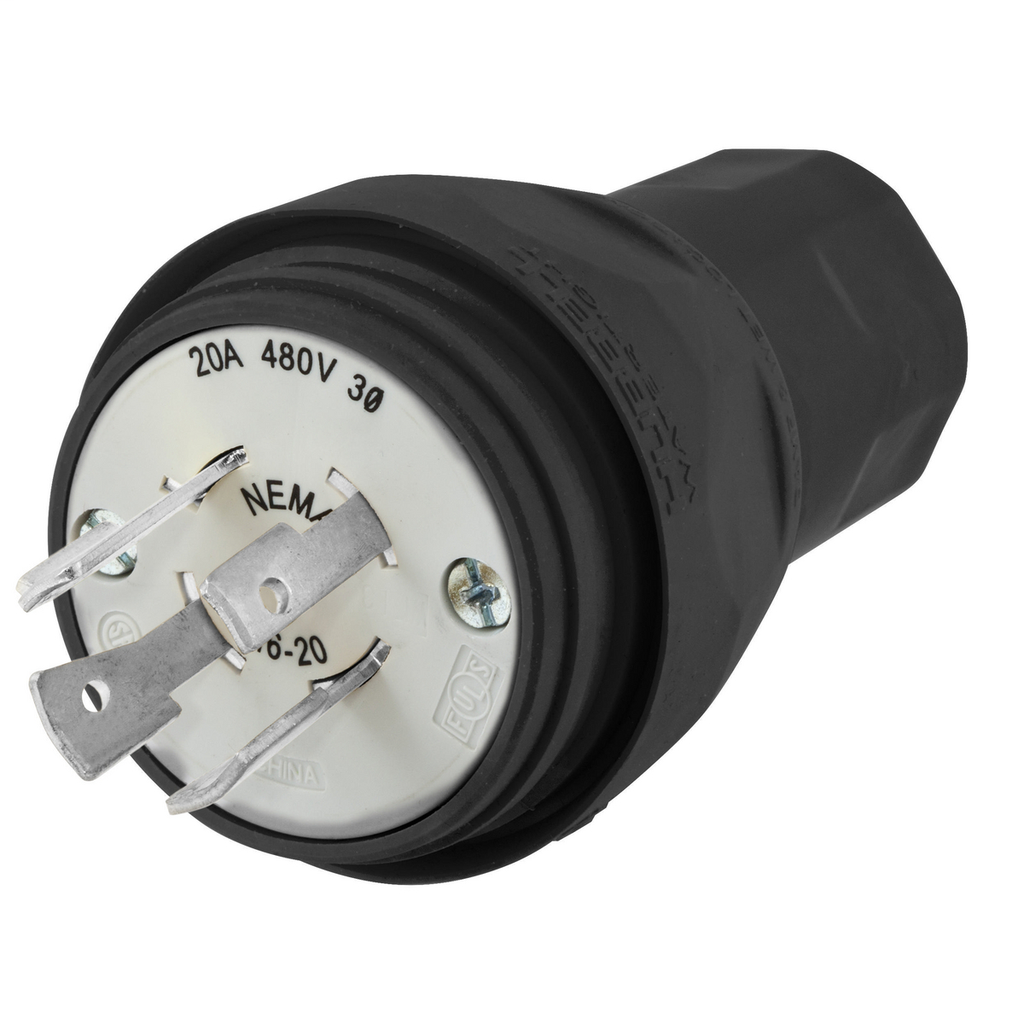

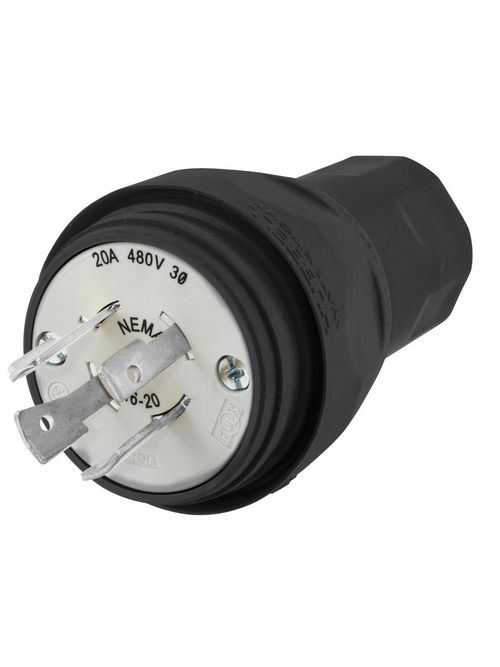

HWDK HBL26W76BK PLUG, W/TIGHT, 3P 2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$86.52/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL26W76BK
North Coast Part # 1560146

Features

  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 20 A
  • Dimensions: 2.51 in x 2.51 in x 3.96 in
  • Each - Height: 2.600 in
  • Each - Length: 13.500 in
  • Each - Width: 9.000 in
  • Height: 3.96 in
  • Industry Standard(s): Meets NEMA WD-1, WD-6 And ANSI Standards
  • Length: 2.51 in
  • Performance: Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous;Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Color: Black
  • NEMA Rating: L16-20P
  • Number of Poles: 3-Pole
  • Number of Wires: 4-Wire
  • Size: 2.51 in x 2.51 in x 3.96 in
  • Standard: Meets NEMA WD-1, WD-6 And ANSI Standards
  • Type: Plugs
  • Voltage Rating: 3 Phase 480 VAC
  • Wire Size: Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
  • Voltage Rating Description: 3 Phase 480 VAC
  • Width: 2.51 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358513165
Item Long Description Watertight Devices, Twist-Lock Plug, 20A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-20P, Black
GTiN 00783585131658
Length 2.51 in
Width 2.51 in
Size 2.51 in x 2.51 in x 3.96 in
Color Black
Voltage 480 Volt
Type Male
Cord Type Portable
Applications Power Connection
Height 3.96 in
Wire Size Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S
Wattage 9600 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Current 20 A
Number of Poles 2 Pole
Number of Wires 4
Sub Brand Watertight Devices
Conductor Size 10-8 AWG
Mounting Type Cord
Standard ANSI Standards,Meets NEMA WD-1,WD-6
Environmental Conditions Watertight
Material Composite
