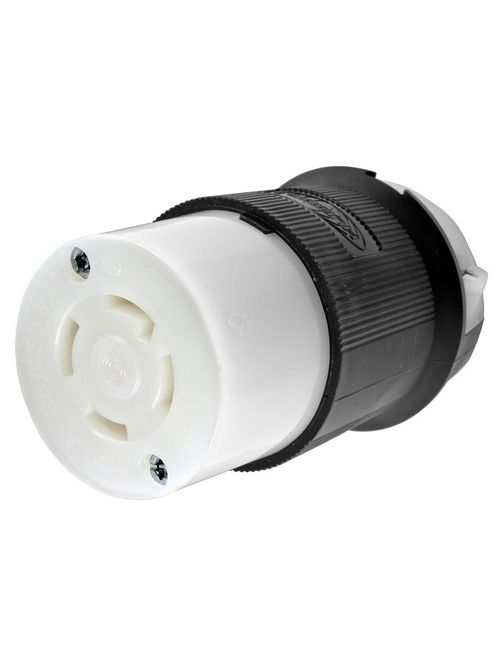

Hubbell Wiring Devices HBL2713 30 Amp 125/250 Volt 3-Pole 4-Wire NEMA L14-30R Black and White Locking Connector Body
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$120.99/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2713
North Coast Part # 10587

Features

  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Black, White
  • Cord Range: 0.350"-1.150" (9-29)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 30A Grounding Insulgrip® Connector
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Connector Body
  • UPC: 783585039176

Dimensions

  • Dimensions: 2.33 in x 2.33 in x 3.86 in
  • Display Size: Standard
  • Height: 3.86 in
  • Length: 2.33 in
  • Weight: 0.35 lb
  • Width: 2.33 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125/250 VAC
  • Voltage Rating Description: 125/250 VAC

Conductor Related

  • Cable Range: 0.350 - 1.150 in
  • Number Of Wires: 4-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L14-30R

Logistics

  • Carton Quantity: 30

Overview

UPC 78358503917
GTiN 00783585039176
Length 2.33 in
Width 2.33 in
Size 2.33 in x 2.33 in x 3.86 in
Color Black and White
Voltage 125 Volt
Type Connector Body
Material Nylon
Number of Conductors 4-Wire Grounding
Conductor Size 12-8 AWG
Applications Heavy Duty Industrial
Height 3.86 in
Weight 0.35 lb
Connection Type Pressure Screw
Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact, -25? with impact.
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 30
TC Connection Pressure Screw Terminal
Current 30 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Twist-Lock, Insulgrip
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Environmental Conditions Indoor Dry Unless Protected By Additional Means
