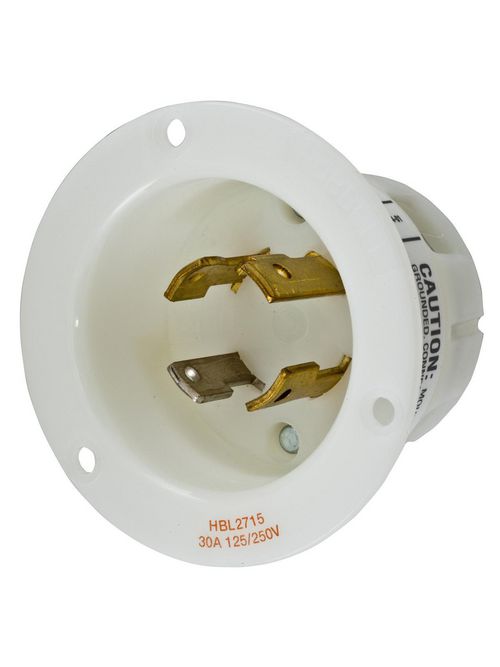

Hubbell Wiring Devices HBL2715 30 Amp 125/250 Volt 3-Pole 4-Wire NEMA L14-30P White Locking Flanged Inlet
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$81.71/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2715
North Coast Part # 10599

Features

  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard Product

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Dimensions: 3.06 in x 3.06 in x 2.27 in
  • Each - Height: 2.678 in
  • Each - Length: 3.798 in
  • Each - Width: 3.238 in
  • Height: 2.27 in
  • Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
  • Length: 3.06 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Application: Extra Heavy Duty Industrial
  • Color: White
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • NEMA Rating: L14-30P
  • Number of Poles: 3-Pole
  • Number of Wires: 4-Wire
  • Phase: Single Phase
  • Size: 3.06 in x 3.06 in x 2.27 in
  • Special Features: Standard Product
  • Standard: Certified to CSA C22.2 No.42; Fed.Spec. W-C-596; Listed to UL 498
  • Type: Flanged Inlet
  • Voltage Rating: 125/250 VAC
  • Wattage: 7500 W
  • Wire Size: #16 AWG to #8 AWG
  • Voltage Rating Description: 125/250 VAC
  • Width: 3.06 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358503919
Item Long Description Locking Devices, Twist-Lock, Industrial, Flanged Inlet, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30P, Screw Terminal, White.
GTiN 00783585039190
Length 3.06 in
Width 3.06 in
Size 3.06 in x 3.06 in x 2.27 in
Color White
Voltage 125 Volt
Type Standard, Single
Material Composite
Number of Conductors 4
Conductor Size 12-8 AWG
Applications Extra Heavy Duty Industrial
Height 2.27 in
Weight 0.25 lb
Wire Size 16 AWG-8 AWG
Connection Type Screw Terminal
Wattage 7500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Number of Ports 3
TC Connection Screw Terminals
Current 30 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Twist-Lock, Insulgrip
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
