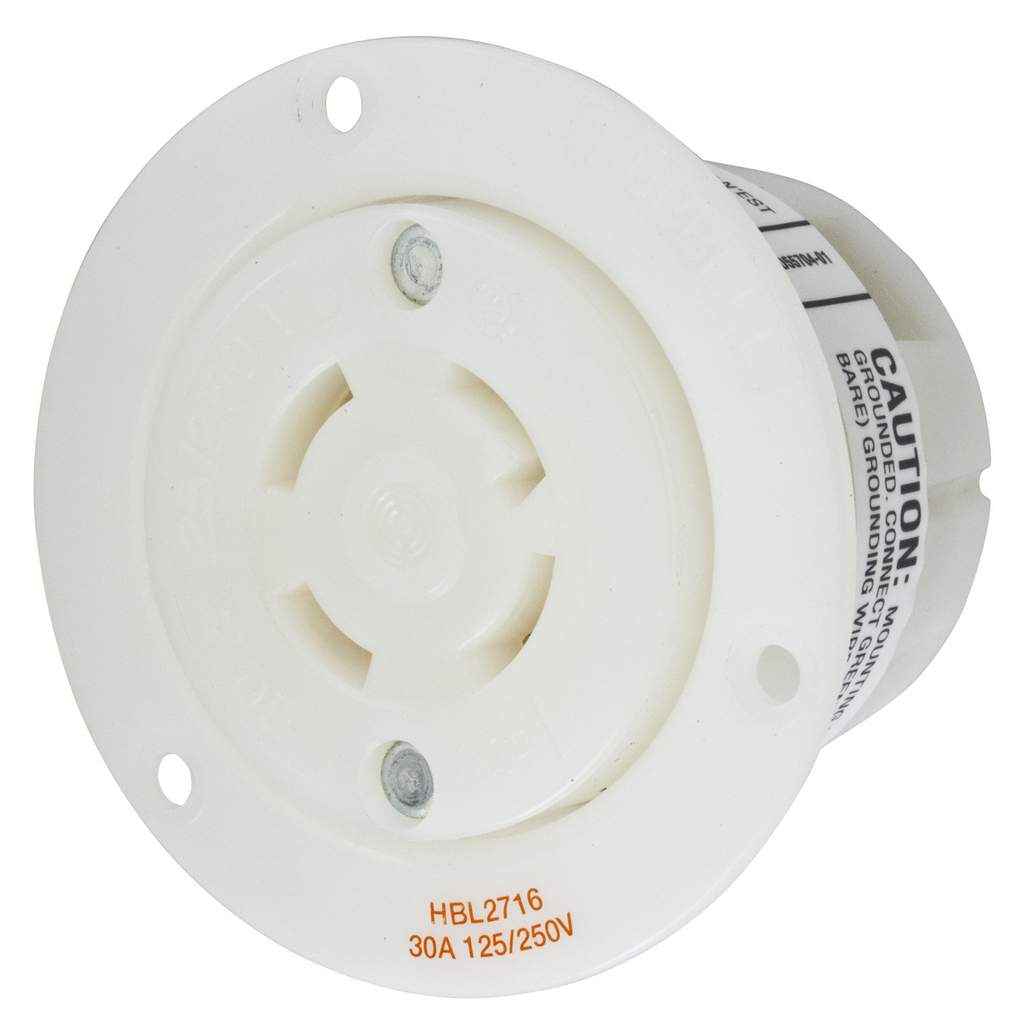

Hubbell Wiring Devices HBL2716 30 Amp 125/250 Volt 3-Pole 4-Wire NEMA L14-30R White Locking Flanged Receptacle
$88.94/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2716
North Coast Part # 10617

Features

  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included

Specifications

General

  • Application: Heavy Duty Industrial
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 2(2)
  • Item Type: 30A Grounding Insulgrip® Flanged Receptacle
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Flanged Receptacle
  • UPC: 783585039213

Dimensions

  • Dimensions: 3.06 in x 3.06 in x 2.27 in
  • Display Size: Standard Sized Product
  • Height: 2.27 in
  • Length: 3.06 in
  • Weight: 0.35 lb
  • Width: 3.06 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Back Wired Screw Terminals
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125/250 VAC
  • Voltage Rating Description: 125/250 VAC
  • Wattage: 7500 W

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L14-30R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358503921
GTiN 00783585039213
Length 3.06 in
Width 3.06 in
Size 3.06 in x 3.06 in x 2.27 in
Color White
Voltage 125 Volt
Type Single, Standard, Insulgrip
Material Thermoplastic
Conductor Size 12-8 AWG
Applications Heavy Duty Industrial
Mounting Type Recessed/Flush, Screw
Height 2.27 in
Weight 0.35 lb
Wire Size 16 AWG-8 AWG
Wattage 7500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminal
Current 30 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 3 Pole
Number of Wires 4-Wire Grounding
Sub Brand Twist-Lock
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
