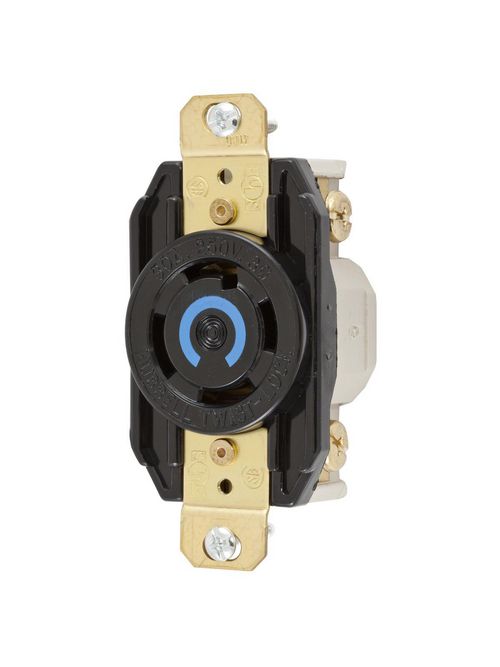

Hubbell Wiring Devices HBL2720 30 Amp 250 Volt 3-Pole 4-Wire NEMA L15-30R Black Single Flush Locking Receptacle

$80.60/ea

In Stock | 75 available at 11 locations

Adding...

Already a Customer? Log in to view your pricing

Features

Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
Face color coding by voltage facilitates locating and mating of proper devices
All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems

Application: Heavy Duty Industrial
Environmental Conditions: Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum: 3
Item Type: Single Flush Receptacles
Material: Nylon
Material - Mounting Hardware: Screw Mounting
Number Of Poles: 3-Pole
OEM Brand Name: Hubbell Wiring Device-Kellems
Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Type: Single Flush Receptacle
UPC: 783585236131

Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
Nema Rating: L15-30R

UPC	78358523613
GTiN	00783585236131
Length	3.28 in
Width	1.7 in
Size	Standard
Color	Black
Voltage	250 Volt
Type	Heavy Duty
Material	Thermoplastic
Conductor Size	12-8 AWG
Applications	Heavy Duty Industrial
Mounting Type	Screw, Recessed/Flush
Height	1.31 in
Grade	Industrial
Weight	0.3 lb
Wire Size	16 AWG-8 AWG
Wattage	7500 Watt
Family Brand Name	Hubbell Wiring Device Kellems
Carton Qty	10
TC Connection	Screw Terminal
Current	30 A
Environmental Conditions	Indoor Dry Unless Protected by Additional Means
Number of Poles	3 Pole
Number of Wires	4-Wire Grounding
Sub Brand	Twist-Lock
Standard	CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength	Withstands 2,000V minimum
