Hubbell Wiring Devices HBL2723 30 Amp 250 Volt 3-Pole 4-Wire NEMA L15-30R Black and White Locking Connector Body

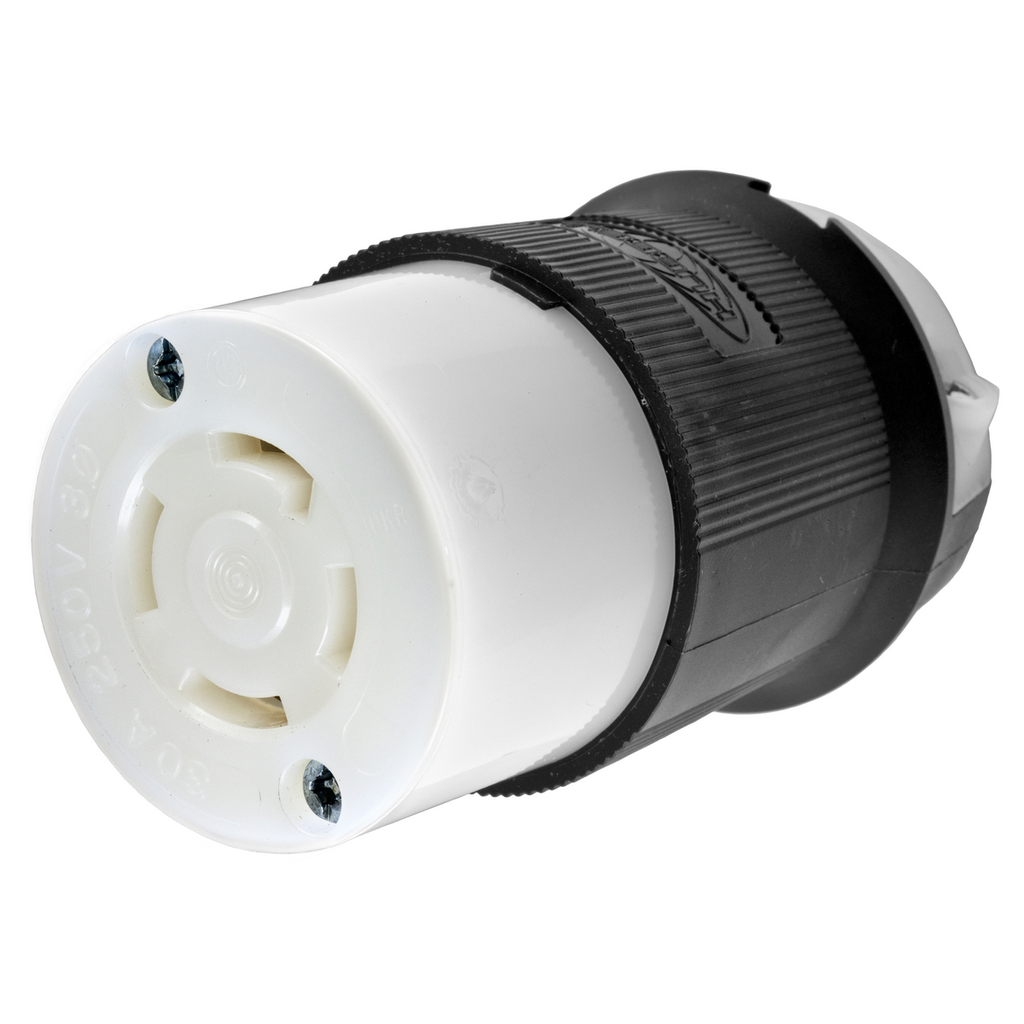

Product image thumbnail 0

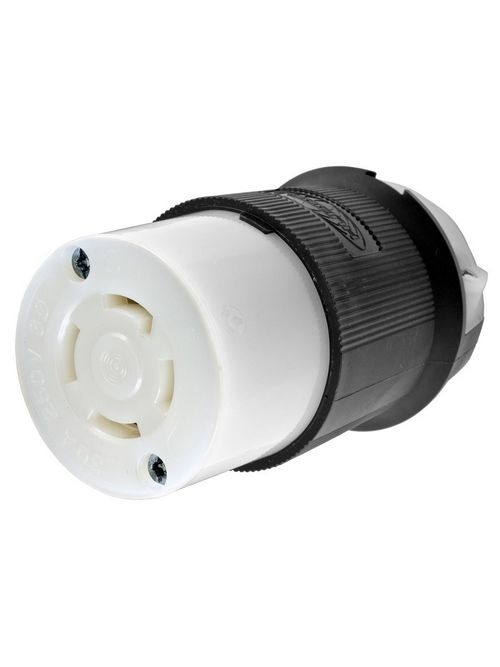

Product image thumbnail 1
$121.30/ea
In Stock | 64 available at 11 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2723
North Coast Part # 10713

Features

  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Black, White
  • Cord Range: 0.350"-1.150" (9-29)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 30A Grounding Insulgrip® Connector
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Connector Body
  • UPC: 783585039251

Dimensions

  • Dimensions: 2.33 in x 2.33 in x 3.86 in
  • Display Size: Standard
  • Height: 3.86 in
  • Length: 2.33 in
  • Weight: 0.40 lb
  • Width: 2.33 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Three Phase
  • Voltage Rating: 3 Phase 250 VAC
  • Voltage Rating Description: 3 Phase 250 VAC

Conductor Related

  • Cable Range: 0.350 - 1.150 in
  • Number Of Wires: 4-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L15-30R

Logistics

  • Carton Quantity: 30
> View Substitutes (2)

Categories

Overview

UPC 78358503925
GTiN 00783585039251
Length 2.33 in
Width 2.33 in
Size Standard
Color Black and White
Voltage 250 Volt
Type Female, Standard
Material Composite
Number of Conductors 4
Conductor Size 12-8 AWG
Applications Heavy Duty Industrial
Height 3.86 in
Weight 0.40 lb
Connection Type Pressure Screw
Temperature Rating -25 to 75 C with Impact, -40 to 75 C without Impact
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 30
Number of Ports 3
TC Connection Pressure Screw Terminal
Current 30 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Twist-Lock, Insulgrip
Standard UL 498,CSA C22.2 No.42,Fed.Spec. W-C-596
