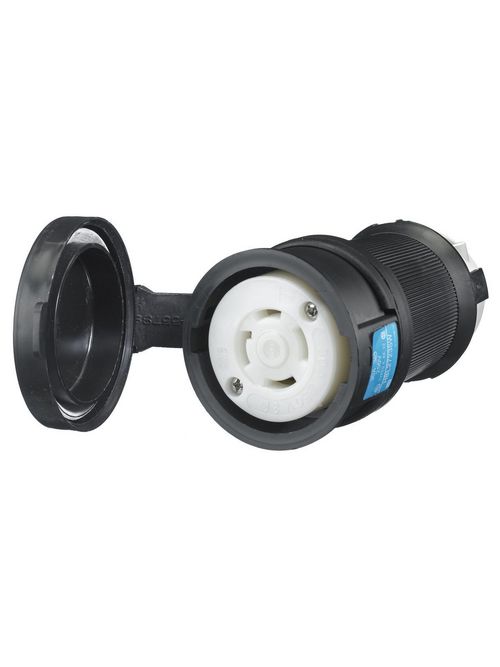

Hubbell Wiring Devices HBL2723SW 30 Amp 250 Volt 3-Pole 4-Wire NEMA L15-30R Black and White Watertight Locking Connector Body
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$154.81/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2723SW
North Coast Part # 63936

Features

  • UL Type 4X Environmental seal protects connection while in use.
  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Closure cap is included for environmental seal when device is not in use
  • Superior cord grip design protects terminations from excess strain.
  • Shrouded Watertight Construction

Performance

  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability

Industry Standard(s)

  • UL Listed, CSA Certified To Type 4, 4X And Type 12

Specifications

  • Amperage Rating: 30 A
  • Application: Heavy Duty Industrial
  • Cable Range: 0.350 - 1.150 in
  • Carton Quantity: 10 EA
  • Color: Black, White
  • Connectivity: Pressure Terminal Screws
  • Cord Diameter: 0.350-1.150 in
  • Cord Range: 0.350"-1.150" (9-29)
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Display Size: Standard
  • Environmental Conditions: Watertight
  • Height: 4.40 in
  • Insulation: Insulated Body
  • Item Type: 30A Watertight Safety-Shroud® Connector
  • Length: 2.75 in
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Minimum Order Quantity: 1 EA
  • Nema Rating: L15-30R
  • Number Of Poles: 3-Pole
  • Number Of Wires: 4-Wire
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Phase: Three Phase
  • SAP Material Group 5: A10
  • Type: Connector Body
  • Voltage Rating: 250 V
  • Voltage Rating Description: 250 V
  • Weight: 0.65 lb
  • Width: 2.75 in
  • Wire Size: #16 AWG to #8 AWG
  • EU RoHS Indicator: Yes
  • Each - Length: 5.288 in
  • Each - Height: 3.668 in
  • Each - Width: 3.668 in
  • Size: 2.75 in x 2.75 in x 4.40 in
  • Special Features: Shrouded Watertight Construction
  • Standard: UL Listed, CSA Certified To Type 4, 4X And Type 12

Overview

UPC 78358523186
GTiN 00783585231860
Length 2.75 in
Width 2.75 in
Size 2.75 in x 2.75 in x 4.40 in
Color Black and White
Voltage 250 Volt
Type Female, Standard
Material Composite
Number of Conductors 4
Conductor Size 12-8 AWG
Applications Heavy Duty Industrial
Height 3.668 in
Weight 0.65 lb
Connection Type Pressure Screw
Temperature Rating -25 to 75 C with Impact, -40 to 75 C without Impact
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Number of Ports 3
TC Connection Pressure Screw Terminal
Current 30 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Twist-Lock, Watertight Safety-Shroud
Environmental Conditions Watertight
