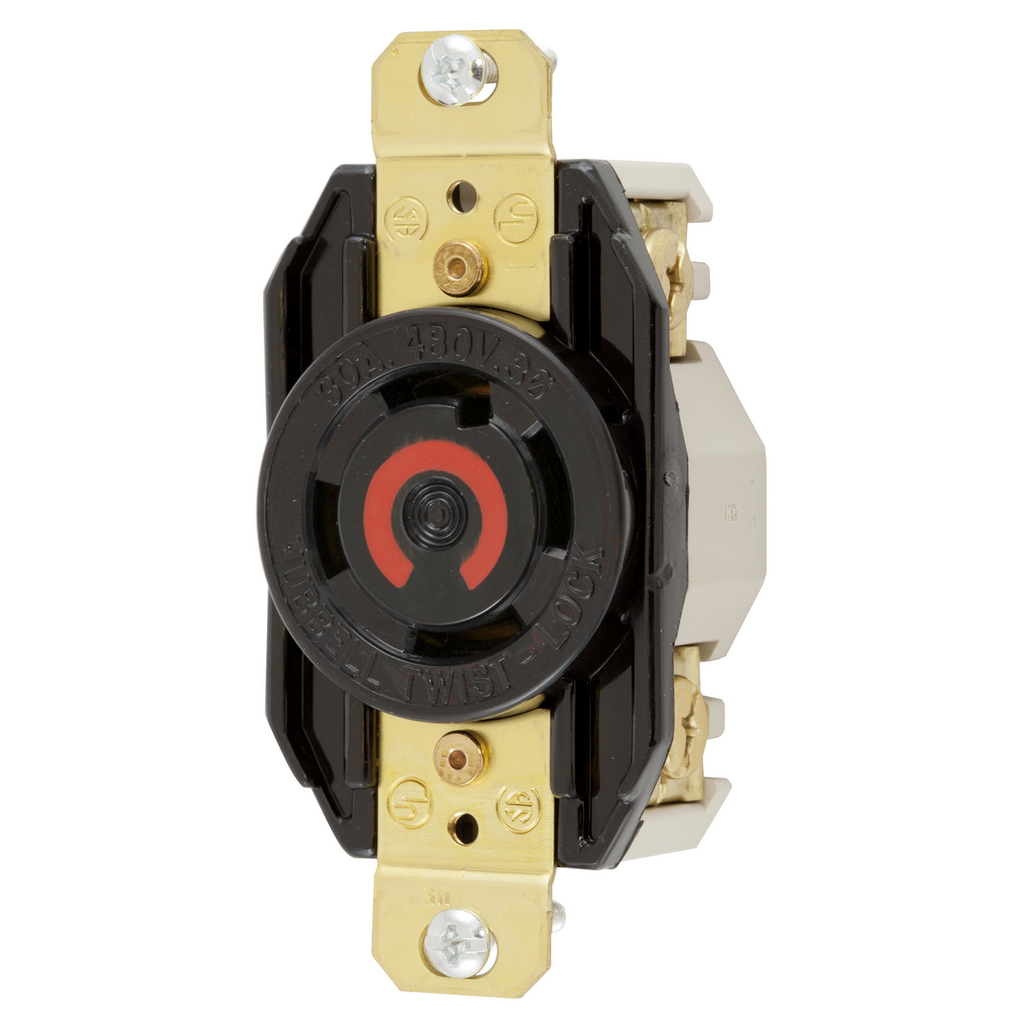

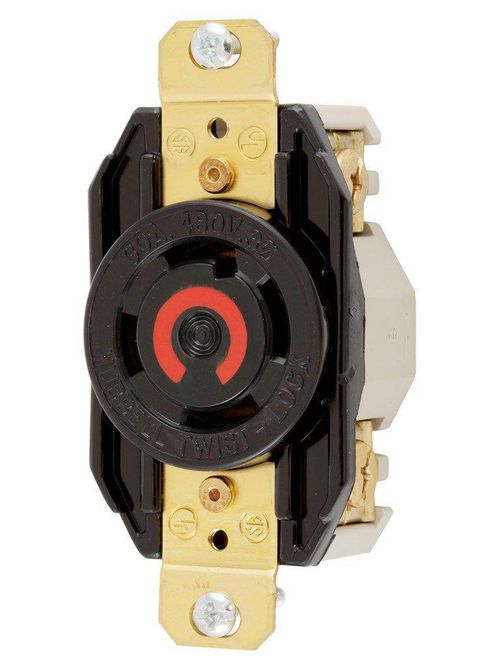

Hubbell Wiring Devices HBL2730 30 Amp 480 Volt 3-Pole 4-Wire NEMA L16-30R Black Single Flush Locking Receptacle
Product image thumbnail 0
Product image thumbnail 1
$91.93/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2730
North Coast Part # 10780

Features

  • High-impact, abuse-resistant nylon face
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems

Specifications

General

  • Application: Heavy Duty Industrial
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 10
  • Item Type: Single Flush Receptacles
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: -40°C to 85 °C
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Single Flush Receptacle
  • UPC: 783585236155

Dimensions

  • Dimensions: 3.28 in x 1.7 in x 1.31 in
  • Display Size: Standard Sized Product
  • Height: 1.31 in
  • Length: 3.28 in
  • Weight: 0.25 lb
  • Width: 1.7 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Three Phase
  • Voltage Rating: 3 Phase 480 VAC
  • Voltage Rating Description: 3 Phase 480 VAC
  • Wattage: 14400 W

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L16-30R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358523615
GTiN 00783585236155
Length 3.28 in
Width 1.7 in
Size Standard Sized Product
Color Black
Voltage 480 Volt
Type Single Receptacle
Material Nylon
Applications Heavy Duty Industrial
Height 1.31 in
Weight 0.25 lb
Wire Size 12-8 AWG
Wattage 14,400 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminal
Current 30 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Twist-Lock Devices
Standard UL 498,CSA C22.2 No.42,Fed.Spec. W-C-596
