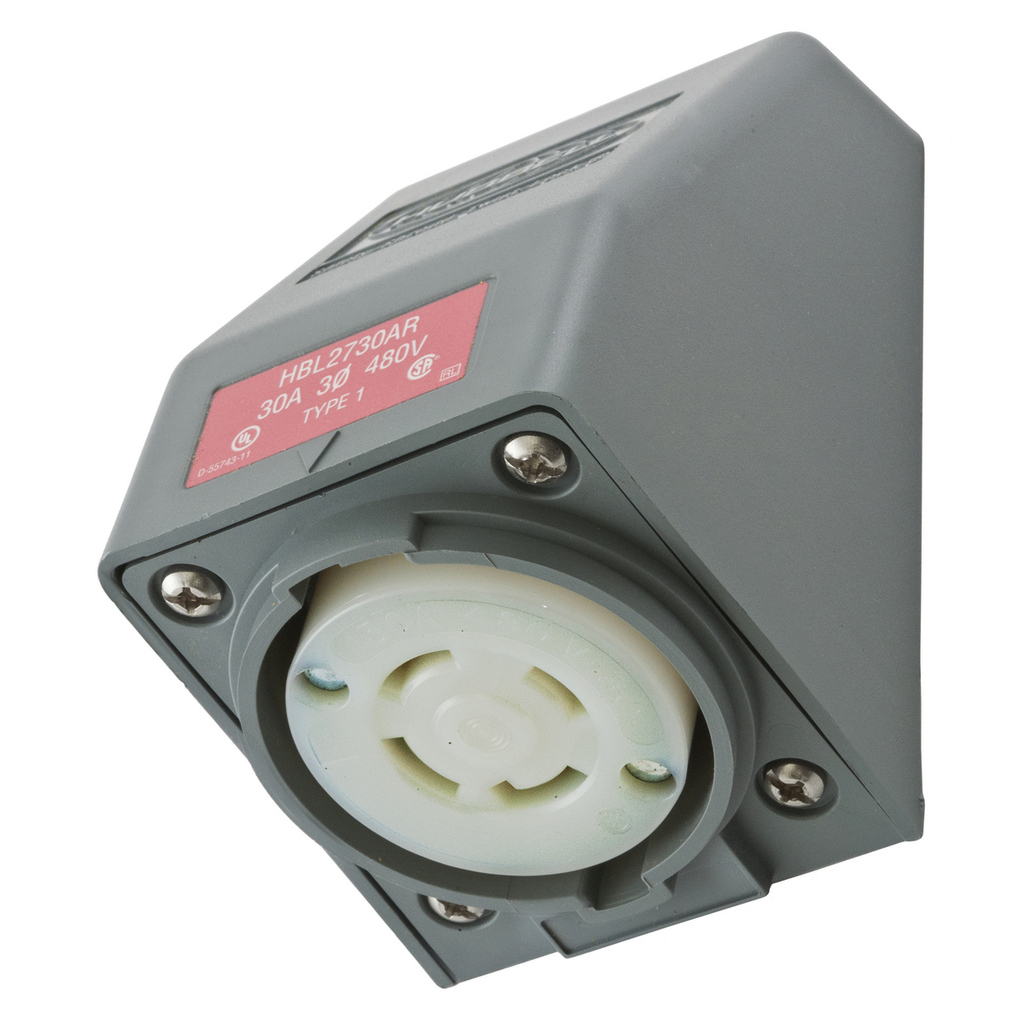

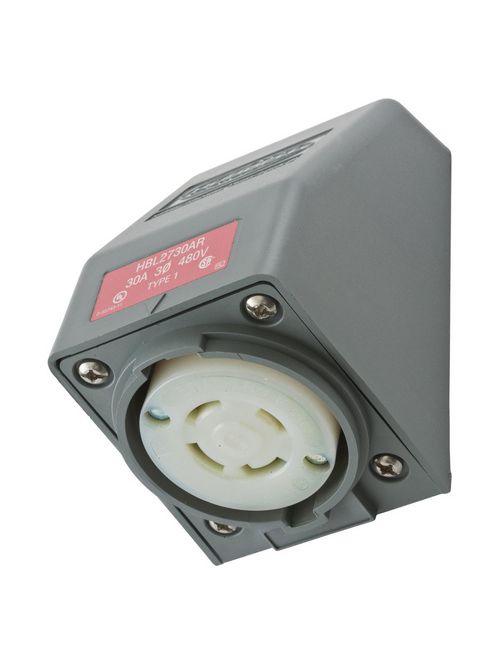

Hubbell Wiring Devices HBL2730AR 30 Amp 480 Volt 3-Pole 4-Wire NEMA L16-30R Gray Angle Housing Locking Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$101.49/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2730AR
North Coast Part # 68464

Features

  • Accepts Hubbell shrouded and standard NEMA locking plugs
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
  • Angled Housing

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Dimensions: 4.77 in x 2.85 in x 3.14 in
  • Each - Height: 3.418 in
  • Each - Length: 5.168 in
  • Each - Width: 3.168 in
  • Height: 3.14 in
  • Horsepower - Maximum: 10
  • Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
  • Length: 4.77 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Application: Heavy Duty Industrial Shrouded
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: L16-30R
  • Number of Poles: 3-Pole
  • Number of Wires: 4-Wire
  • Phase: Three Phase
  • Size: 4.77 in x 2.85 in x 3.14 in
  • Special Features: Angled Housing
  • Standard: Certified to CSA C22.2 No.42; Fed.Spec. W-C-596; Listed to UL 498
  • Type: Receptacle
  • Voltage Rating: 480 V
  • Wattage: 14400 W
  • Wire Size: #16 AWG to #8 AWG
  • Voltage Rating Description: 480 V
  • Width: 2.85 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358523480
Item Long Description Locking Devices, Twist-Lock, Safety-Shroud, Angled Receptacle, One Gang, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-30R, Screw Terminal , Gray
GTiN 00783585234809
Length 4.77 in
Width 2.85 in
Size 4.77 in x 2.85 in x 3.14 in
Color Gray
Voltage 480 Volt
Type Shrouded, Angled, Heavy Duty
Material Thermoplastic/Composite
Conductor Size 12 - 8 AWG
Applications Heavy Duty Industrial
Mounting Type Screw, Surface
Height 3.14 in
Grade Industrial
Weight 0.75 lb
Wire Size 16 AWG-8 AWG
Wattage 14400 Watt
Family Brand Name Hubbell Wiring Device Kellems
Grounding Grounding
TC Connection Screw Terminal
Current 30 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Twist-Lock
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
