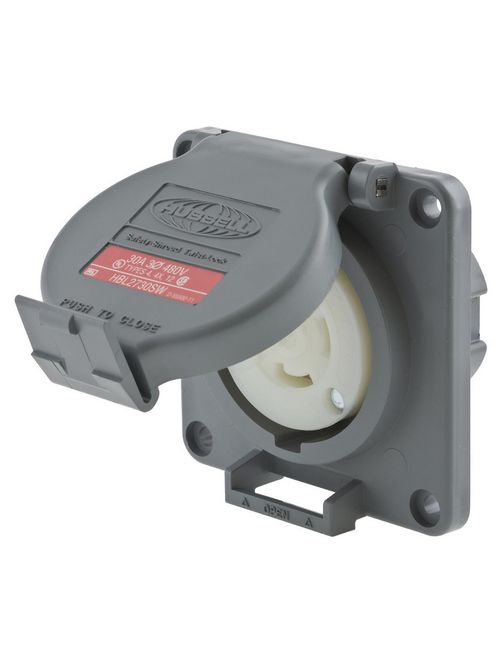

Hubbell Wiring Devices HBL2730SW 30 Amp 480 Volt 3-Pole 4-Wire NEMA L16-30R Gray Watertight Locking Receptacle
Product image thumbnail 0
Product image thumbnail 1
$143.67/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2730SW
North Coast Part # 70206

Features

  • UL type 4X environmental seal while in use and when closed
  • High impact, thermoplastic housing for heavy-duty industrial environments
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Shrouded Watertight Construction

Performance

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Moisture Resistance - IP20 Suitability
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
  • Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17

Industry Standard(s)

  • UL Listed, CSA Certified To Type 4, 4X And Type 12

Specifications

  • Amperage Rating: 30 A
  • Application: Heavy Duty Industrial Shrouded Watertight
  • Carton Quantity: 5 EA
  • Connectivity: Back Wired Screw Terminals
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Display Size: Standard Sized Product
  • Environmental Conditions: Watertight
  • Height: 2.9 in
  • Horsepower - Maximum: 10
  • Item Type: 30A Watertight Safety-Shroud® Receptacle
  • Length: 3.75 in
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Minimum Order Quantity: 1 EA
  • Nema Rating: L16-30R
  • Number Of Poles: 3-Pole
  • Number Of Wires: 4-Wire
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: -40°C to 85 °C
  • Phase: Three Phase
  • SAP Material Group 5: A10
  • Type: Receptacle
  • Voltage Rating: 480 V
  • Voltage Rating Description: 3 Phase 480 VAC
  • Wattage: 14400 W
  • Weight: 0.65 lb
  • Width: 3.75 in
  • Wire Size: #16 AWG to #8 AWG
  • EU RoHS Indicator: Yes
  • Each - Length: 4.000 in
  • Each - Height: 4.000 in
  • Each - Width: 3.300 in
  • Size: 3.75 in x 3.75 in x 2.9 in
  • Special Features: Shrouded Watertight Construction
  • Standard: UL Listed, CSA Certified To Type 4, 4X And Type 12

Overview

UPC 78358523190
GTiN 00783585231907
Length 3.75 in
Width 3.300 in
Size Standard
Color Gray and White
Voltage 480 Volt
Type Heavy Duty, Shrouded
Material Thermoplastic
Conductor Size 12-8 AWG
Applications Heavy Duty Industrial Shrouded Watertight
Mounting Type Screw, Surface
Height 2.9 in
Grade Industrial
Weight 0.65 lb
Wire Size 16 AWG-8 AWG
Wattage 14400 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection Screw Terminal
Current 30 A
Environmental Conditions Watertight
Number of Poles 3 Pole
Number of Wires 4-Wire Grounding
Sub Brand Twist-Lock
Dielectric Strength Withstands 2,000V minimum
