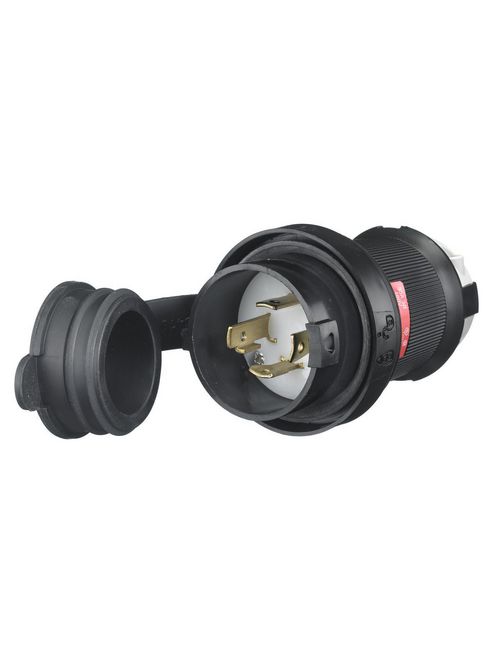

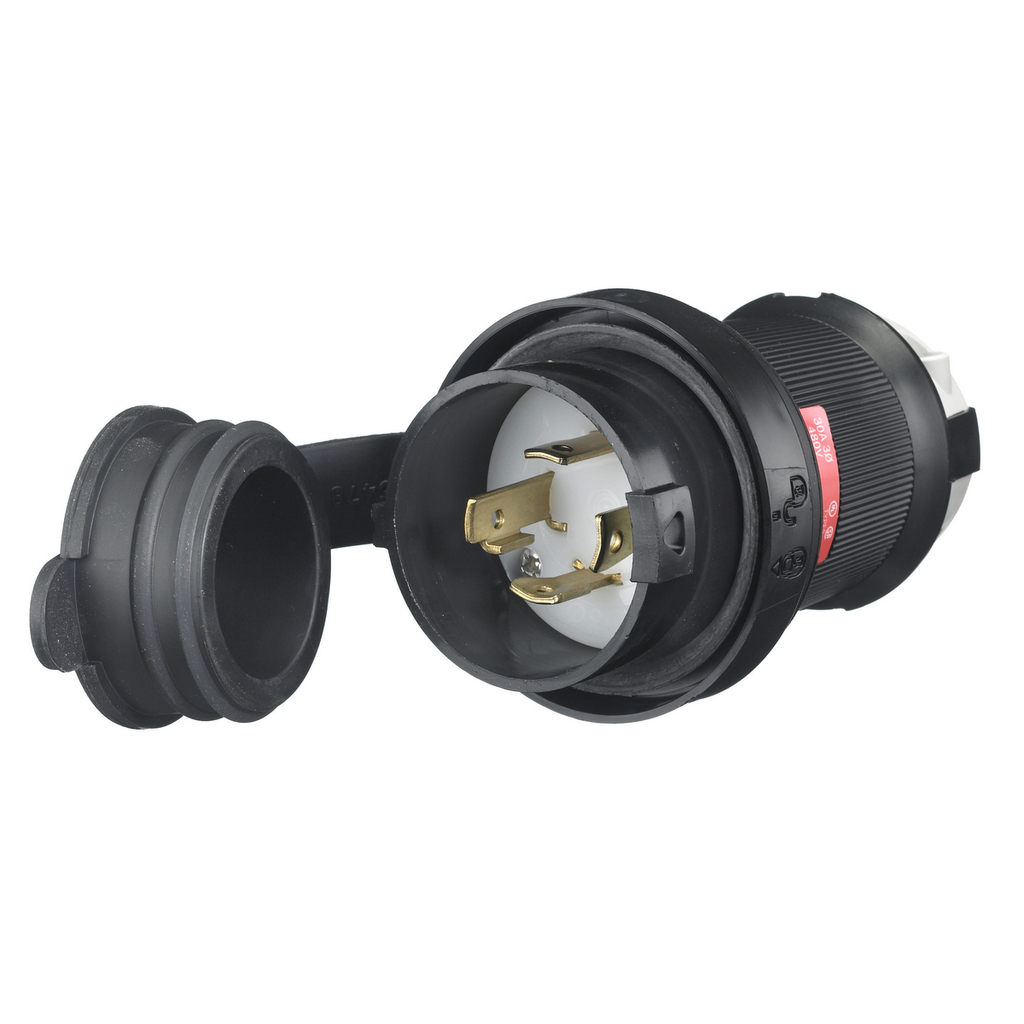

Hubbell Wiring Devices HBL2731SW 30 Amp 480 Volt 3-Pole 4-Wire NEMA L16-30P Black and White Watertight Locking Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$147.72/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2731SW
North Coast Part # 70907

Features

  • UL Type 4X Environmental seal protects connection while in use.
  • Impact resistant shroud protects blades against bending and breaking.
  • Reduces exposure to arcing when connecting or disconnecting under load.
  • Superior cord grip design protects terminations from excess strain.
  • Shrouded Watertight Construction

Performance

  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability
  • Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current

Industry Standard(s)

  • UL Listed, CSA Certified To Type 4, 4X And Type 12

Specifications

  • Amperage Rating: 30 A
  • Application: Extra Heavy Duty Industrial
  • Cable Range: 0.350 - 1.150 in
  • Carton Quantity: 10 EA
  • Connectivity: Pressure Terminal Screws
  • Cord Diameter: 0.350-1.150 in
  • Cord Range: 0.350"-1.150" (9-29)
  • Cord Type: All Listed Portables
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Display Size: Standard Sized
  • Environmental Conditions: Watertight
  • Height: 4.40 in
  • Horsepower - Maximum: 10
  • Item Type: 30A Watertight Safety-Shroud® Plug
  • Length: 2.94 in
  • Material: Composite
  • Material - Mounting Hardware: Cord Mounted
  • Minimum Order Quantity: 1 EA
  • Nema Rating: L16-30P
  • Number Of Poles: 3-Pole
  • Number Of Wires: 4-Wire
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Phase: Three Phase
  • SAP Material Group 5: A10
  • Type: Plugs
  • Voltage Rating: 480 V
  • Voltage Rating Description: 3 Phase 480 VAC
  • Wattage: 14400 W
  • Weight: 0.70 lb
  • Width: 2.94 in
  • Wire Size: #16 AWG to #8 AWG
  • EU RoHS Indicator: Yes
  • Each - Length: 5.288 in
  • Each - Height: 3.668 in
  • Each - Width: 3.668 in
  • Size: 2.94 in x 2.94 in x 4.40 in
  • Special Features: Shrouded Watertight Construction
  • Standard: UL Listed, CSA Certified To Type 4, 4X And Type 12

Overview

UPC 78358523192
GTiN 00783585231921
Length 2.94 in
Width 2.94 in
Size 2.94 in x 2.94 in x 4.40 in
Color Black/White
Voltage 480 Volt
Type Shrouded, Standard Sized
Material Composite
Conductor Size 12-8 AWG
Cord Type Portable
Applications Extra Heavy Duty Industrial Application
Mounting Type Surface
Height 3.668 in
Weight 0.70 lb
Wire Size 16 AWG-8 AWG
Wattage 14400 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Yes
TC Connection Terminal Screws
Current 30 A
Environmental Conditions Watertight
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Twist-Lock, Watertight Safety-Shroud
