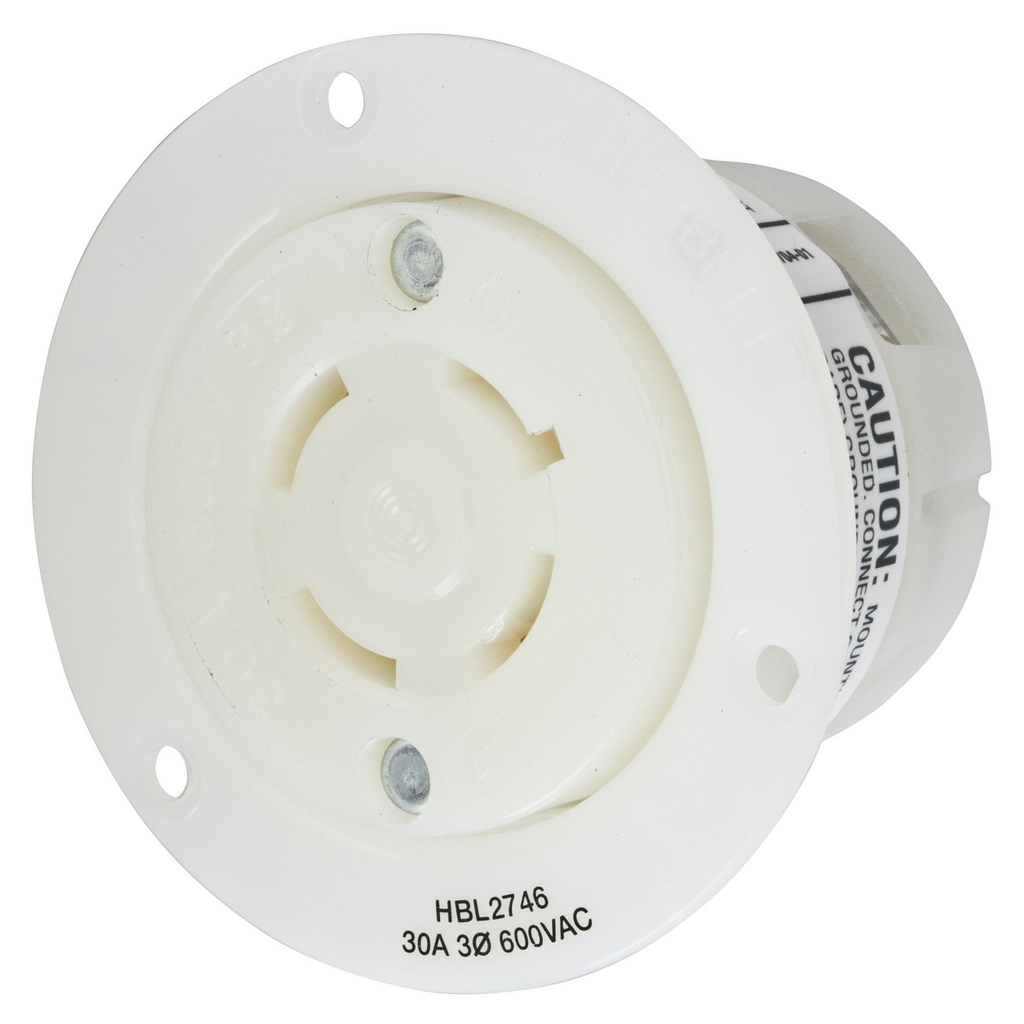

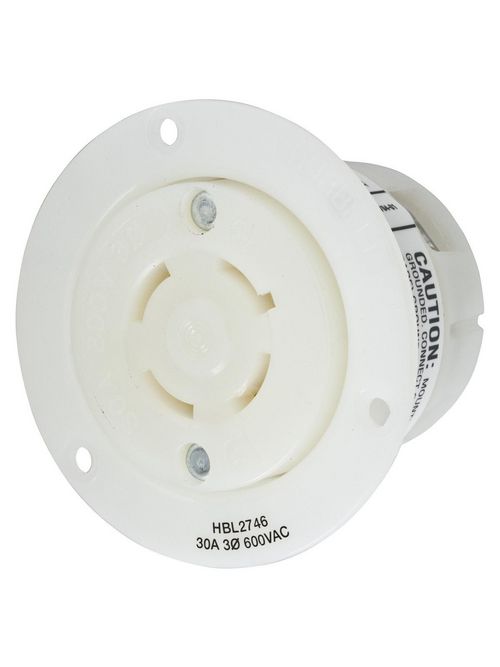

Hubbell Wiring Devices HBL2746 30 Amp 600 Volt 3-Pole 4-Wire NEMA L17-30R White Locking Flanged Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2746
North Coast Part # 10882


  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard


  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Dimensions: 3.06 in x 3.06 in x 2.27 in
  • Each - Height: 2.678 in
  • Each - Length: 3.798 in
  • Each - Width: 3.238 in
  • Height: 2.27 in
  • Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
  • Length: 3.06 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Application: Heavy Duty Industrial
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: L17-30R
  • Number of Poles: 3-Pole
  • Number of Wires: 4-Wire
  • Phase: Three Phase
  • Size: 3.06 in x 3.06 in x 2.27 in
  • Special Features: Standard
  • Standard: Certified to CSA C22.2 No.42; Fed.Spec. W-C-596; Listed to UL 498
  • Type: Flanged Receptacle
  • Voltage Rating: 3 Phase 600 VAC
  • Wattage: 18000 W
  • Wire Size: #16 AWG to #8 AWG
  • Voltage Rating Description: 3 Phase 600 VAC
  • Width: 3.06 in


  • EU RoHS Indicator: Yes


UPC 78358503942
Item Long Description Locking Devices, Twist-Lock, Industrial, Flanged Receptacle, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, L17-30R, Screw Terminal, White
GTiN 00783585039428
Length 3.06 in
Width 3.06 in
Size 3.06 in x 3.06 in x 2.27 in
Color White
Voltage 600 Volt
Type Single, Standard, Insulgrip
Material Thermoplastic
Conductor Size 12-8 AWG
Applications Heavy Duty Industrial
Mounting Type Recessed/Flush, Screw
Height 2.27 in
Weight 0.35 lb
Wire Size 16 AWG-8 AWG
Wattage 18000 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminal
Current 30 A
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Number of Poles 3 Pole
Number of Wires 4-Wire Grounding
Sub Brand Twist-Lock
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
