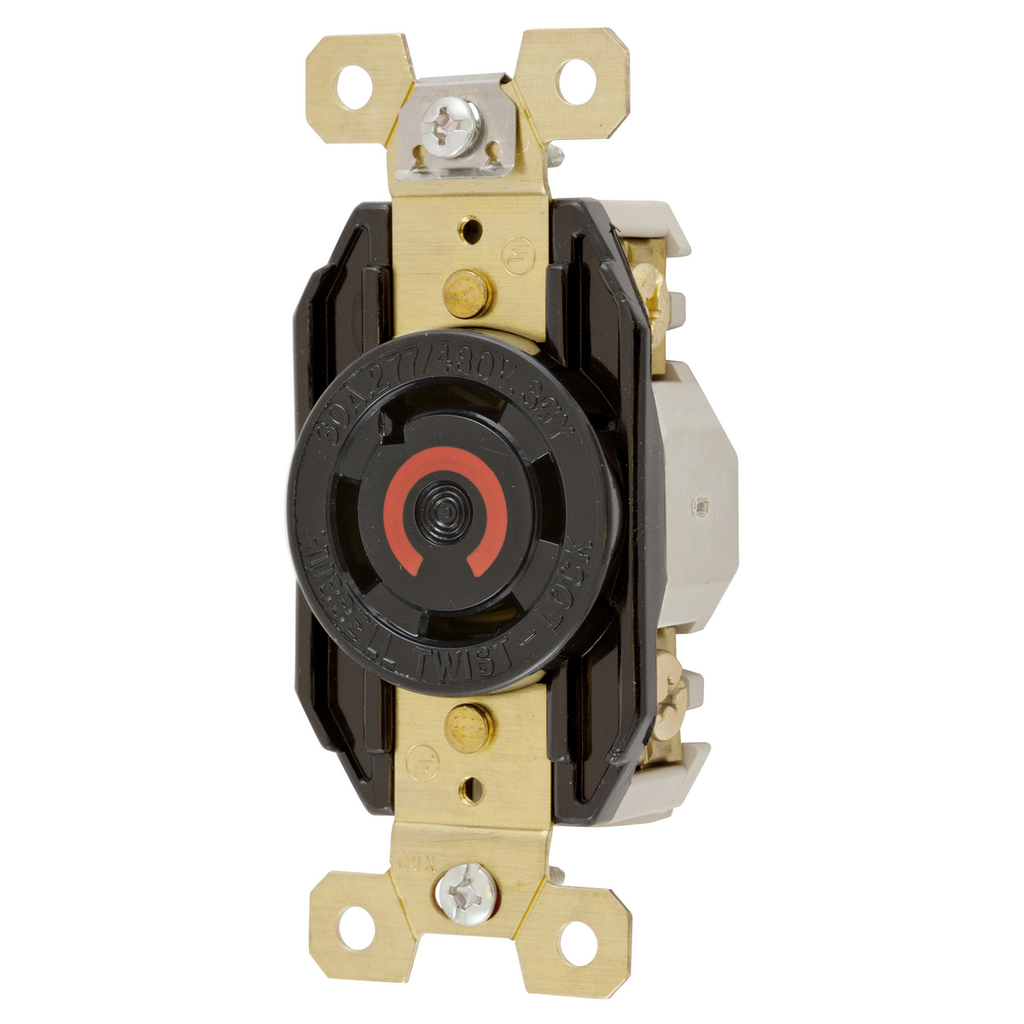

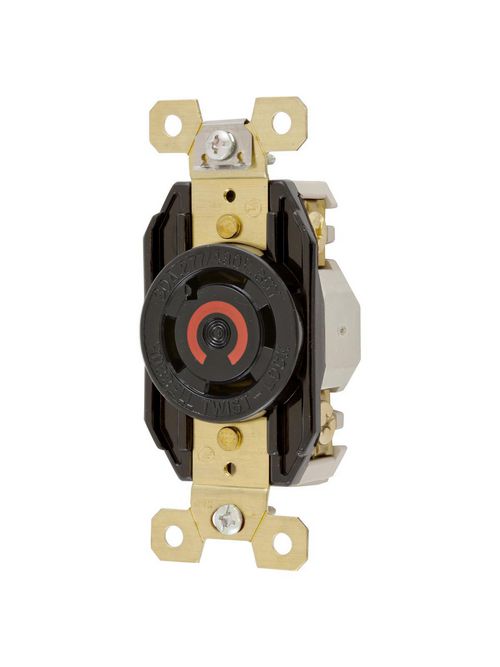

Hubbell Wiring Devices HBL2760 30 Amp 277/480 VAC 4-Pole 4-Wire NEMA L19-30R Black Single Flush Locking Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$104.75/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2760
North Coast Part # 10973

Features

  • High-impact, abuse-resistant nylon face
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Standard

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Dimensions: 3.28 in x 1.7 in x 1.31 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.31 in
  • Horsepower - Maximum: 5
  • Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
  • Length: 3.28 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Application: Heavy Duty Industrial
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: L19-30R
  • Number of Poles: 4-Pole
  • Number of Wires: 4-Wire
  • Phase: Three Phase
  • Size: 3.28 in x 1.7 in x 1.31 in
  • Special Features: Standard
  • Standard: Certified to CSA C22.2 No.42; Fed.Spec. W-C-596; Listed to UL 498
  • Type: Single Flush Receptacle
  • Voltage Rating: 3 Phase WYE 277/480 VAC
  • Wattage: 14400 W
  • Wire Size: #16 AWG to #8 AWG
  • Voltage Rating Description: 3 Phase WYE 277/480 VAC
  • Width: 1.7 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358523621
Item Long Description Locking Devices, Twist-Lock, Industrial, Flush Receptacle, 30A 3-Phase Wye 277/480V AC, 4-Pole 4-Wire Non- Grounding, L19-20R, Screw Terminal, Black.
GTiN 00783585236216
Length 3.28 in
Width 1.7 in
Size Standard
Color Black
Voltage 480 Volt
Type Standard
Material Thermoplastic
Applications Heavy Duty Industrial
Height 1.31 in
Weight 0.3 lb
Wire Size 16 AWG-8 AWG
Wattage 14400 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminal
Current 30 A
Number of Poles 4 Pole
Number of Wires 4
Sub Brand Twist-Lock
Conductor Size 12-8 AWG
Mounting Type Screw, Recessed/Flush
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
