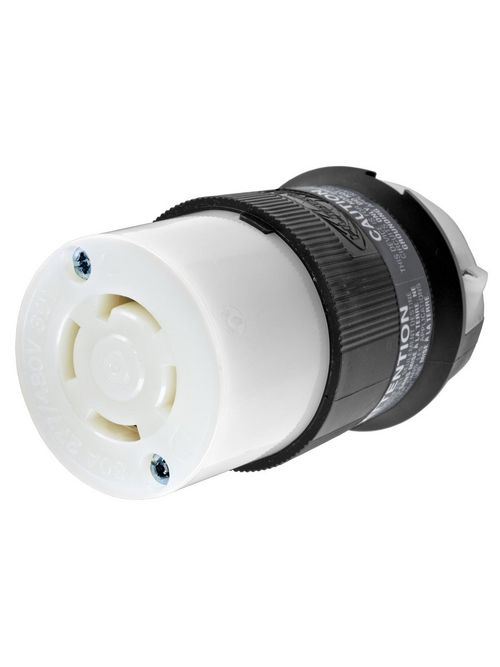

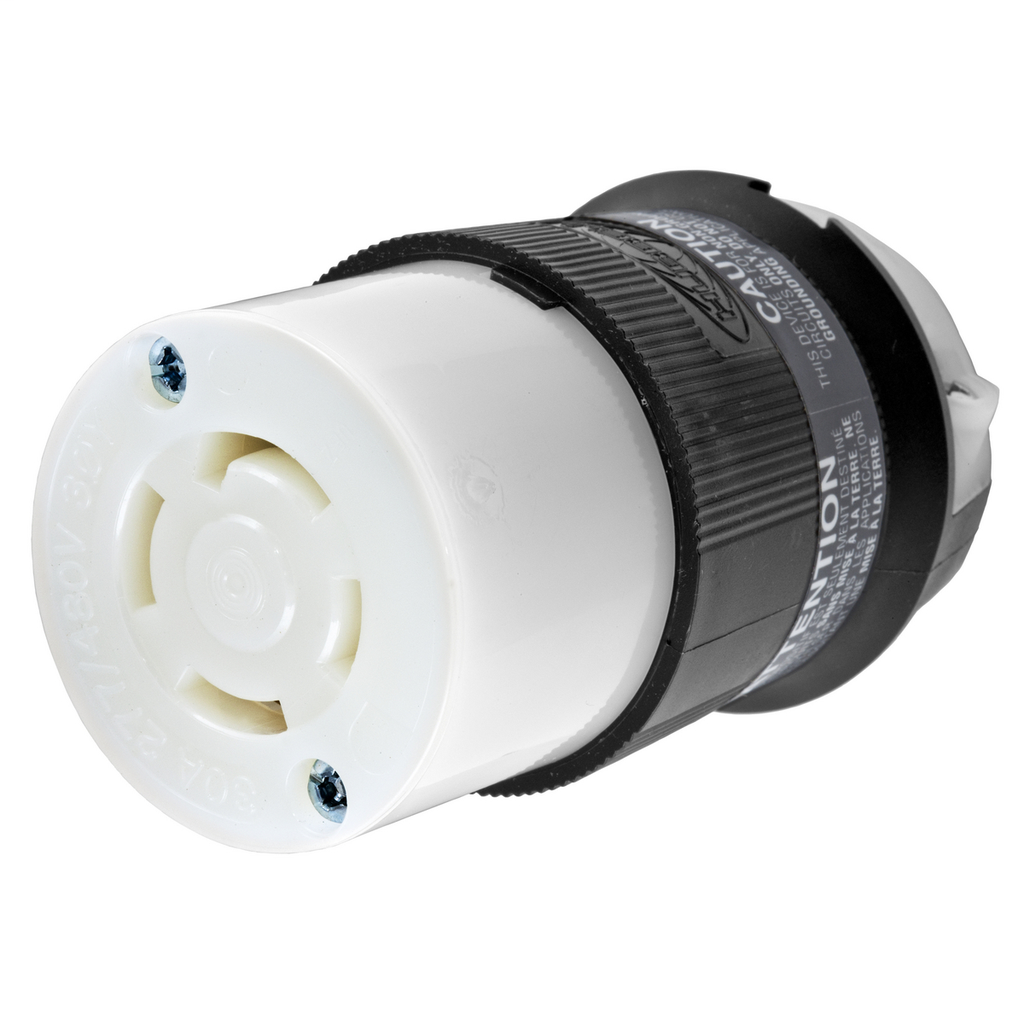

Hubbell Wiring Devices HBL2763 30 Amp 277/480 VAC 4-Pole 4-Wire NEMA L19-30R Black and White Locking Connector Body
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$166.93/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2763
North Coast Part # 11008

Features

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Dimensions: 2.33 in x 2.33 in x 3.86 in
  • Each - Height: 2.418 in
  • Each - Length: 3.978 in
  • Each - Width: 2.418 in
  • Height: 3.86 in
  • Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
  • Length: 2.33 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Application: Heavy Duty Industrial
  • Color: Black, White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • NEMA Rating: L19-30R
  • Number of Poles: 4-Pole
  • Size: 2.33 in x 2.33 in x 3.86 in
  • Special Features: Standard Product
  • Standard: Certified to CSA C22.2 No.42; Fed.Spec. W-C-596; Listed to UL 498
  • Type: Connector Body
  • Voltage Rating: 3 Phase WYE 277/480 VAC
  • Voltage Rating Description: 3 Phase WYE 277/480 VAC
  • Width: 2.33 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358503948
Item Long Description Locking Devices, Twist-Lock, Industrial, Female Connector Body, 30A 3-Phase Wye 277/480V AC, 4-Pole 4-Wire Non- Grounding, L19-30R, Screw Terminal, Black and White
GTiN 00783585039480
Length 2.33 in
Width 2.33 in
Size 2.33 in x 2.33 in x 3.86 in
Color Black/White
Voltage 480 Volt
Type Connector Body
Material Nylon
Number of Conductors 4-Wire Non-Grounding
Applications Heavy Duty Industrial
Height 3.86 in
Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact, -25? with impact.
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminal
Current 30 A
Number of Poles 4 Pole
Number of Wires 4
Sub Brand Twist-Lock
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Environmental Conditions Indoor Dry Unless Protected By Additional Means
