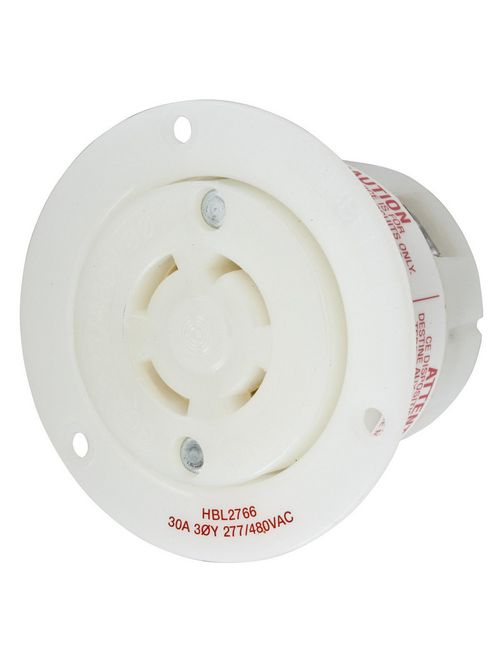

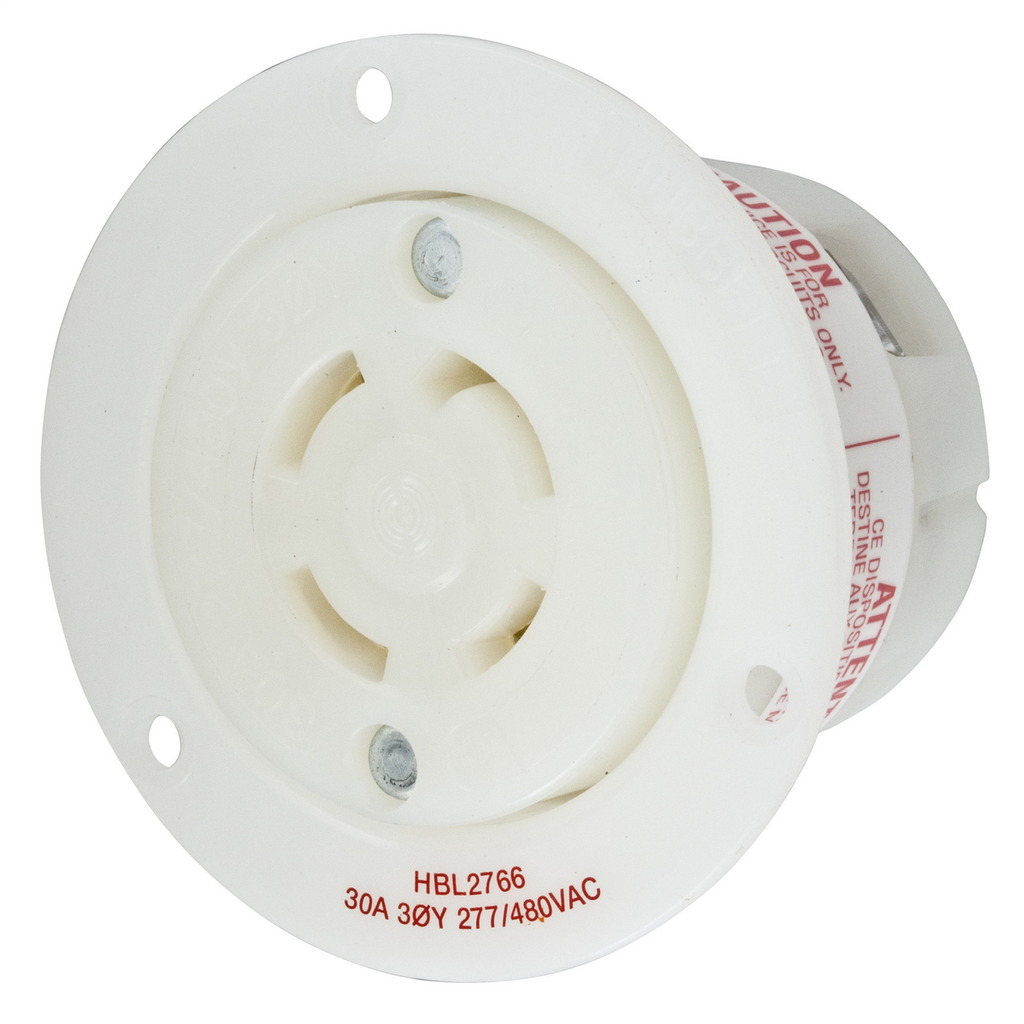

HCI HBL2766 LKG FLG-RCPT, 30A 3PH 2
$105.43/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2766
North Coast Part # 11029

Features

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included

Specifications

General

  • Application: Insulgrip
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 5
  • Item Type: 30A Non- Grounding Insulgrip® Flanged Receptacle
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Flanged Receptacle
  • UPC: 783585039503

Dimensions

  • Dimensions: 3.06 in x 3.06 in x 2.27 in
  • Display Size: Standard Sized Product
  • Height: 2.27 in
  • Length: 3.06 in
  • Weight: 0.35 lb
  • Width: 3.06 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Back Wired Screw Terminals
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Three Phase
  • Voltage Rating: 3 Phase WYE 277/480 VAC
  • Voltage Rating Description: 3 Phase WYE 277/480 VAC
  • Wattage: 14400 W

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L19-30R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358503950
GTiN 00783585039503
Length 3.06 in
Width 3.06 in
Size Standard Sized
Color White
Voltage 480 Volt
Type Flanged Single
Material Nylon
Applications Insulgrip
Height 2.27 in
Weight 0.35 lb
Wire Size 12-8 AWG
Wattage 14,400 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminal
Current 30 A
Number of Poles 4 Pole
Number of Wires 4
Sub Brand Twist-Lock
Standard UL 498,CSA C22.2 No.42,Fed.Spec. W-C-596
