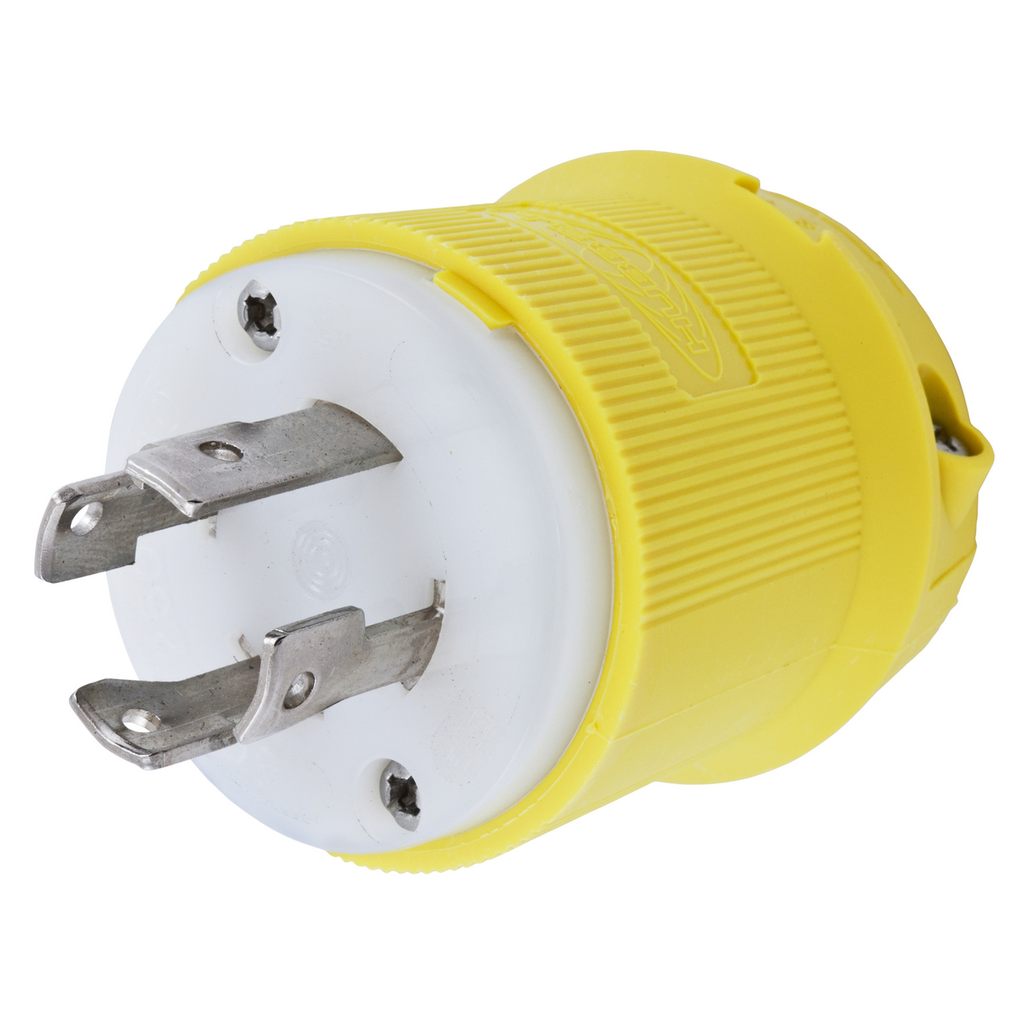

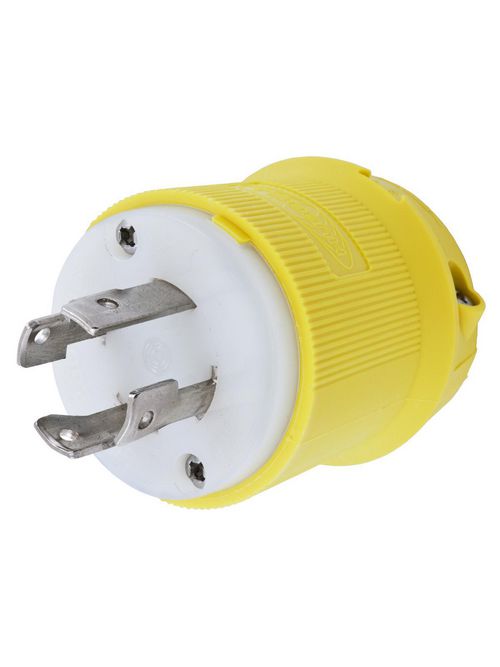

HCI HBL27CM21 LKG PLUG, CM, 30A 3PH
Product image thumbnail 0
Product image thumbnail 1
$78.24/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL27CM21
North Coast Part # 213893

Features

  • Nickel plated blades and stainless steel screws provide maximum corrosion resistance.
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Specifications

General

  • Application: Extra Heavy Duty Industrial/Marine
  • Color: Yellow
  • Cord Range: 0.350"-1.150" (9-29)
  • Environmental Conditions: Corrosion Resistant
  • Horsepower - Maximum: 3
  • Item Type: 30A Corrosion Resistant Insulgrip® Plug
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Plugs
  • UPC: 783585039572

Dimensions

  • Dimensions: 2.33 in x 2.33 in x 2.75 in
  • Display Size: Standard Sized
  • Height: 2.75 in
  • Length: 2.33 in
  • Weight: 0.30 lb
  • Width: 2.33 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Three Phase
  • Voltage Rating: 250 VAC
  • Voltage Rating Description: 250 VAC
  • Wattage: 7500 W

Conductor Related

  • Cable Range: 0.350 - 1.150 in
  • Cord Type: All Listed Portables
  • Number Of Wires: 4-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Listed to UL 498 | Fed.Spec. W-C-596 | Certified to CSA C22.2 No.42
  • Nema Rating: L15-30P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358503957
GTiN 00783585039572
Length 2.33 in
Width 2.33 in
Size 2.33 in x 2.33 in x 2.75 in
Color Yellow
Voltage 250 Volt
Type Standard Sized
Material Nylon
Conductor Size 16-8 AWG
Cord Type Portable
Applications Extra Heavy Duty Industrial/Marine
Mounting Type Cord
Height 2.75 in
Weight 0.30 lb
Wire Size 16 AWG-8 AWG
Wattage 7500 Watt
Temperature Rating -40 to 75 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Yes
TC Connection Terminal Screws
Dielectric Strength 2000 V
Current 30 A
Blade Dimensions 2-3/4 in L x 2.33 in W x 2.33 in H
Cord Size 0.35 - 1.15 in
Environmental Conditions Corrosion-Resistant
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Twist-Lock, Insulgrip
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
