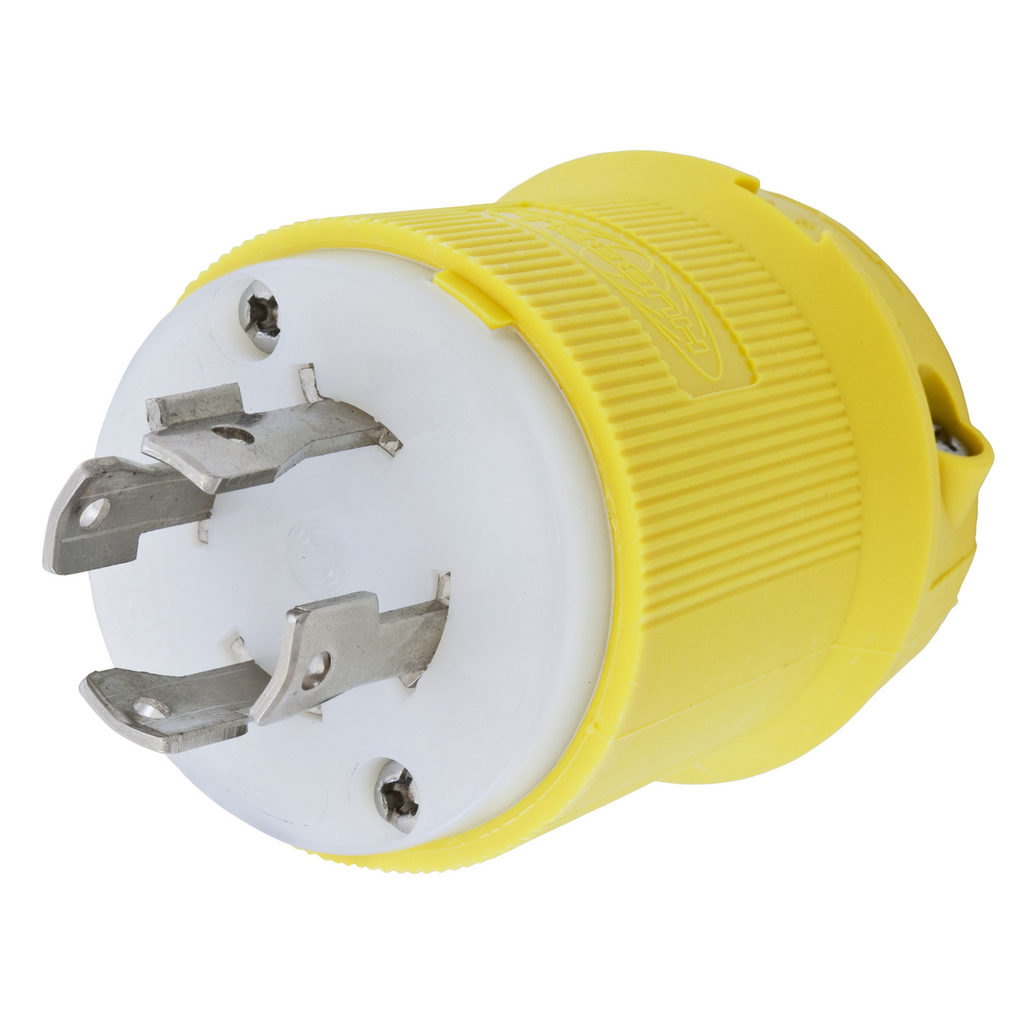

HCI HBL27CM41 LKG PLUG, CM, 30A 3PH
$88.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL27CM41
North Coast Part # 214115

Features

  • Nickel plated blades and stainless steel screws provide maximum corrosion resistance.
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Specifications

General

  • Application: Heavy Duty Industrial/Marine
  • Color: Yellow
  • Cord Range: 0.350"-1.150" (9-29)
  • Environmental Conditions: Corrosion Resistant
  • Item Type: 30A Corrosion Resistant Insulgrip® Plug
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Plugs
  • UPC: 783585039619

Dimensions

  • Dimensions: 2.33 in x 2.33 in x 2.75 in
  • Display Size: Standard Sized
  • Height: 2.75 in
  • Length: 2.33 in
  • Weight: 0.35 lb
  • Width: 2.33 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Three Phase
  • Voltage Rating: 600 VAC
  • Voltage Rating Description: 600 VAC
  • Wattage: 18000 W

Conductor Related

  • Cable Range: 0.350 - 1.150 in
  • Cord Type: All Listed Portables
  • Number Of Wires: 4-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Listed to UL 498 | Fed.Spec. W-C-596 | Certified to CSA C22.2 No.42
  • Nema Rating: L17-30P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358503961
GTiN 00783585039619
Length 2.33 in
Width 2.33 in
Color Yellow
Voltage 600 Volt
Type Standard Sized
Material Nylon
Height 2.75 in
Weight 0.35 lb
Wattage 18,000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Current 30 A
Number of Poles 3 Pole
Number of Wires 4
Conductor Size 16-8 AWG
Applications For Heavy Duty Industrial/Marine Applications
Mounting Type Cord
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Temperature Rating -40 to 75 C
Grounding Yes
Contact Material Nickel Plated Brass
Blade Dimensions 2.33 in L x 2.33 in W x 2-3/4 in H
Cord Size 0.35 - 1.15 in
Environmental Conditions Corrosion-Resistant
Sub Brand Twist-Lock, Insulgrip
Size 2.33 in x 2.33 in x 2.75 in
Cord Type All Listed Portables
Wire Size 16 AWG-8 AWG
