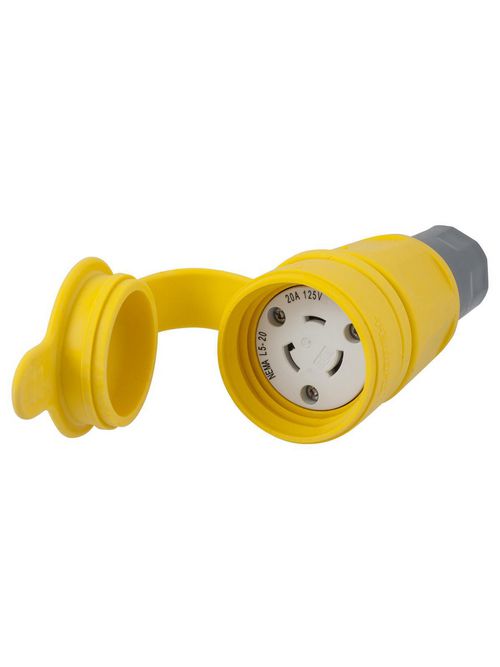

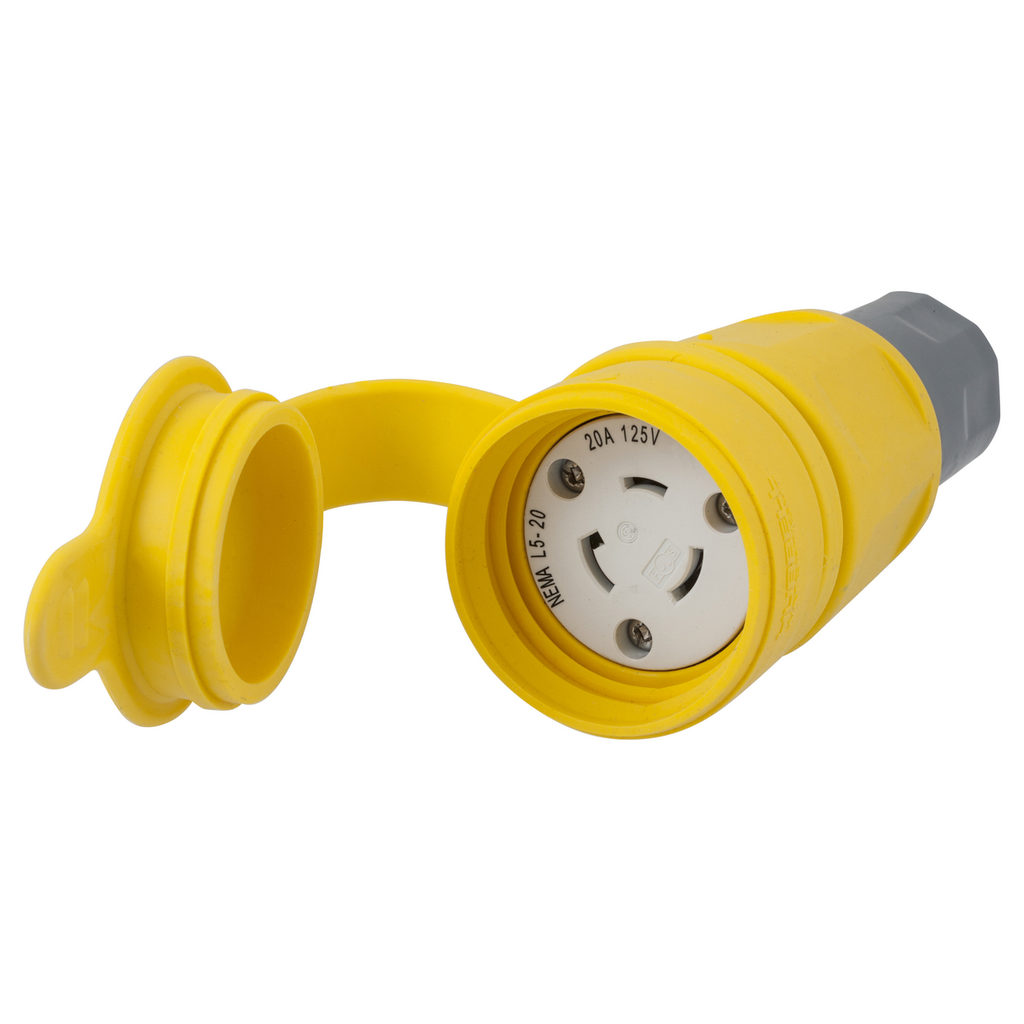

Hubbell Wiring Devices HBL27W47 20 Amp 125 Volt 2-Pole 3-Wire NEMA L5-20R Yellow Locking Connector
Product image thumbnail 0
Product image thumbnail 1
$79.36/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL27W47
North Coast Part # 1094156

Features

  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points

Specifications

General

  • Color: Yellow
  • Item Type: 20A Watertight Twist-Lock® Connector
  • Number Of Poles: 2-Pole
  • Performance: Electrical - Current Interrupting - Rated for current interruption per UL498 | Electrical - Dielectric Voltage - 2500V AC | Electrical - Max Working Voltage - As marked | Electrical - Temperature Rise - 30°C max per UL498 at rated current | Environmental - UV resistance - All exposed materials are UV stabilized | Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P | Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous | Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
  • Type: Connector Body
  • UPC: 783585131467

Dimensions

  • Dimensions: 2.51 in x 2.51 in x 5.69 in
  • Height: 5.69 in
  • Length: 2.51 in
  • Width: 2.51 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Current / Amperage Rating: 20 A
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S

Certifications and Compliance

  • Industry Standard(s): Meets NEMA WD-1, WD-6 And ANSI Standards
  • Nema Rating: L5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358513146
GTiN 00783585131467
Length 5.69 in
Width 2.51 in
Size 2.51 in x 2.51 in x 5.69 in
Color Yellow
Voltage 125 Volt
Type Industrial Grade
Diameter 2.51 in
Material Thermoplastic Elastomer
Number of Conductors 3
Conductor Size 3/8 - 7/8 in
Applications Industrial/Commercial
Height 5.69 in
Connection Type Screw
Temperature Rating -40 to 60 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Number of Ports 2
Contact Material Nickel Plated Brass
TC Connection Terminal Screws
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Standard ANSI Standards,Meets NEMA WD-1,WD-6
Environmental Conditions Water Tight
