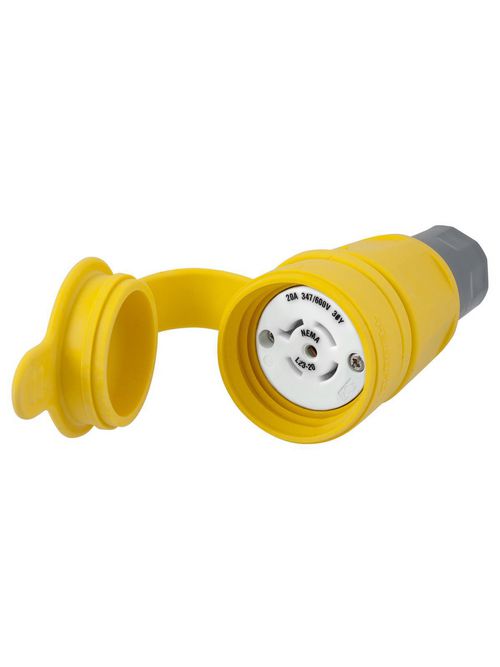

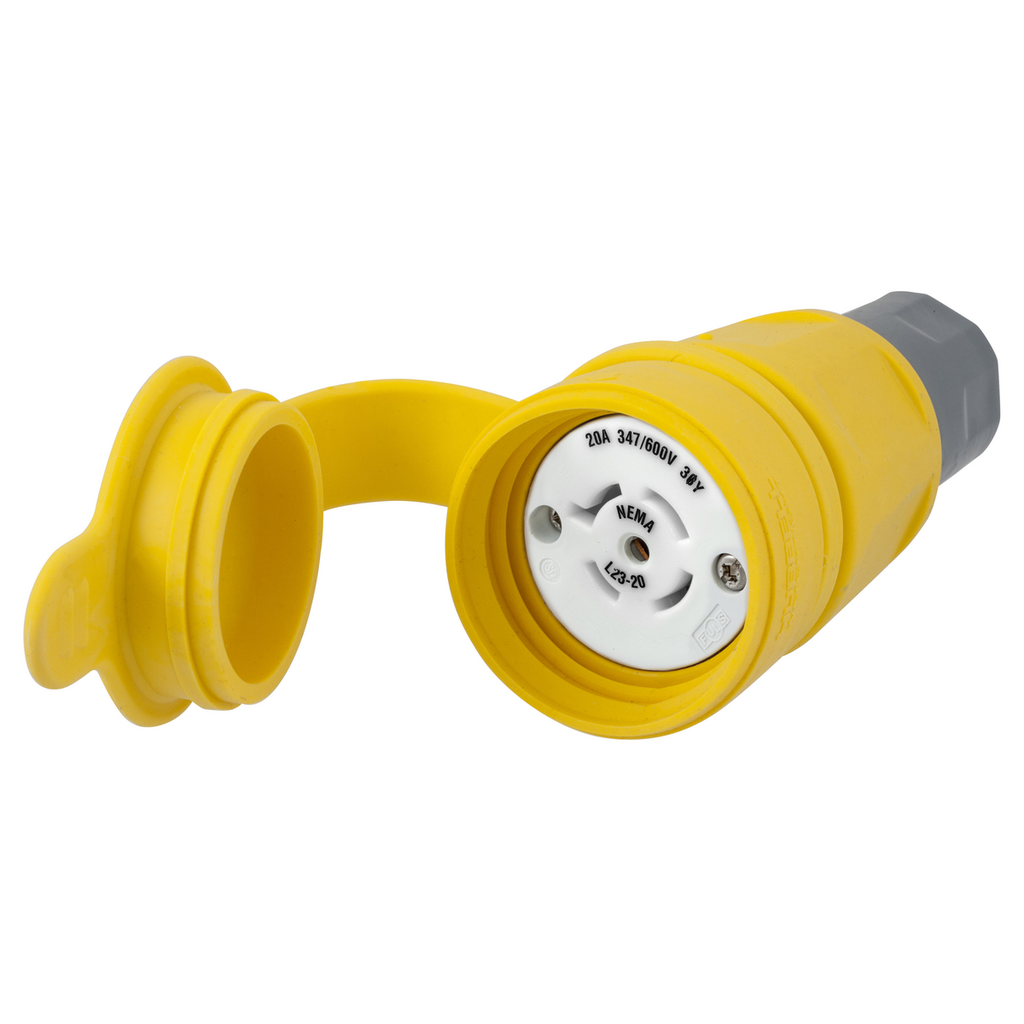

HCI HBL27W83 CONN, W/TIGHT,3P 20A 3
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$175.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL27W83
North Coast Part # 1831033

Features

  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 20 A
  • Dimensions: 2.51 in x 2.51 in x 5.69 in
  • Each - Height: 2.700 in
  • Each - Length: 13.500 in
  • Each - Width: 9.000 in
  • Height: 5.69 in
  • Industry Standard(s): Meets NEMA WD-1, WD-6 And ANSI Standards
  • Length: 2.51 in
  • Performance: Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous;Mechanical - Cord Accommodation - 0.375"-0.875" (9.5-22.2)
  • Amperage Rating: 20 A
  • Color: Yellow
  • NEMA Rating: L23-20R
  • Number of Poles: 4-Pole
  • Size: 2.51 in x 2.51 in x 5.69 in
  • Standard: Meets NEMA WD-1, WD-6 And ANSI Standards
  • Type: Connector Body
  • Voltage Rating: 3-Phase Y 347/600 VAC
  • Voltage Rating Description: 3-Phase Y 347/600 VAC
  • Width: 2.51 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

GTiN 00783585131863
Length 13.5 Inch
Width 2.51 in
Size Standard
Color Yellow
Voltage 600 Volt
Type Elastomeric
Material Elastomer
Number of Conductors 5-Wire Grounding
Applications Industrial/Commercial
Height 2.7 Inch
Temperature Rating -40 to 75 F
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Current 20 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Twist-Lock
Product UPC 78358513186
Conductor Size 14-12 AWG
Mounting Type Cord
Standard ANSI Standards,Meets NEMA WD-1,WD-6
Grounding Grounding
Environmental Conditions Water Tight
Country of Origin USA
