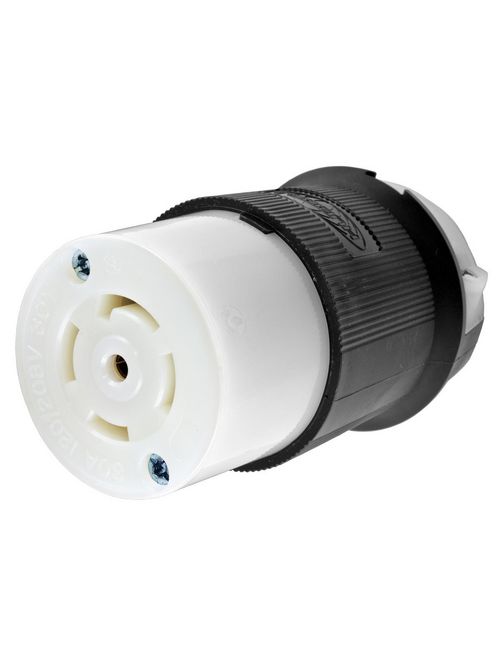

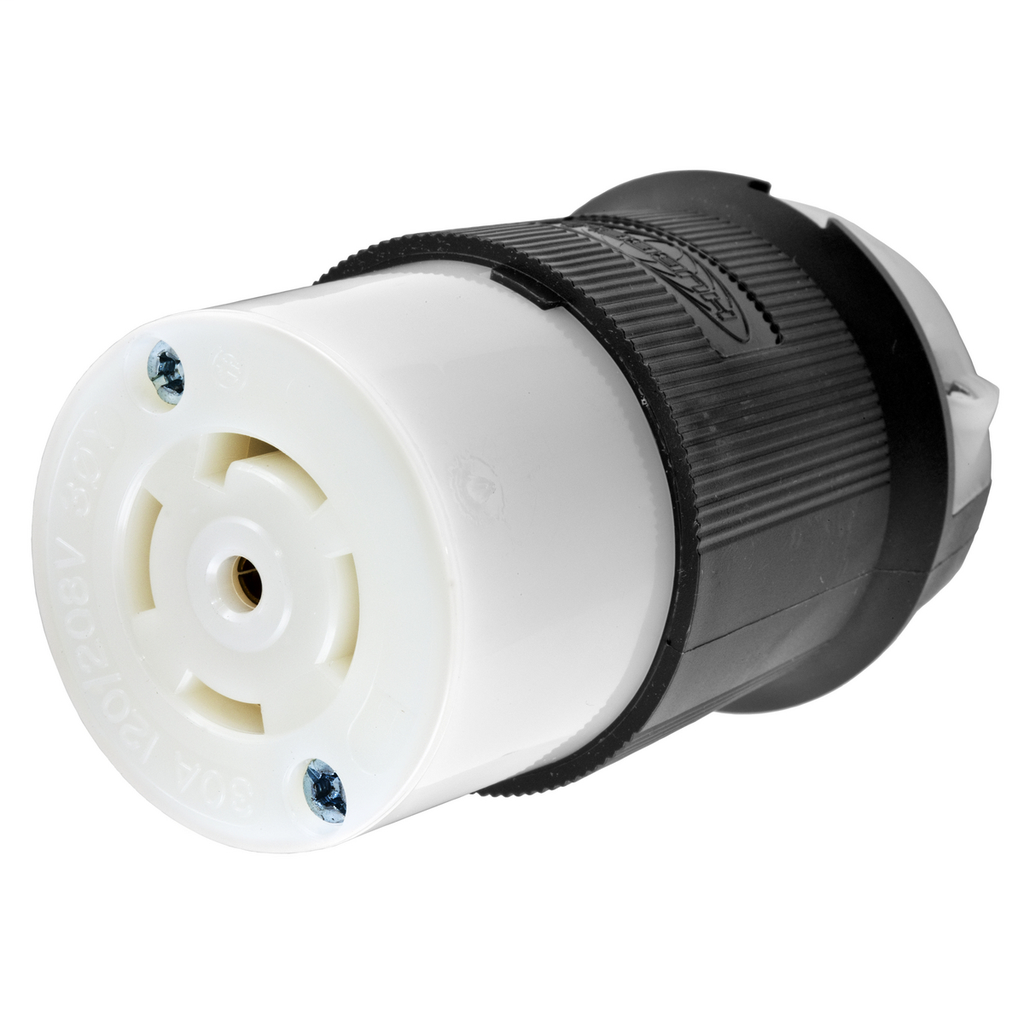

Hubbell Wiring Devices HBL2813 30 Amp 120/208 VAC 4-Pole 5-Wire NEMA L21-30R Black and White Locking Connector Body
$120.39/ea
In Stock | 42 available at 6 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2813
North Coast Part # 11385

Features

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants.

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Black, White
  • Cord Range: 0.350"-1.150" (9-29)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 30A Insulgrip® Connector
  • Listings: UL 498 | Fed.Spec. W-C-596 | CSA C22.2 No.42
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical-Current Interrupting - Certified at full rated current | Electrical - Dielectric Voltage - 2,000V minimum | Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6 | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum -40°C (w/o impact)
  • UPC: 783585039657

Dimensions

  • Dimensions: 2.33 in x 2.33 in x 3.86 in
  • Display Size: Standard
  • Height: 3.86 in
  • Length: 2.33 in
  • Weight: 0.40 lb
  • Width: 2.33 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: 3 Phase WYE
  • Voltage Rating: 120/208 VAC
  • Voltage Rating Description: 120/208 VAC

Conductor Related

  • Number Of Wires: 5-Wire Grounding
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Fed.Spec. W-C-596 | Listed to UL 498 | Certified to CSA, C22.2, No. 42
  • Nema Rating: L21-30R

Logistics

  • Carton Quantity: 30

Overview

UPC 78358503965
GTiN 00783585039657
Length 2.33 in
Width 2.33 in
Size Standard
Color Black and White
Voltage 120/208 Volt
Type Female, Standard
Material Composite
Number of Conductors 5
Conductor Size 12-8 AWG
Applications Heavy Duty Industrial
Height 3.86 in
Weight 0.40 lb
Connection Type Pressure Screw
Temperature Rating -25 to 75 C with Impact, -40 to 75 C without Impact
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 30
Number of Ports 4
TC Connection Pressure Screw Terminal
Current 30 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Twist-Lock, Insulgrip
Standard C22.2,CSA,Fed.Spec. W-C-596,No. 42,UL 498
