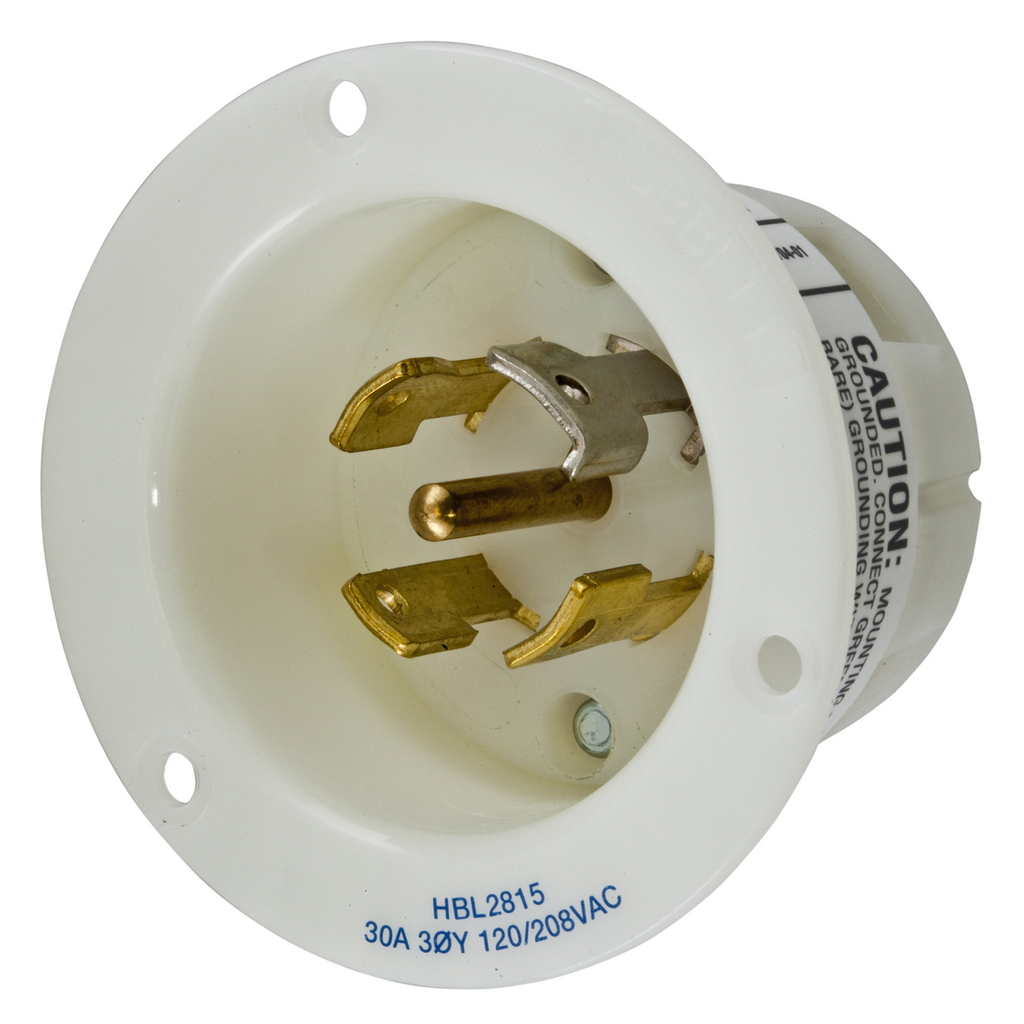

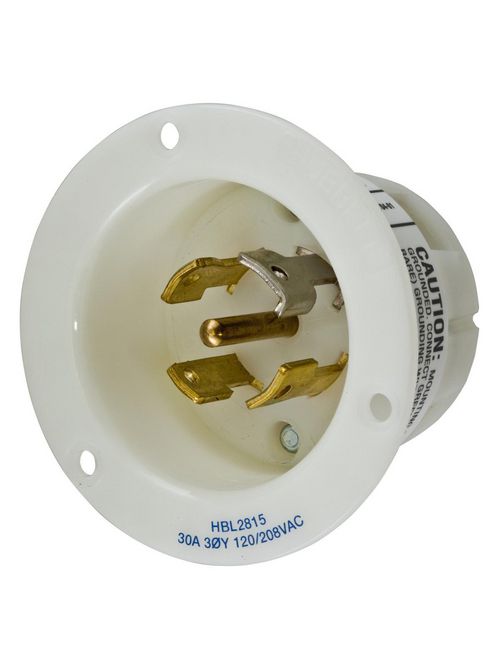

Hubbell Wiring Devices HBL2815 30 Amp 120/208 VAC 4-Pole 5-Wire NEMA L21-30P White Locking Flanged Inlet
Product image thumbnail 0
Product image thumbnail 1
$84.22/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2815
North Coast Part # 11410

Features

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included

Specifications

General

  • Application: Extra Heavy Duty Industrial
  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 30A Grounding Insulgrip® Flanged Inlet
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 499
  • Type: Flanged Inlet
  • UPC: 783585039671

Dimensions

  • Dimensions: 3.06 in x 3.06 in x 2.27 in
  • Display Size: Standard Sized Product
  • Height: 2.27 in
  • Length: 3.06 in
  • Weight: 0.30 lb
  • Width: 3.06 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Back Wired Screw Terminals
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: 3 Phase WYE
  • Voltage Rating: 3 Phase WYE 120/208 VAC
  • Voltage Rating Description: 3 Phase WYE 120/208 VAC
  • Wattage: 6240 W

Conductor Related

  • Number Of Wires: 5-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L21-30P

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 78358503967
GTiN 00783585039671
Length 3.06 in
Width 3.06 in
Size 3.06 in x 3.06 in x 2.27 in
Color White
Voltage 208 Volt
Type Standard, Single
Material Composite
Number of Conductors 5
Conductor Size 12-8 AWG
Applications Extra Heavy Duty Industrial
Height 2.27 in
Weight 0.30 lb
Wire Size 16 AWG-8 AWG
Connection Type Screw Terminal
Wattage 6240 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Number of Ports 4
TC Connection Screw Terminals
Current 30 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Twist-Lock, Insulgrip
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
