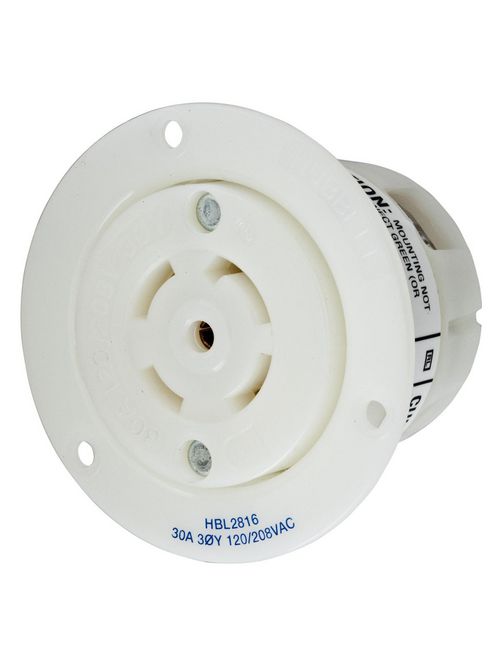

Hubbell Wiring Devices HBL2816 30 Amp 120/208 VAC 4-Pole 5-Wire NEMA L21-30R White Locking Flanged Receptacle
Product image thumbnail 0
Product image thumbnail 1
$157.63/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2816
North Coast Part # 11434

Features

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 3
  • Item Type: 30A Insulgrip® Flanged Receptacle
  • Listings: UL 498 | Fed.Spec. W-C-596 | CSA C22.2 No.42
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical-Current Interrupting - Certified at full rated current | Electrical - Dielectric Voltage - 2,000V minimum | Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 | Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum -40°C (w/o impact)
  • UPC: 783585039688

Dimensions

  • Dimensions: 3.06 in x 3.06 in x 2.46 in
  • Display Size: Standard Sized Product
  • Height: 2.46 in
  • Length: 3.06 in
  • Weight: 0.35 lb
  • Width: 3.06 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Back Wired Screw Terminals
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: 3 Phase WYE
  • Voltage Rating: 120/208 VAC
  • Wattage: 6240 W

Conductor Related

  • Number Of Wires: 5-Wire Grounding
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L21-30R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358503968
GTiN 00783585039688
Length 3.06 in
Width 3.06 in
Size 3.06 in x 3.06 in x 2.46 in
Color White
Voltage 120/208 Volt
Type Standard
Material Thermoplastic
Applications Heavy Duty Industrial
Height 2.46 in
Weight 0.35 lb
Wire Size 16 AWG-8 AWG
Wattage 6240 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminal
Current 30 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Twist-Lock
Number of Conductors 5
Conductor Size 12-8 AWG
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Connection Type Screw Terminal
Number of Ports 4
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
