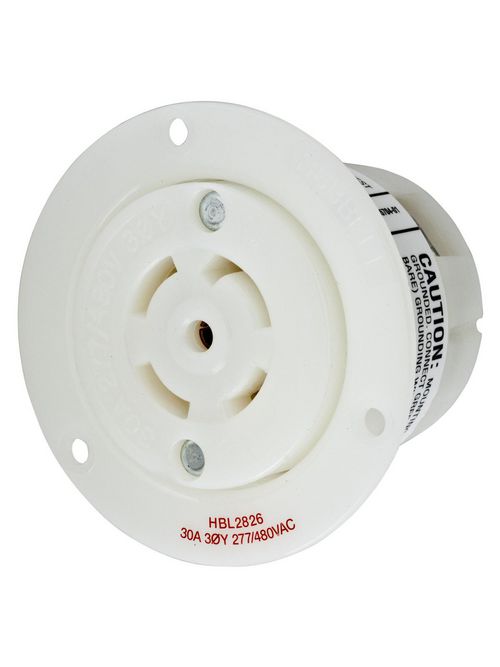

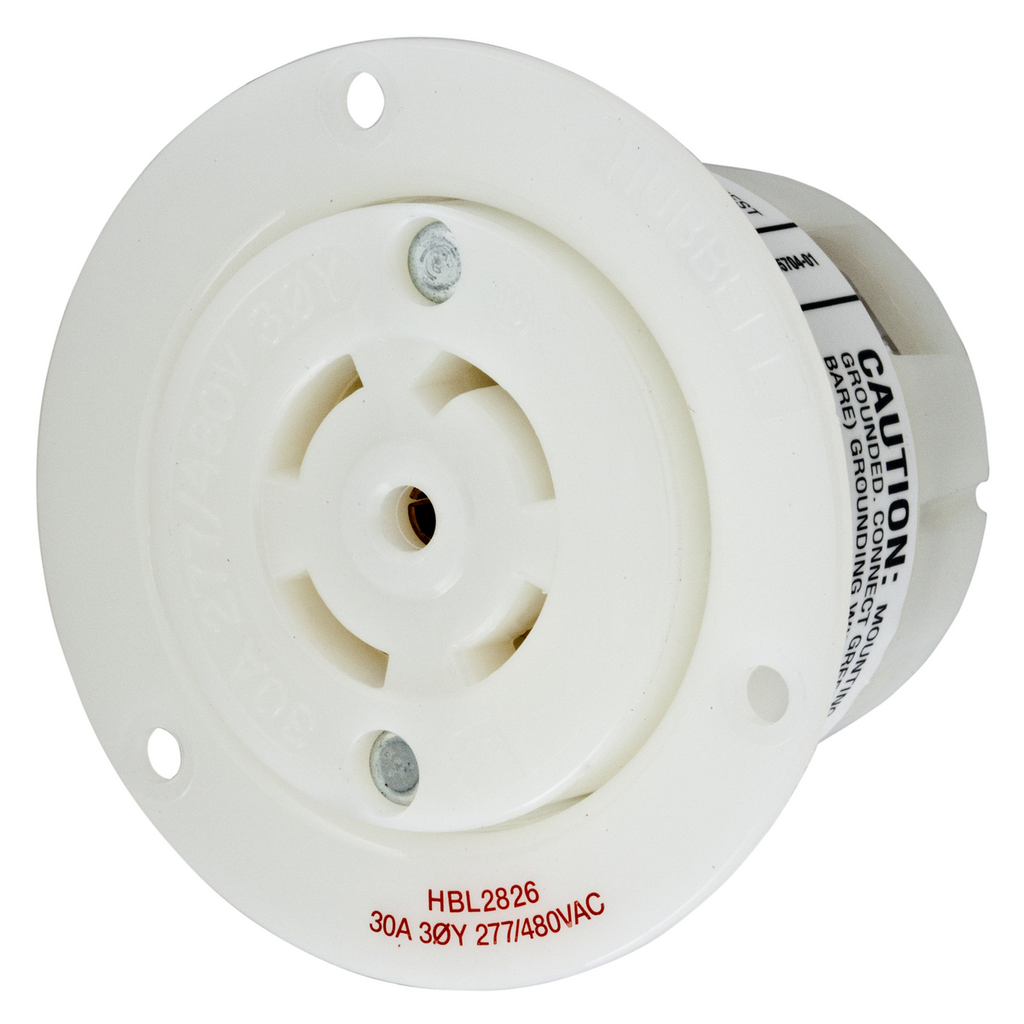

HCI HBL2826 LKG FLG-RCPT, 30A 3PH 2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$184.20/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2826
North Coast Part # 11521

Features

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Dimensions: 3.06 in x 3.06 in x 2.27 in
  • Each - Height: 2.678 in
  • Each - Length: 3.798 in
  • Each - Width: 3.238 in
  • Height: 2.27 in
  • Horsepower - Maximum: 10
  • Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
  • Length: 3.06 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Application: Heavy Duty Industrial
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: L22-30R
  • Number of Poles: 4-Pole
  • Number of Wires: 5-Wire
  • Phase: 3 Phase WYE
  • Size: 3.06 in x 3.06 in x 2.27 in
  • Special Features: Standard
  • Standard: Certified to CSA C22.2 No.42; Fed.Spec. W-C-596; Listed to UL 498
  • Type: Flanged Receptacle
  • Voltage Rating: 3 Phase WYE 277/480 VAC
  • Wattage: 14400 W
  • Wire Size: #16 AWG to #8 AWG
  • Voltage Rating Description: 3 Phase WYE 277/480 VAC
  • Width: 3.06 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358503972
Item Long Description Locking Devices, Twist-Lock, Industrial, Flush Receptacle, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, L23-30R, Screw Terminal, Black
GTiN 00783585039725
Length 3.06 in
Width 3.06 in
Size 3.06 in x 3.06 in x 2.27 in
Color White
Voltage 480 Volt
Type Flanged Receptacle
Material Nylon
Applications Heavy Duty Industrial
Height 2.27 in
Weight 0.4 lb
Wire Size 16 AWG-8 AWG
Wattage 14400 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminal
Current 30 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Twist-Lock Devices
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
