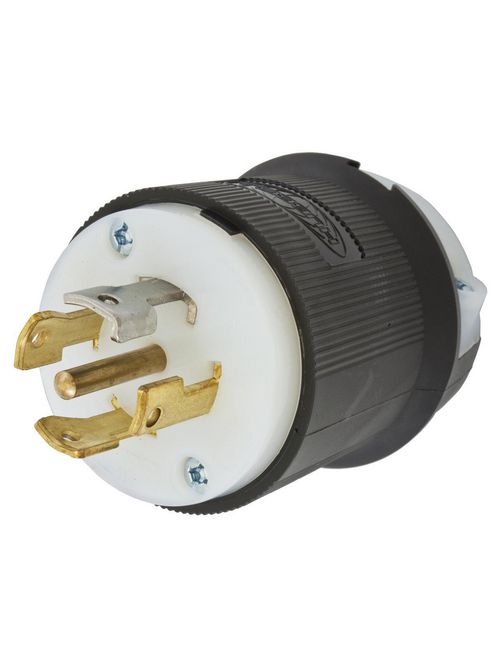

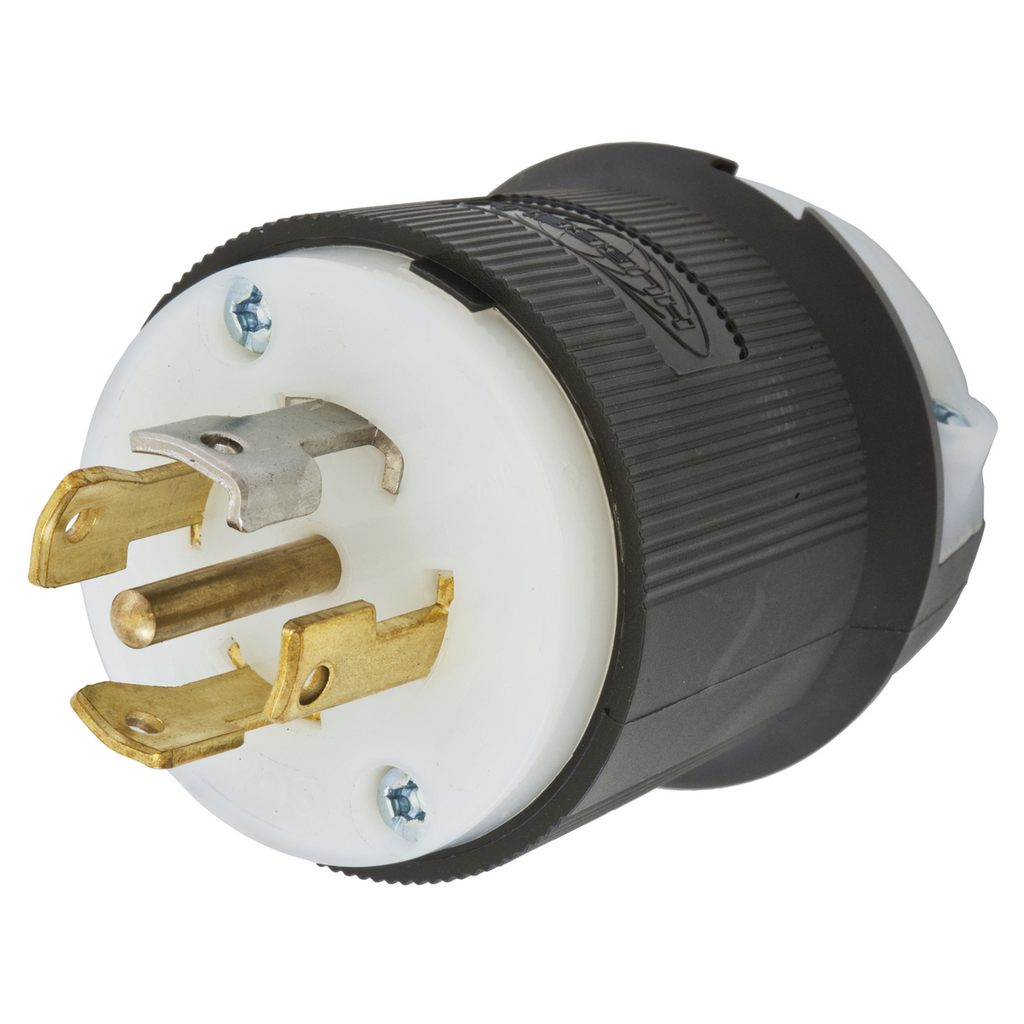

Hubbell Wiring Devices HBL2831 30 Amp 347/600 VAC 4-Pole 5-Wire NEMA L23-30P Black and White Locking Plug
$86.32/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2831
North Coast Part # 11601

Features

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Specifications

General

  • Application: Extra Heavy Duty Industrial
  • Color: Black, White
  • Cord Range: 0.350"-1.150" (9-29)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: 30A Grounding Insulgrip® Plug
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - 2,000V minimum | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Plugs
  • UPC: 783585039732

Dimensions

  • Dimensions: 2.33 in x 2.33 in x 2.75 in
  • Display Size: Standard Sized
  • Height: 2.75 in
  • Length: 2.33 in
  • Weight: 0.35 lb
  • Width: 2.33 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: 3 Phase WYE
  • Voltage Rating: 3 Phase WYE 347/600 VAC
  • Voltage Rating Description: 3 Phase WYE 347/600 VAC
  • Wattage: 18000 W

Conductor Related

  • Cable Range: 0.350 - 1.150 in
  • Cord Type: All Listed Portables
  • Number Of Wires: 5-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L23-30P

Logistics

  • Carton Quantity: 30

Categories

Overview

UPC 78358503973
GTiN 00783585039732
Length 2.33 in
Width 2.33 in
Size Standard Sized Product
Color Black/White
Voltage 600 Volt
Type Standard
Material Nylon
Conductor Size 16-8 AWG
Cord Type Portable
Applications For Extra Heavy Duty Industrial Applications
Mounting Type Surface, Cord
Height 2.75 in
Weight 0.35 lb
Wire Size 10-8 AWG
Wattage 18,000 Watt
Temperature Rating -40 to 75 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 30
Grounding Yes
TC Connection Terminal Screws
Dielectric Strength 2000 V
Current 30 A
Blade Dimensions 2-3/4 in H
Cord Size 0.35 - 1.15 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means, UL94 HB Flammability
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Twist-Lock, Insulgrip
Standard UL 498,CSA C22.2 No.42,Fed.Spec. W-C-596
