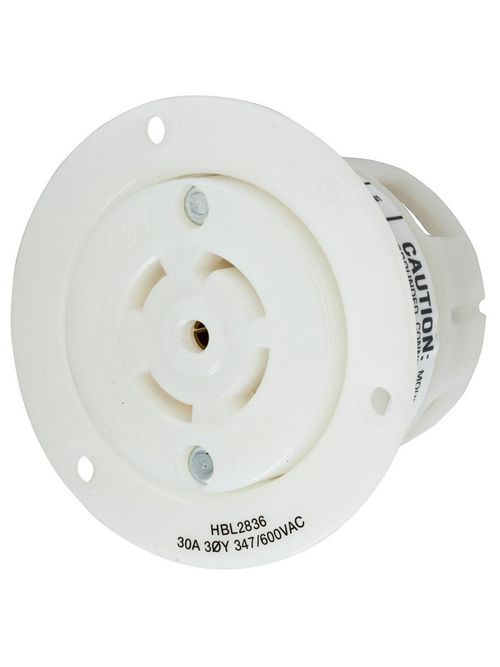

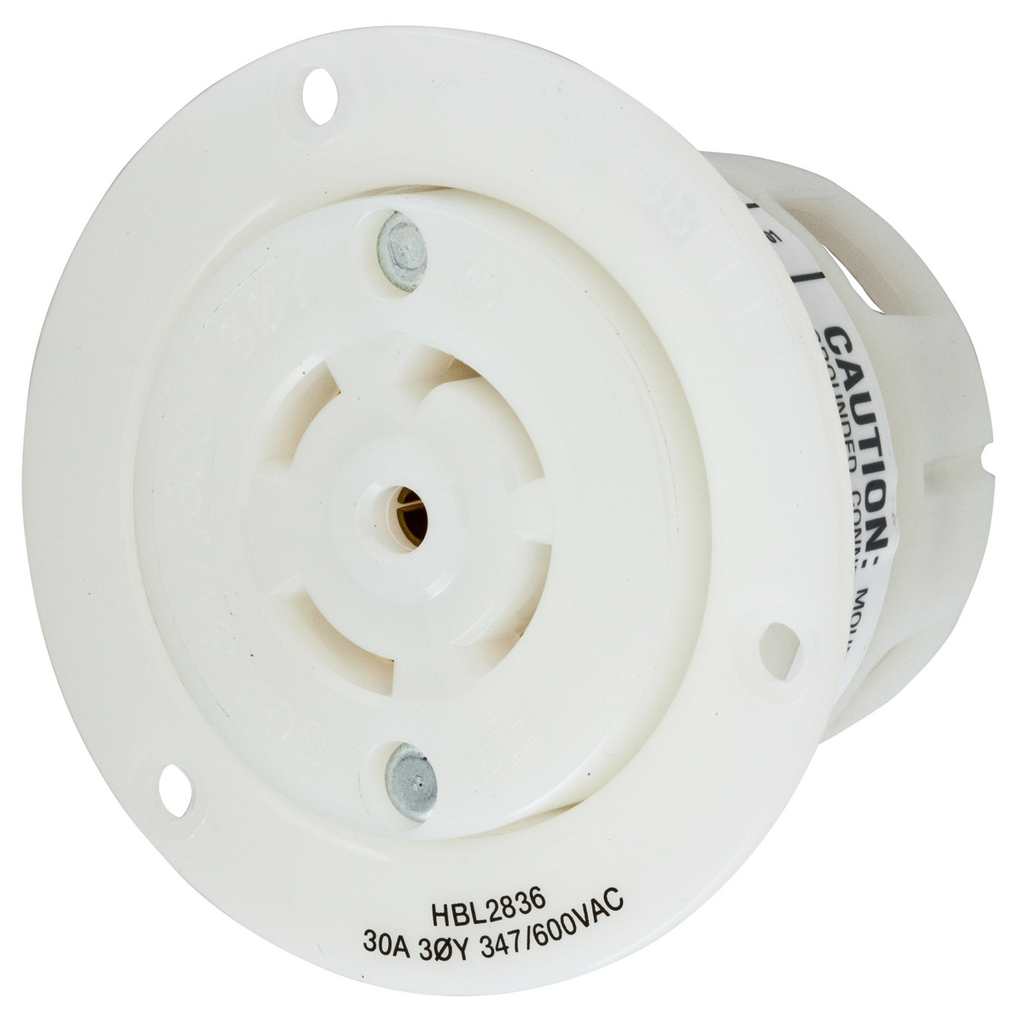

HCI HBL2836 LKG FLG-RCPT, 30A 3PH 3

$184.59/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Country of Origin: US
Current / Amperage Rating: 30 A
Dimensions: 3.06 in x 3.06 in x 2.27 in
Each - Height: 2.678 in
Each - Length: 3.798 in
Each - Width: 3.238 in
Height: 2.27 in
Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Length: 3.06 in
Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Show Add To ProjectList: Yes
Amperage Rating: 30 A
Application: Heavy Duty Industrial
Dielectric Strength: Withstands 2,000V minimum
Environmental Conditions: Indoor Dry Unless Protected By Additional Means
NEMA Rating: L23-30R
Number of Poles: 4-Pole
Number of Wires: 5-Wire
Phase: 3 Phase WYE
Size: 3.06 in x 3.06 in x 2.27 in
Special Features: Standard
Standard: Certified to CSA C22.2 No.42; Fed.Spec. W-C-596; Listed to UL 498
Type: Flanged Receptacle
Voltage Rating: 3 Phase WYE 347/600 VAC
Wattage: 18000 W
Wire Size: #16 AWG to #8 AWG
Voltage Rating Description: 3 Phase WYE 347/600 VAC
Width: 3.06 in

UPC	78358503976
Item Long Description	Locking Devices, Twist-Lock, Industrial, Flush Receptacle, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, L23-30R, Screw Terminal, Black
GTiN	00783585039763
Length	3.06 in
Width	3.06 in
Size	3.06 in x 3.06 in x 2.27 in
Color	White
Voltage	600 Volt
Type	Single
Material	Thermoplastic
Conductor Size	12-8 AWG
Applications	Heavy Duty Industrial
Mounting Type	Screw
Height	2.27 in
Weight	0.4 lb
Wire Size	16 AWG-8 AWG
Wattage	18000 Watt
Family Brand Name	Hubbell Wiring Device Kellems
TC Connection	Screw Terminal
Current	30 A
Number of Poles	4 Pole
Number of Wires	5
Sub Brand	Twist-Lock
Standard	CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength	Withstands 2,000V minimum
Environmental Conditions	Indoor Dry Unless Protected By Additional Means
