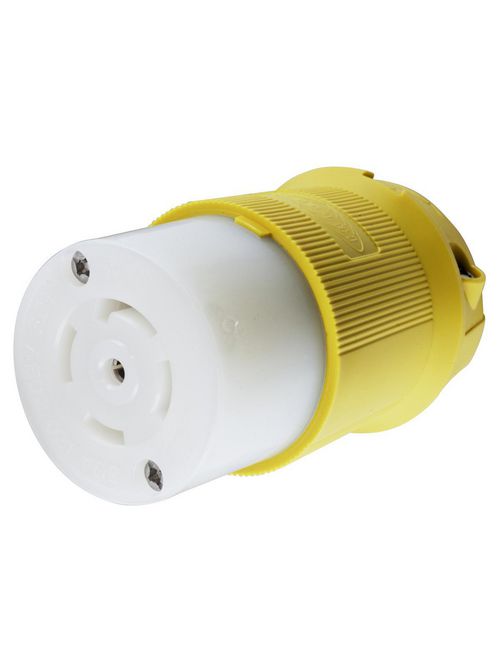

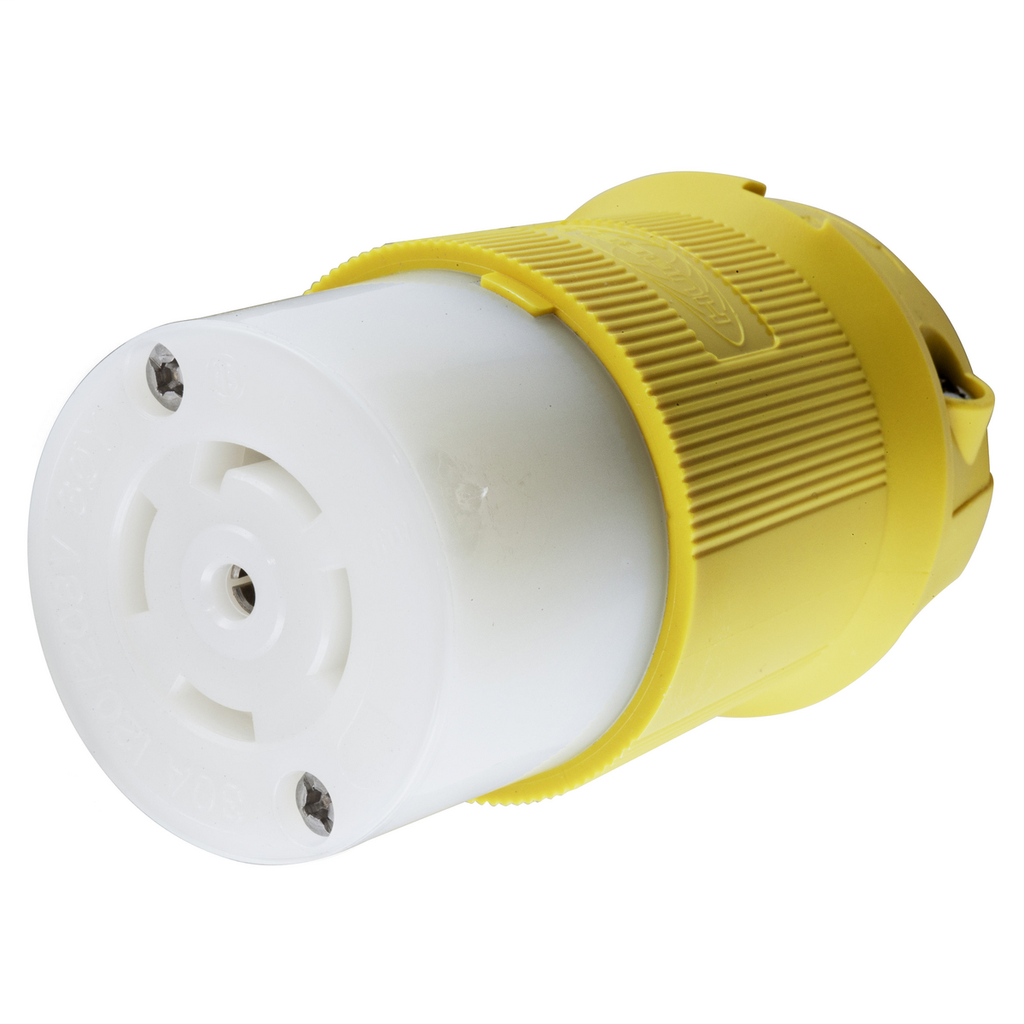

Hubbell Wiring Devices HBL28CM13 30 Amp 120/208 VAC 4-Pole 5-Wire NEMA L21-30R Yellow Locking Connector Body
Product image thumbnail 0
Product image thumbnail 1
$165.80/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL28CM13
North Coast Part # 64811

Features

  • Nickel plated blades and stainless steel screws provide maximum corrosion resistance
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants

Specifications

General

  • Application: Heavy Duty Industrial/Marine
  • Color: Yellow
  • Cord Range: 0.350"-1.150" (9-29)
  • Environmental Conditions: Corrosion Resistant
  • Insulation: Insulated Body
  • Item Type: 30A Corrosion Resistant Insulgrip® Connector
  • Listings: UL 498 | Fed.Spec. W-C-596 | CSA C22.2 No.42
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 4-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical-Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 | Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum -40°C (w/o impact)
  • UPC: 783585039787

Dimensions

  • Dimensions: 2.33 in x 2.33 in x 3.86 in
  • Display Size: Standard
  • Height: 3.86 in
  • Length: 2.33 in
  • Weight: 0.35 lb
  • Width: 2.33 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: 3 Phase WYE
  • Voltage Rating: 120/208 VAC
  • Voltage Rating Description: 120/208 VAC

Conductor Related

  • Number Of Wires: 5-Wire Grounding
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L21-30R

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 78358503978
GTiN 00783585039787
Length 2.33 in
Width 2.33 in
Size 2.33 in x 2.33 in x 3.86 in
Color Yellow
Voltage 120/208 Volt
Type Standard, Corrosion-Resistant
Material Nylon
Number of Conductors 5-Wire Grounding
Applications Heavy Duty Industrial
Height 3.86 in
Weight 0.35 lb
Temperature Rating -40 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Pressure Screw Terminal
Current 30 A
Number of Poles 4 Pole
Number of Wires 5
Sub Brand Twist-Lock, Insulgrip
Conductor Size 12-8 AWG
Mounting Type Cord
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Connection Type Pressure Screw Terminal
Grounding Grounding
Environmental Conditions Corrosion Resistant
