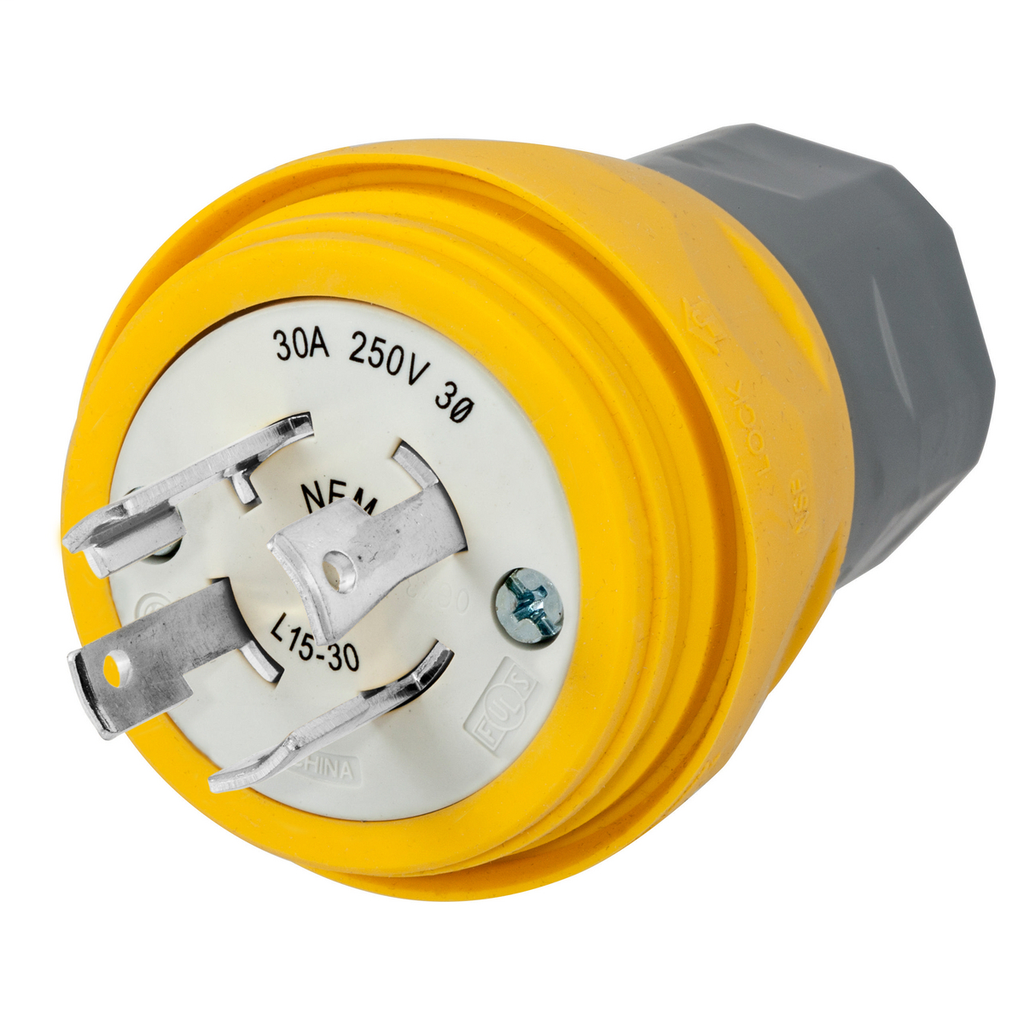

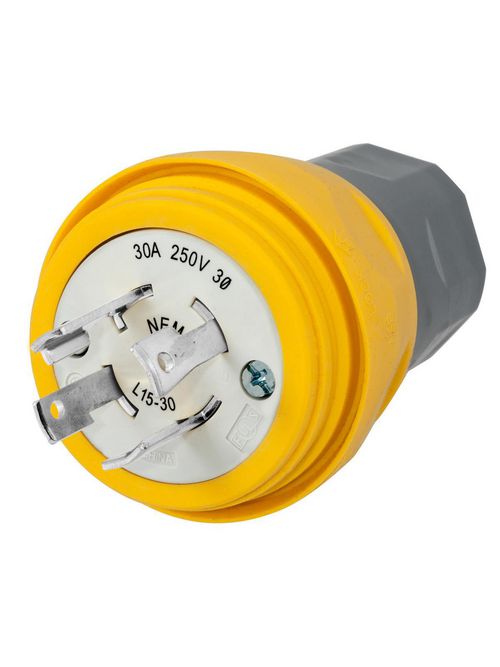

Hubbell Wiring Devices HBL28W75 30 Amp 250 Volt 3-Pole 4-Wire NEMA L15-30P Yellow Locking Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$99.61/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL28W75
North Coast Part # 1094158

Features

  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points

Specifications

General

  • Color: Yellow
  • Item Type: 30A Watertight Twist-Lock® Plug
  • Number Of Poles: 3-Pole
  • Performance: Electrical - Current Interrupting - Rated for current interruption per UL498 | Electrical - Dielectric Voltage - 2500V AC | Electrical - Max Working Voltage - As marked | Electrical - Temperature Rise - 30°C max per UL498 at rated current | Environmental - UV resistance - All exposed materials are UV stabilized | Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P | Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous | Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
  • Type: Plugs
  • UPC: 783585131719

Dimensions

  • Dimensions: 2.77 in x 2.77 in x 3.94 in
  • Height: 3.94 in
  • Length: 2.77 in
  • Width: 2.77 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Current / Amperage Rating: 30 A
  • Voltage Rating: 3 Phase 250 VAC
  • Voltage Rating Description: 3 Phase 250 VAC

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S

Certifications and Compliance

  • Industry Standard(s): Meets NEMA WD-1, WD-6 And ANSI Standards
  • Nema Rating: L15-30P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358513171
GTiN 00783585131719
Length 2.77 in
Width 2.77 in
Size Standard Sized
Color Yellow
Voltage 250 Volt
Type Industrial Grade
Material Thermoplastic Elastomer
Conductor Size 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S Min, 8/3 S, 8/4 S, 10/5 S Max AWG
Cord Type SJ, S
Applications Industrial/Commercial
Height 3.94 in
Wire Size 12-10 AWG
Temperature Rating -40 to 60 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Contact Material Nickel Plated Brass
TC Connection Screw Terminals
Dielectric Strength 2500 VAC
Current 30 A
Blade Dimensions 2.77 in dia x 3.94 in L
Cord Size 3/8 - 1 in
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Twist-Lock
Standard Meets NEMA WD-1,WD-6,ANSI Standards
