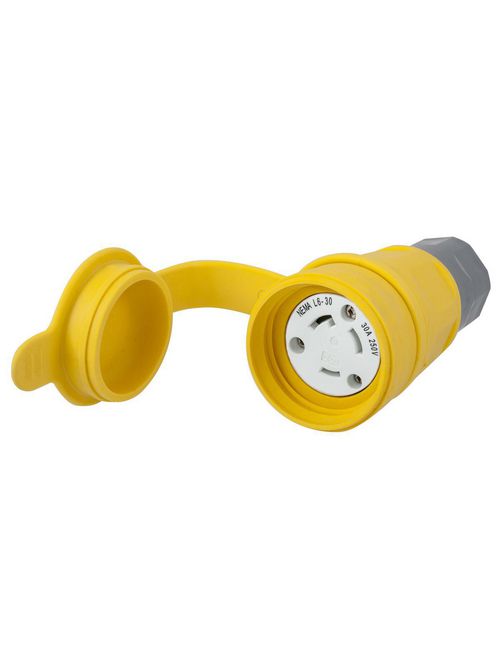

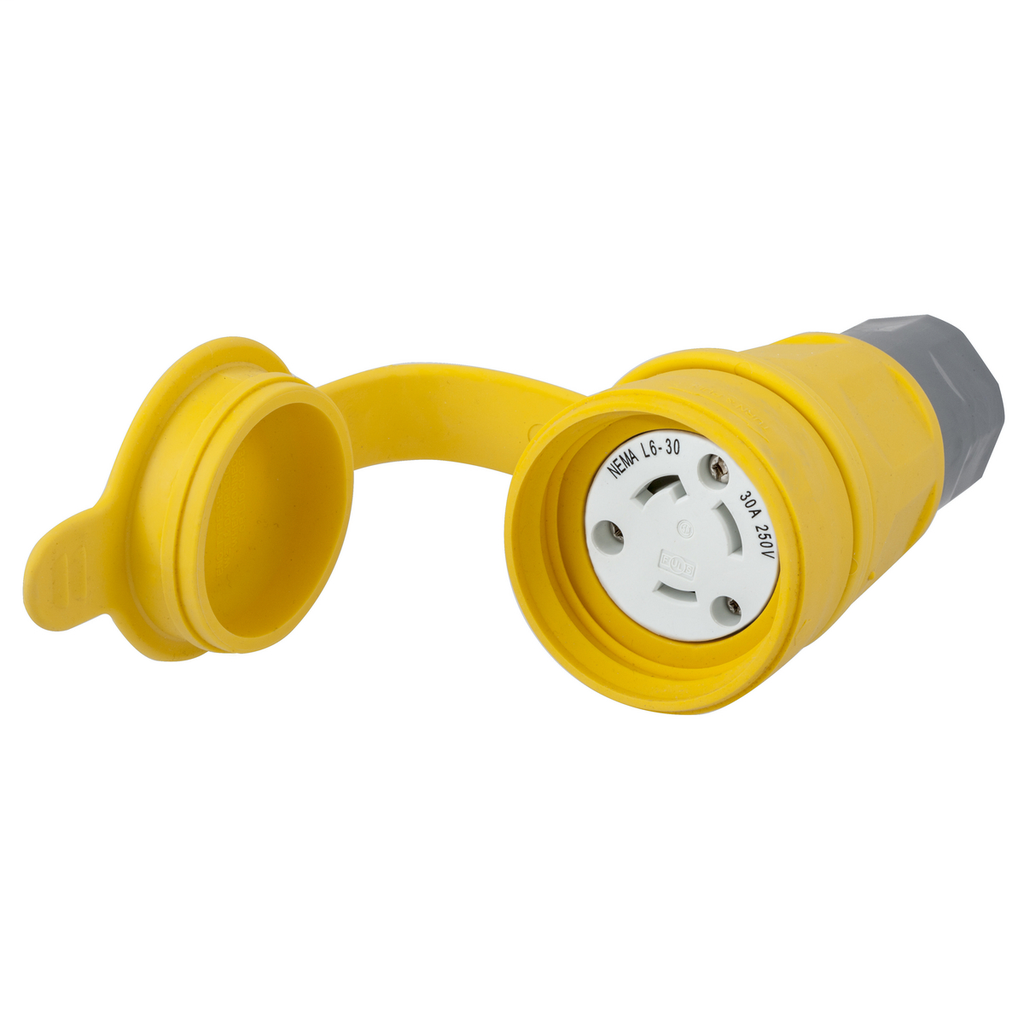

HCI HBL29W48 CONN, NEMA L6-30R, 30A
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$141.36/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL29W48
North Coast Part # 1098066

Features

  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 30 A
  • Dimensions: 2.77 in x 2.77 in x 5.67 in
  • Each - Height: 2.300 in
  • Each - Length: 13.500 in
  • Each - Width: 9.000 in
  • Height: 5.67 in
  • Industry Standard(s): Meets NEMA WD-1, WD-6 And ANSI Standards
  • Length: 2.77 in
  • Performance: Electrical - Current Interrupting - Rated for current interruption per UL498;Electrical - Dielectric Voltage - 2500V AC;Electrical - Max Working Voltage - As marked;Electrical - Temperature Rise - 30°C max per UL498 at rated current;Environmental - UV resistance - All exposed materials are UV stabilized;Environmental - Moisture Resistance - UL Listed 4, 4X, 12, 6, 6P;Environmental - Operating Temperatures - -40°C (without impact) to +60°C continuous;Mechanical - Cord Accommodation - 0.375"-1.000" (9.5-25.4)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Color: Yellow
  • NEMA Rating: L6-30R
  • Number of Poles: 2-Pole
  • Size: 2.77 in x 2.77 in x 5.67 in
  • Standard: Meets NEMA WD-1, WD-6 And ANSI Standards
  • Type: Connector Body
  • Voltage Rating: 250 V
  • Voltage Rating Description: 250 V
  • Width: 2.77 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358513152
Item Long Description Watertight Devices, Twist-Lock Connector, 30A, 250V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L6-30R, Yellow
GTiN 00783585131528
Length 5.67 in
Width 2.77 in
Size 2.77 in x 2.77 in x 5.67 in
Color Yellow
Voltage 250 Volt
Type Industrial Grade
Diameter 2.77 in
Material Thermoplastic Elastomer
Number of Conductors 3
Conductor Size 3/8 - 1 in
Applications Industrial/Commercial
Height 5.67 in
Connection Type Screw
Temperature Rating -40 to 60 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Number of Ports 2
Contact Material Nickel Plated Brass
TC Connection Terminal Screws
Current 30 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Standard ANSI Standards,Meets NEMA WD-1,WD-6
Environmental Conditions Water Tight
