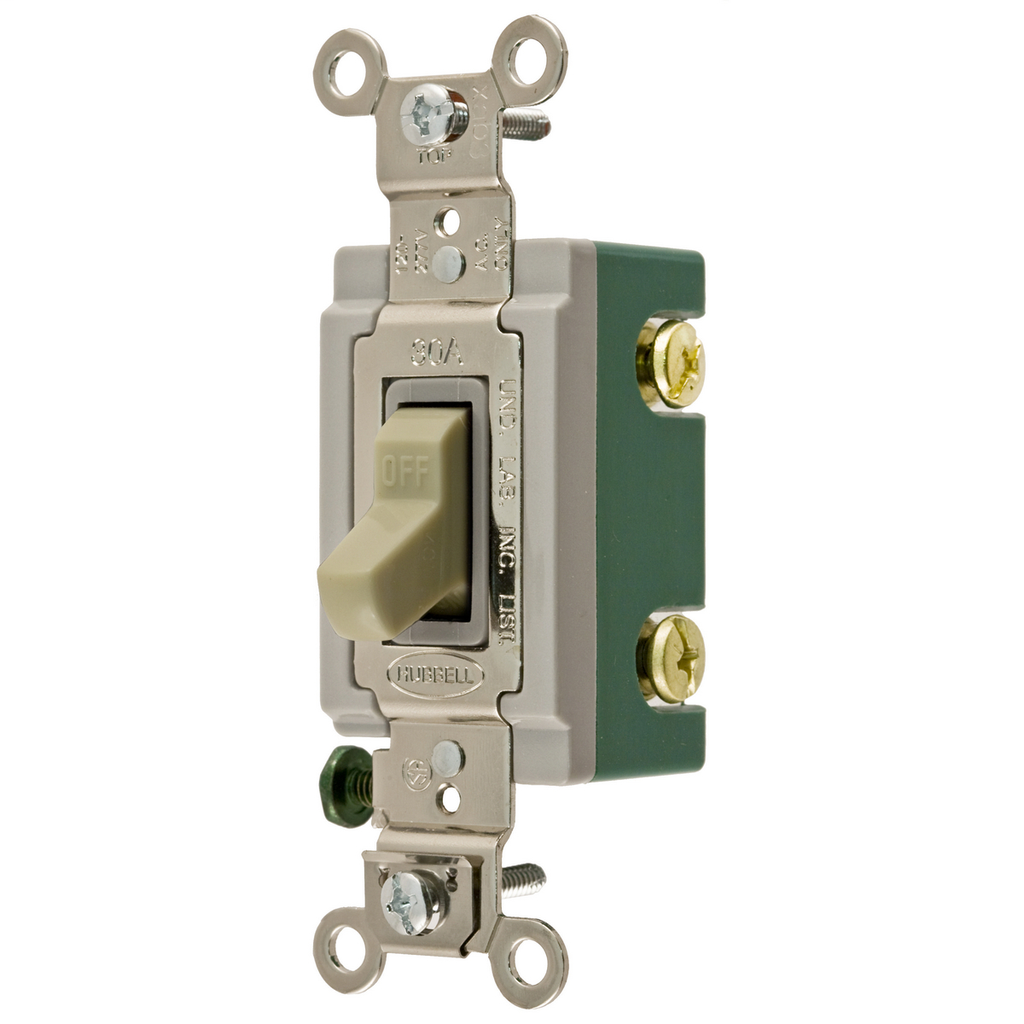

Hubbell Wiring Devices HBL3032I 30 Amp 120/277 VAC 2-Pole Ivory Toggle Switch

$65.70/ea

In Stock | 3 available at 3 locations

Adding...

Already a Customer? Log in to view your pricing

Features

Country of Origin: CN
Current / Amperage Rating: 30 A
Dimensions: 4.06 in x 1.31 in x 1.87 in
Each - Height: 1.660 in
Each - Length: 4.160 in
Each - Width: 1.910 in
Height: 1.87 in
Industry Standard(s): UL Listed
Length: 4.06 in
Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 30A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Temperature Rise - Max.: 30°C maximum at rated current
Amperage Rating: 30 A
Application: Back and Side Wired
Color: Ivory
Number of Poles: Double Pole
Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Size: 4.06 in x 1.31 in x 1.87 in
Standard: UL Listed
Type: Toggle
Voltage Rating: 120-277 VAC
Voltage Rating Description: 120-277 VAC
Width: 1.31 in

GTiN	00783585434582
Length	4.06 Inch
Width	1.31 in
Size	4.06 in x 1.31 in x 1.87 in
Color	Ivory
Operating Temperature	Maximum continuous 75C and minimum -40C without Impact
Voltage	120-277 Volt
Type	General Purpose, 2 Position, Standard, Extra Heavy Duty
Product Series	Extra Heavy Duty
Applications	Back and Side Wired
Height	1.66 Inch
Grade	Industrial
Weight	0.2 lb
Wattage	8310 Watt
Family Brand Name	Hubbell Wiring Device Kellems
TC Connection	Back and Side Wired
Actuator	Toggle
Contact Configuration	Two Position
Current	30 A
Contact Rating	Per UL 20
Number of Poles	2 Pole
Enclosure	None
Action	Positive Snap
Operating Cycles	50000
Sub Brand	AC Toggle Switches
Product UPC	78358543458
Standard	UL
Environmental Conditions	Indoor Dry unless protected by additional means
Country of Origin	China
