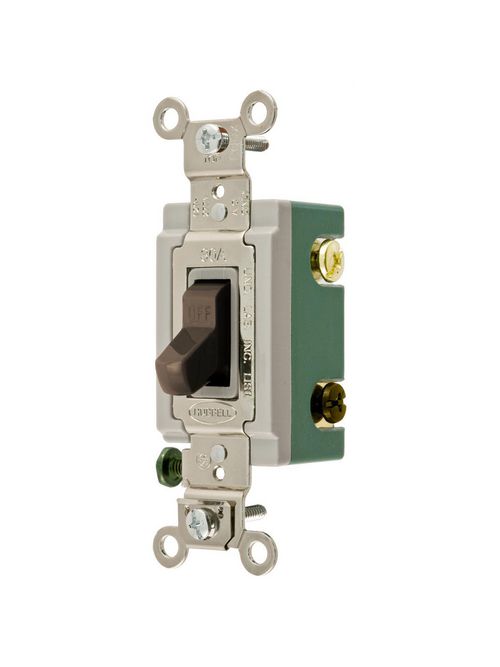

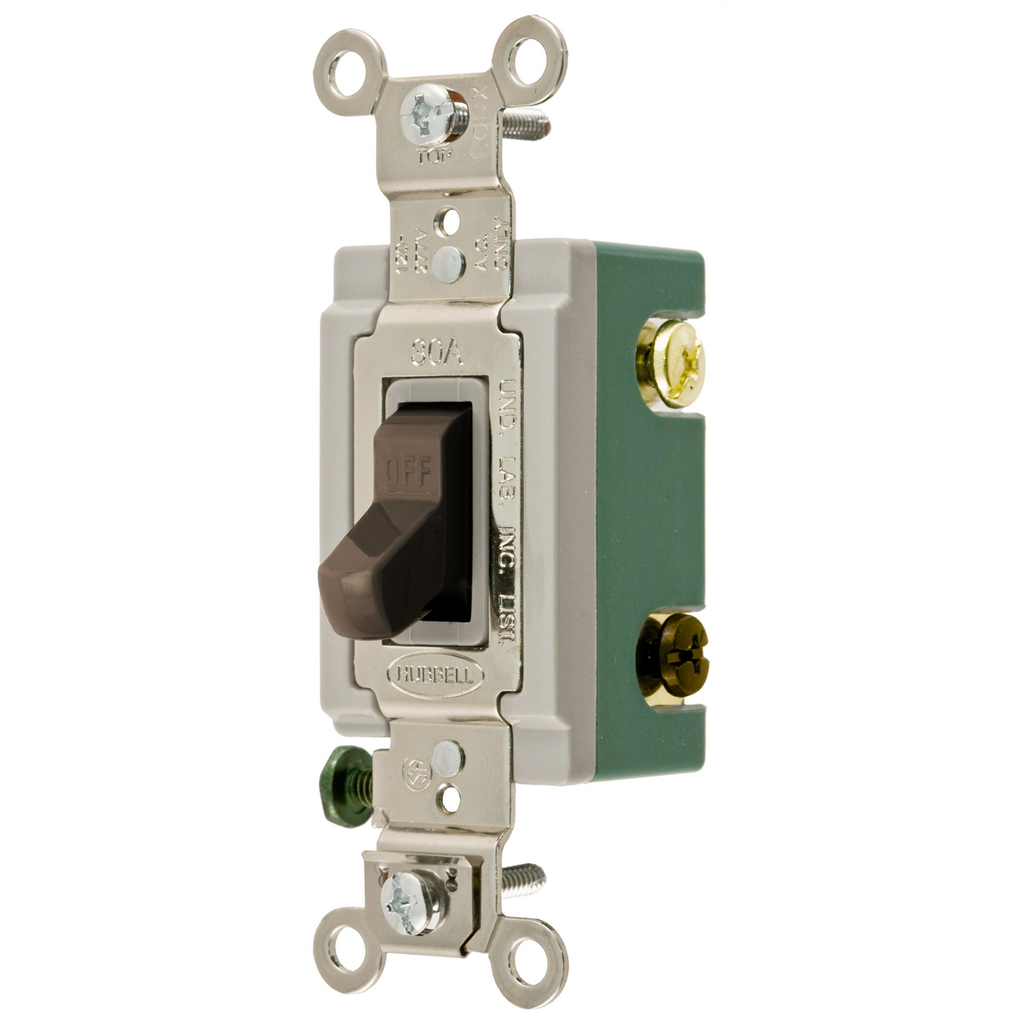

Hubbell Wiring Devices HBL3033 30 Amp 120/277 VAC 3-Way Brown Toggle Switch
$61.79/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL3033
North Coast Part # 13305

Features

  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring

Specifications

General

  • Action: SPDT
  • Application: Back and Side Wired
  • Color: Brown
  • Number Of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute | Electrical - Max. Continuous Current - 30A | Electrical - Max. Working Voltage - 277V AC | Electrical - Overload - Minimum 4.8 times rated current for 100 cycles | Electrical - Temperature Rise - 30°C maximum at rated current | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact | Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Series: Extra Heavy Duty
  • Style: Three Way
  • Type: Toggle
  • UPC: 783585434629

Dimensions

  • Dimensions: 4.06 in x 1.31 in x 1.87 in
  • Height: 1.87 in
  • Length: 4.06 in
  • Weight: 0.2 lb
  • Width: 1.31 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC

Conductor Related

  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 10

Overview

UPC 78358543462
GTiN 00783585434629
Length 4.06 in
Width 1.31 in
Size Standard Sized
Color Brown
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage 120-277 Volt
Type General Purpose, 2-Position, 3-Way, Extra Heavy Duty, Standard
Product Series Extra Heavy Duty
Applications Extra Heavy Duty Industrial
Height 1.87 in
Grade Industrial
Weight 0.2 lb
Wattage 8,310 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired
Actuator Toggle
Contact Configuration Two Position
Current 30 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Action Positive Snap
Operating Cycles 50000
Sub Brand AC Toggle Switches
Standard UL
