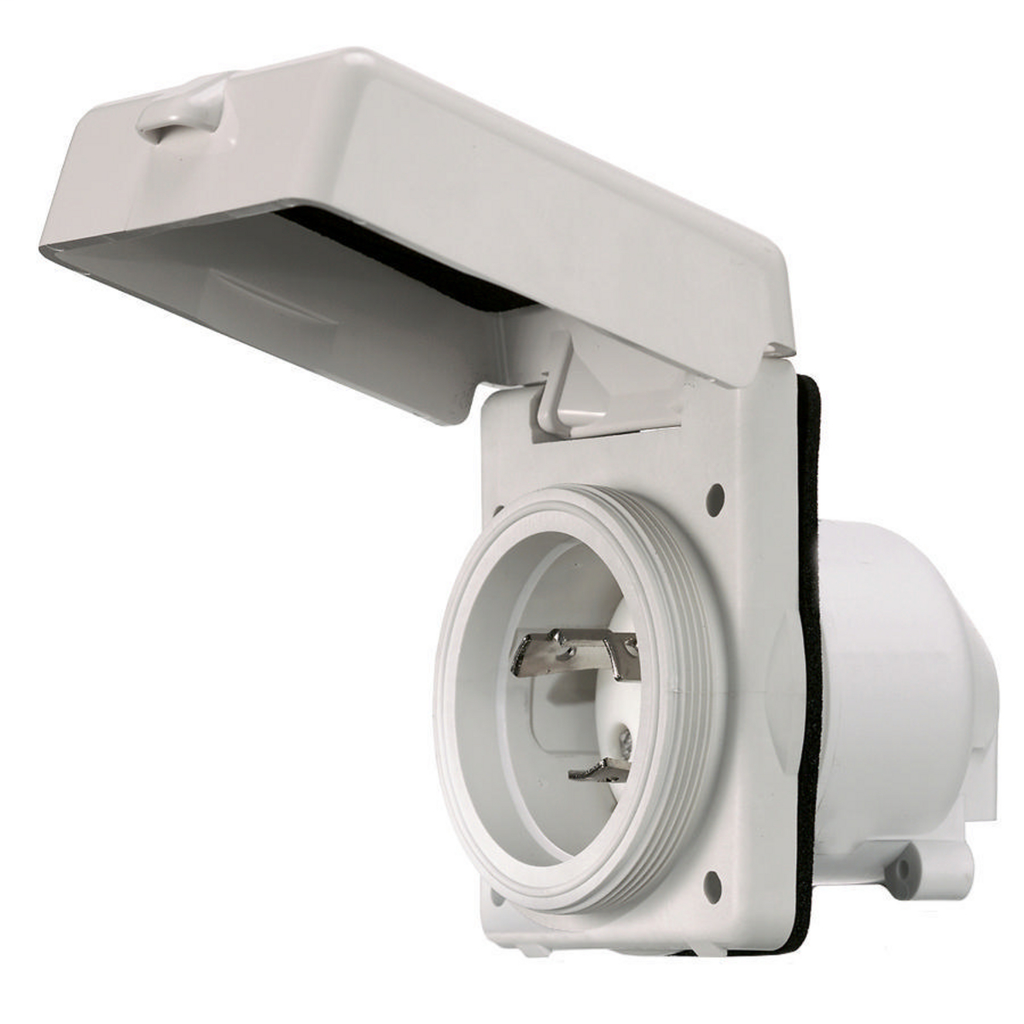

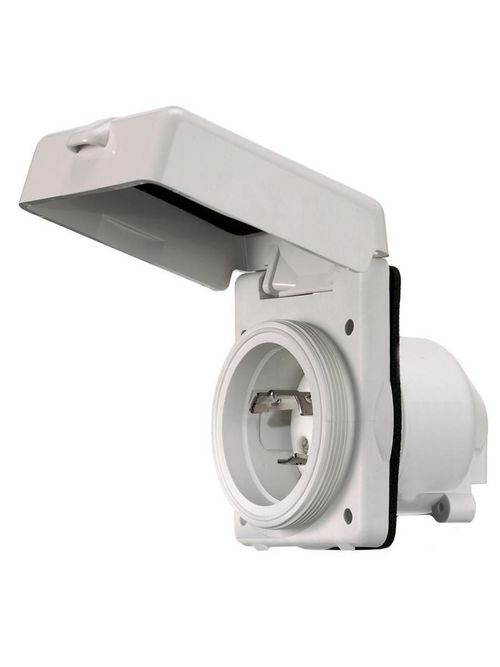

HWDK HBL303NM MARINE HULL INLET, 30
$108.53/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL303NM
North Coast Part # 161857

Features

  • Self-closing Cover
  • Corrossion Resistant Base and Cover
  • Threaded Base for making a watertight seal

Specifications

General

  • Application: Marine Wiring Devices
  • Color: White
  • Environmental Conditions: Watertight
  • Insulation: Insulated Body
  • Item Type: Hull Mount Single
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Moisture Resistance - IP56 Suitability
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
  • UPC: 783585040530

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 3000V Minimum in
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 VAC
  • Wattage: 3750

Conductor Related

  • Number Of Wires: 3-Wire Grounding
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: L5-30P

Logistics

  • Carton Quantity: 5

Overview

UPC 78358504053
GTiN 00783585040530
Length 4.800 in
Width 4.200 in
Size Standard Sized Product
Color White
Voltage 125 Volt
Type Single, Standard
Material Thermoplastic
Applications Marine Wiring Devices
Height 3.700 in
Wire Size 12-10 AWG
Wattage 3,750 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection Pressure Screw Terminals
Current 30 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Conductor Size 12-10 AWG
Mounting Type Screw, Hull
Standard UL
Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact
Dielectric Strength Withstands 3000V Minimum in
Environmental Conditions Watertight
