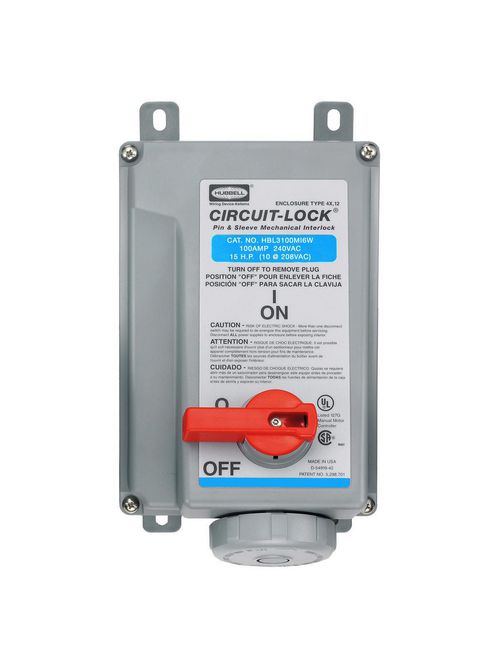

Product image thumbnail 0

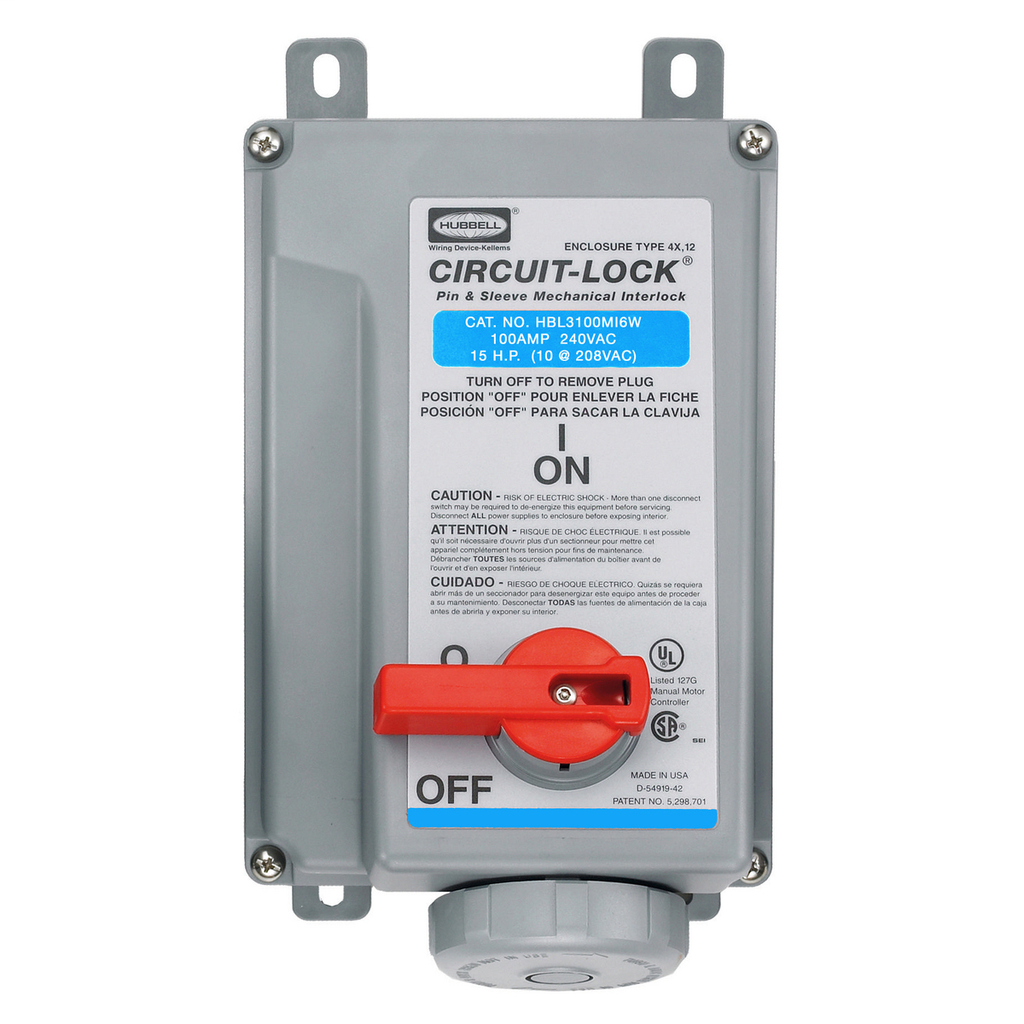

Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL3100MI6W
North Coast Part # 346823


  • Large gears enclosed in a gear box
  • Lockable handle to meet OSHA Lockout/Tagout regulations
  • Pre-wired IEC Pin and Sleeve receptacle



  • Application: High Ampacity Watertight Connections
  • Color: Blue
  • Environmental Conditions: Watertight
  • Item Type: Mechanically Interlocked Single
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage | Electrical - Dielectric Voltage - Withstands 3,000V AC Min | Electrical - Max. Working Voltage - 600V AC RMS | Environmental - Flammability - UL94-5VA and V-0 Classification | Environmental - Ingress Protection - IP67 Suitability | Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) | Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). | Environmental - Operating Temperature - Max. Continuous +75°C | Min. Continuous -40°C | Mechanical - Impact Resistance - In accordance with UL 746C | Mechanical - Mounting - External adjustable feet | Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount | Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
  • Series: Unfused Circuit-Lock
  • Style: Standard Service
  • Type: Mechanical Interlock
  • UPC: 783585405803


  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 100 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 100 A
  • Current Rating: 100 A
  • Phase: Single Phase
  • Voltage Rating: 240 VAC
  • Voltage Rating Description: 240 VAC
  • Wattage: 25000

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #3 AWG to #1/0 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: Non-NEMA


UPC 78358540580
GTiN 00783585405803
Length 15.200 in
Width 9.100 in
Size Standard
Color Blue
Voltage 240 Volt
Type Watertight, Unfused
Material Thermoplastic
Product Series Unfused Circuit,Lock
Applications High Ampacity Watertight Connections
Height 7.500 in
Wire Size 3-0 AWG
Wattage 25000 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Screw Terminals
Current 100 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand IEC 309 Pin and Sleeve Devices
Conductor Size 3-1/0 AWG
Mounting Type Screw
Standard UL
Environmental Conditions Watertight
