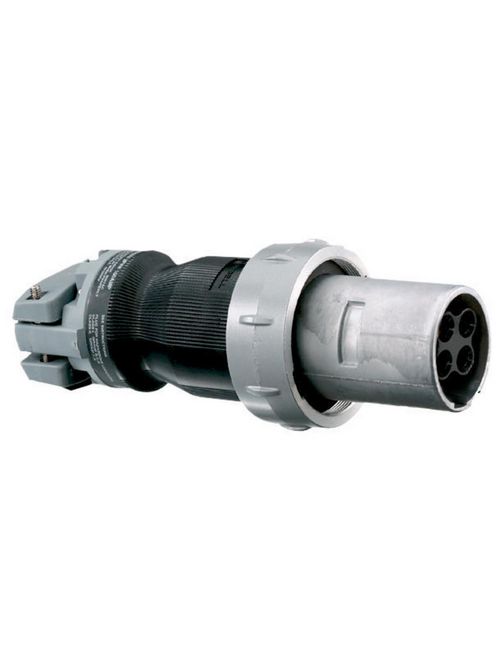

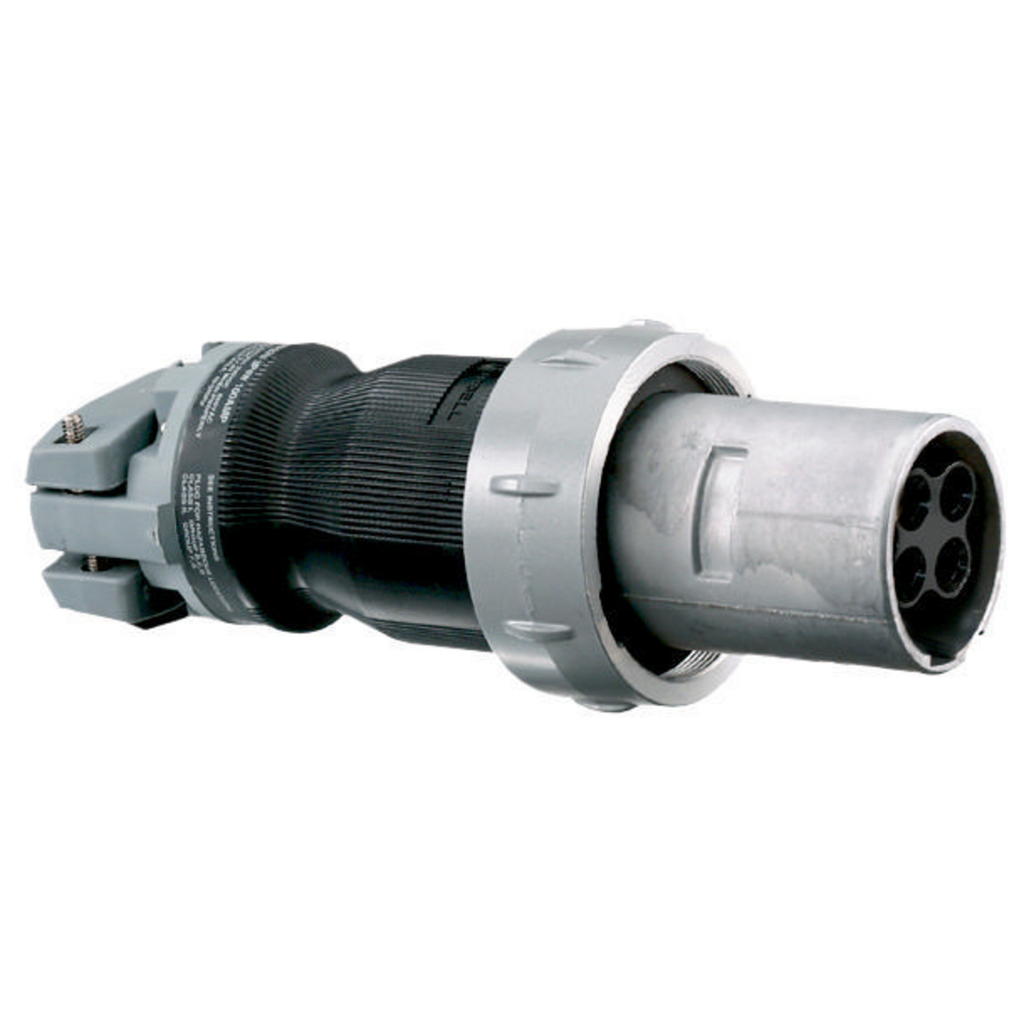

HCI HBL3100PS1WR PS, INS, PLUG, 2P3
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$621.13/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL3100PS1WR
North Coast Part # 266316

Features

  • Locking ring provides UL Type 4X watertight, dust-tight seal
  • Catalog number and rating visible while in use
  • All-Brass sleeve contacts provide reliable electrical contact
  • Watertight

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 100 A
  • Each - Height: 5.000 in
  • Each - Length: 11.750 in
  • Each - Width: 5.750 in
  • Industry Standard(s): CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 100 A
  • Application: Metallic with Nylon Shroud
  • Cord Type: All Portable
  • Environmental Conditions: Watertight
  • NEMA Rating: Non-NEMA
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Special Features: Watertight
  • Standard: CSA Certified to CSA Spec. C22.2 No. 159; UL Listed and CSA Certified Type 4X; UL Standard 1682,UL 50, and UL 1010
  • Type: Watertight Plug
  • Voltage Rating: 600 VAC/250 VDC
  • Wire Size: #4 AWG to #2 AWG
  • Voltage Rating Description: 600V AC/250V DC

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358501202
Item Long Description Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 100A 600V AC, 2-Pole 3- Wire Grounding Style 1, Terminal Screws, Gray and Black, Watertight-
GTiN 00783585012025
Length 11.750 in
Width 5.750 in
Size Standard Sized
Color Black/Gray
Voltage 250 Volt
Type Male, Reversed
Material Composite
Product Series UL 1686 Class 1 Insulgrip
Cord Type Portable
Applications High Ampacity Connections
Height 5.000 in
Wire Size 4-2 AWG
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pressure Terminal Screws
Current 100 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Pin and Sleeve Devices
Conductor Size 4-2 AWG
Mounting Type Cord
Standard CSA,CSA Spec. C22.2 No. 159,Type 4X,UL,UL 1010,UL 50,UL Standard 1682
Grounding Grounding Style 1
Environmental Conditions Watertight
