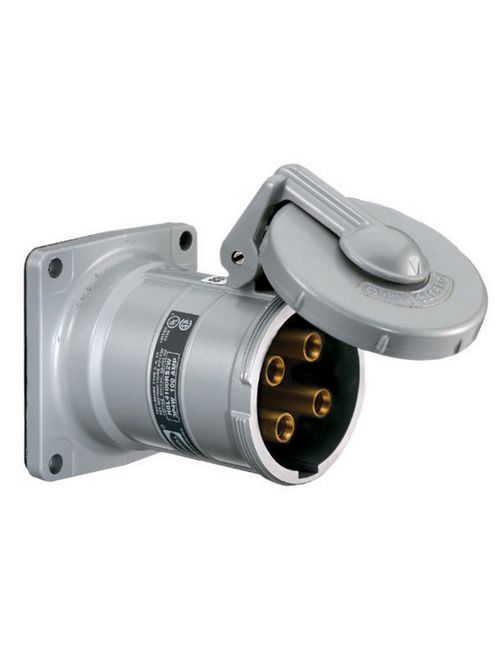

HCI HBL3100RS1WR PS, INS, RECP, 2P3

Features

• Watertight neoprene sealing glands for reliable seal
• Spring-Loaded, gasketed cover for dust-tight seal
• Pin chamber confines arcing within the interior chamber

Specifications

General

• Application: Metallic with Nylon Shroud
• Environmental Conditions: Watertight
• Item Type: Single Flanged-Reversed
• Material: Thermoplastic
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC | Electrical - Max. Working Voltage - 600V AC RMS | Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17 | Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94 | Environmental - Operating Temperatures - Max. Continuous 75°C | Min. -40°C w/o impact -25° with impact | Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682 | Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing | Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
• Series: UL 1686 Class 1 Insulgrip®
• Style: Reversed Service,Style 1 Grounding
• Type: Watertight Receptacle
• UPC: 783585012049

Dimensions

• Display Size: Standard Sized Product

Electrical Ratings

• Amperage Rating: 100 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 100 A
• Current Rating: 100 A
• Phase: Single Phase
• Voltage Rating: 600 VAC/250 VDC
• Voltage Rating Description: 600V AC/250V DC
• Wattage: 60000

Conductor Related

• Number Of Wires: 3-Wire
• Wire Size: #3 AWG to #1/0 AWG

Certifications and Compliance

• Industry Standard(s): CSA Certified to CSA Spec. C22.2 No. 182.1 | UL Listed and CSA Certified Type 4X | UL Standard 1682
• Nema Rating: Non-NEMA
